Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

17 part groups · 3 illustrations

Illustrations

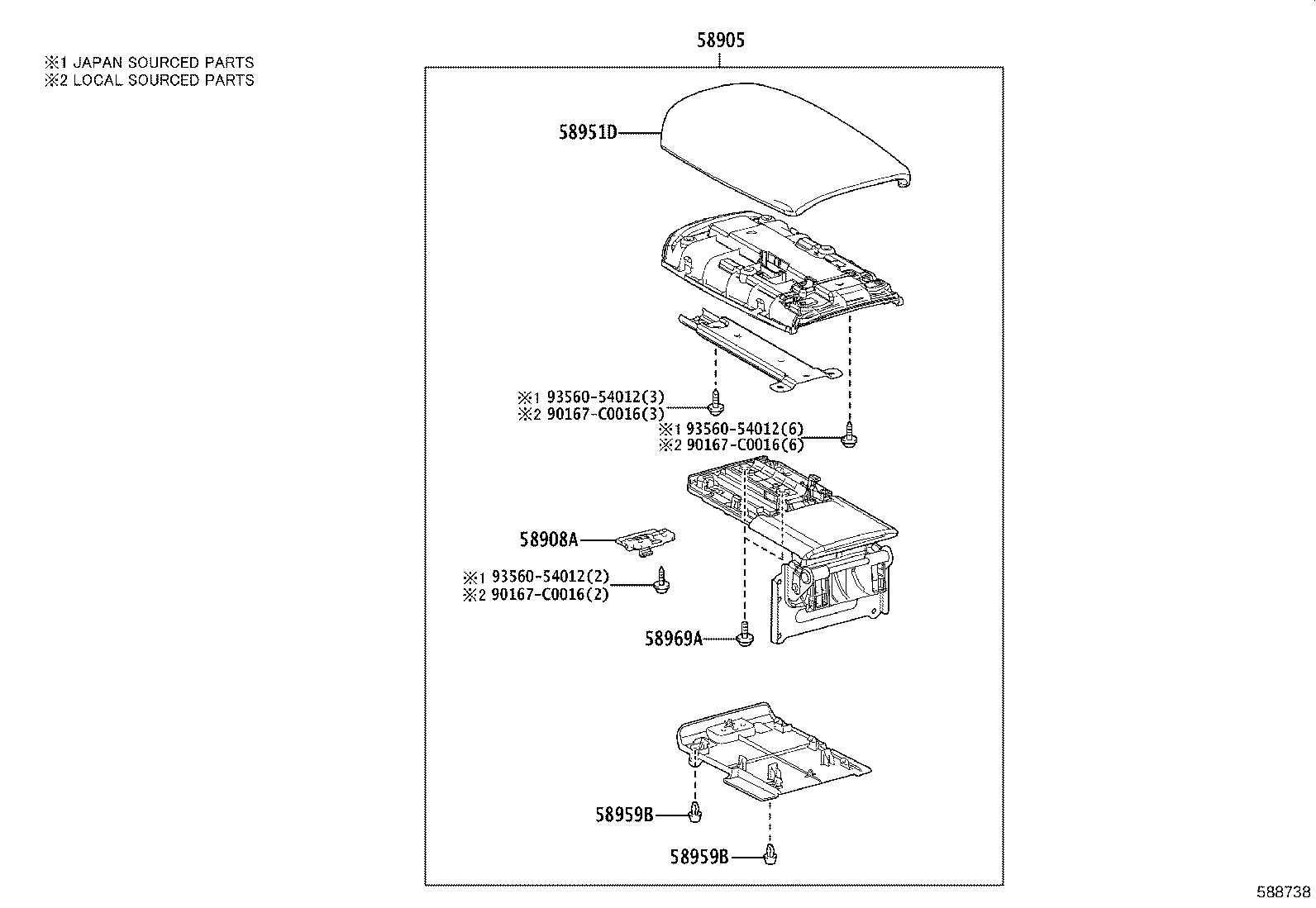

Figure 587888C 587888C 2021-07 → — Figure 588738 588738 2021-07 → — Figure 588739 588739 2021-07 → —

Part groups

PNCDescription
55620F Holder Assy, Console Box Cup
55626A Retainer, Instrument Panel Under Tray Wall
58815C Carpet, Console Box
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58822A Panel, Console, Upper Rear
58827A Garnish, Console Box Pocket
58831A Garnish, Console Upper Panel, Front
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58911G Panel, Box, NO.1
58923A Panel, Console Rear End
58951D Door, Console Compartment, Outer
58959B Cushion, Console Compartment Door
58969A Retainer, Console Compartment Door Stopper
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
