Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 3 illustrations

Illustrations

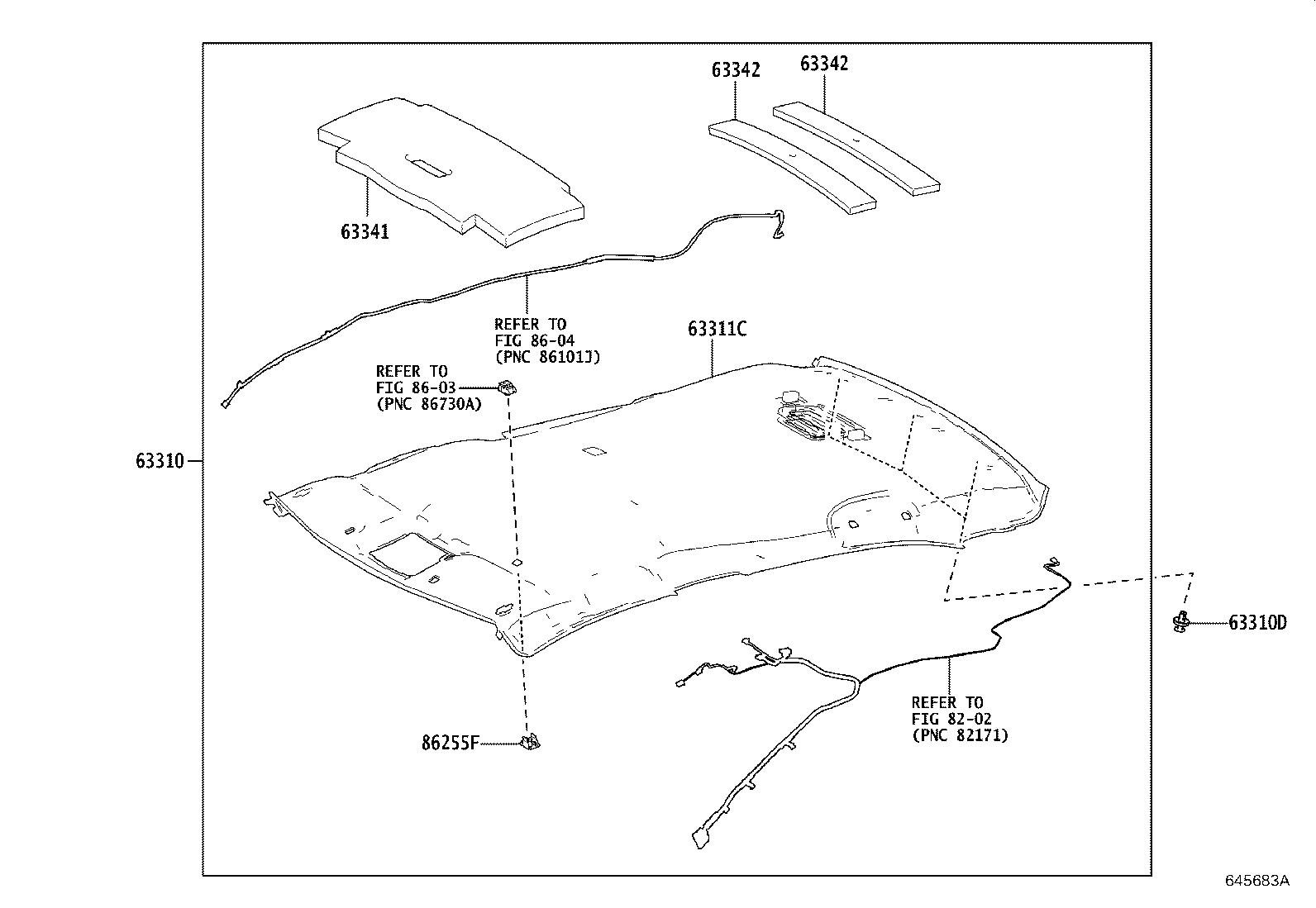

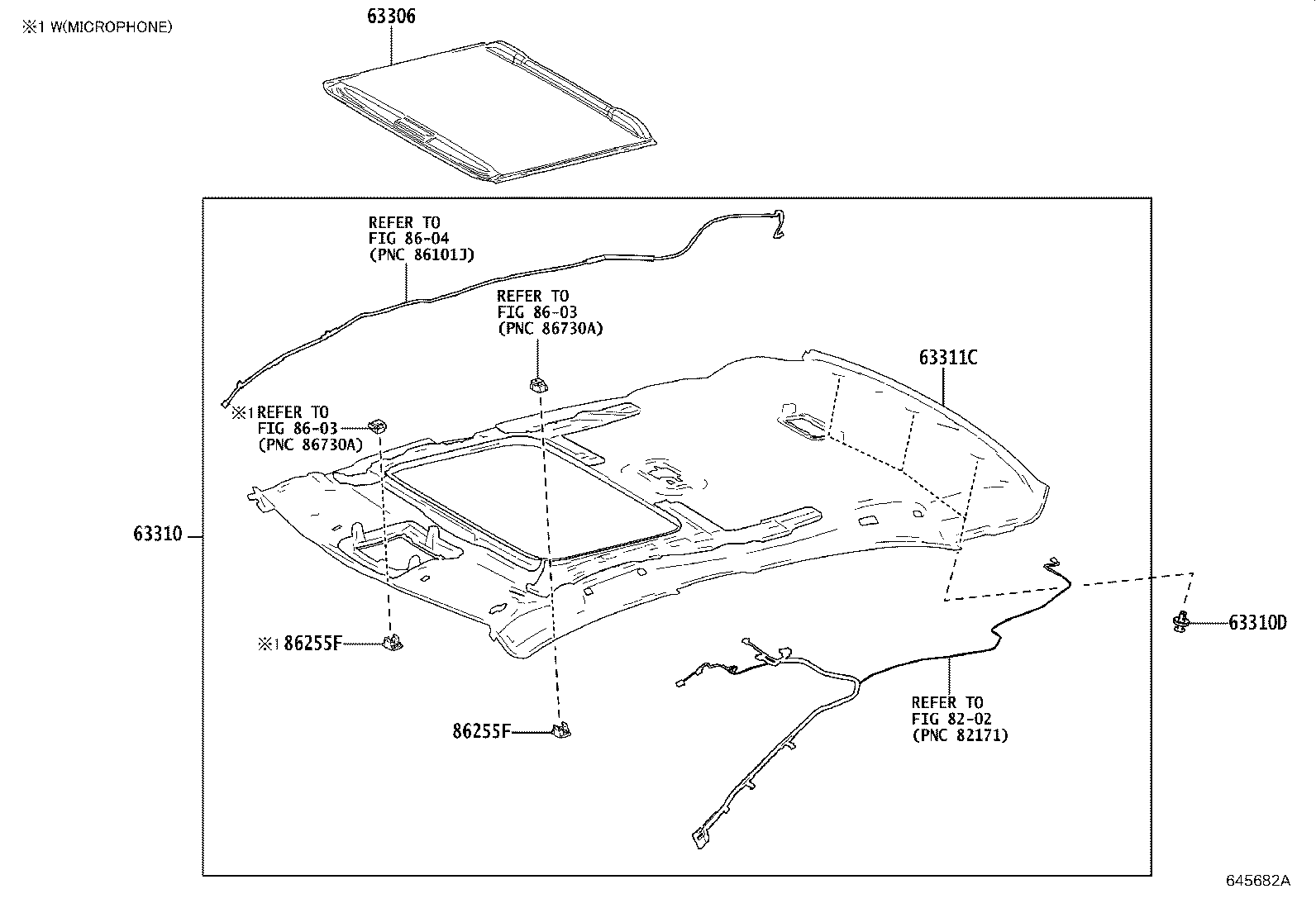

Figure 645112A 645112A 2021-07 → 2022-07 Figure 645683A 645683A 2022-07 → — Figure 645682A 645682A 2022-07 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311C Headlining, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
