Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

5 part groups · 2 illustrations

Illustrations

745689 2021-07 → —

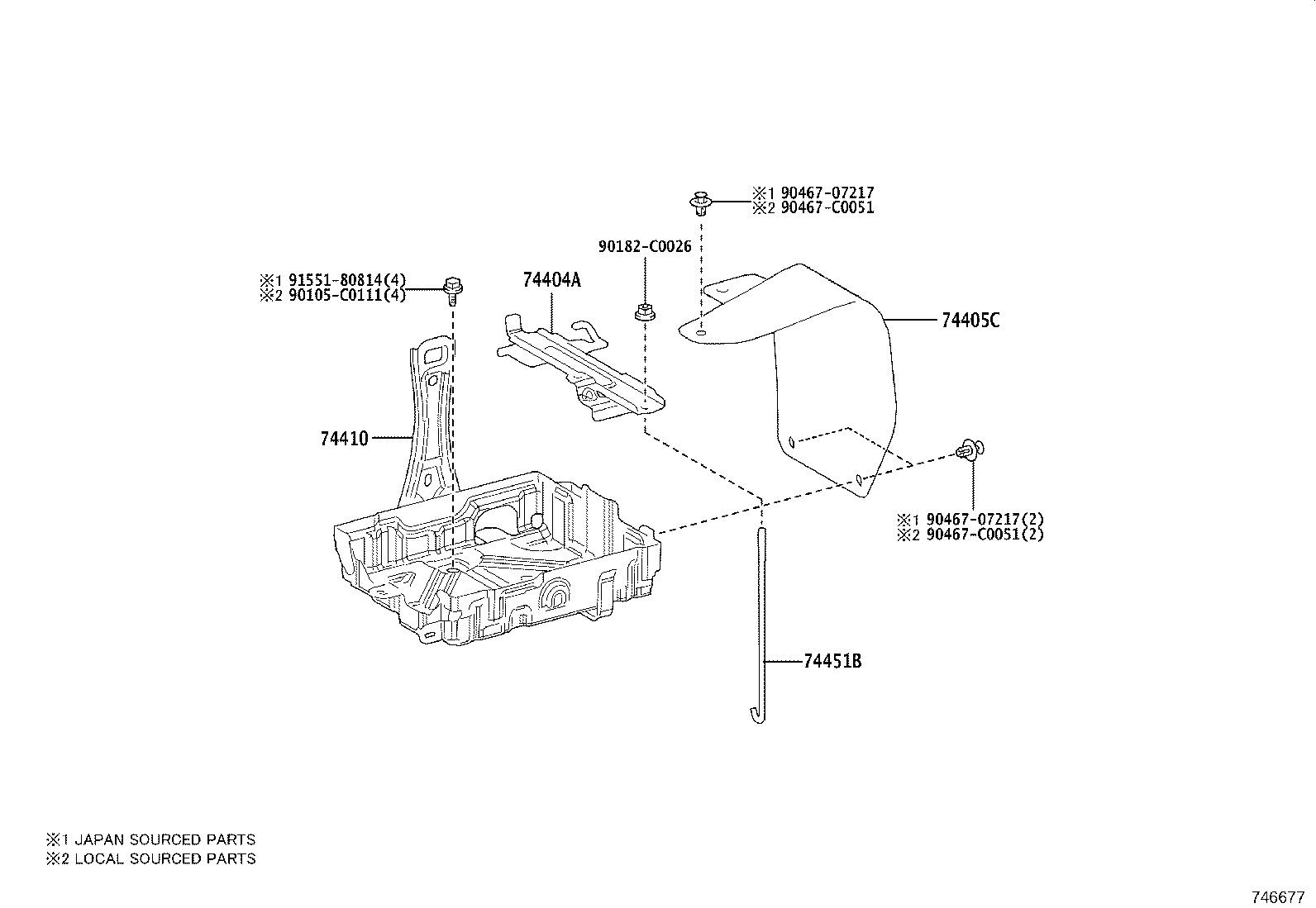

746677 2023-07 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74405	Clamp Sub-assy, Battery, NO.2
74405C	Cover Sub-assy,Battery
74410	Carrier Assy, Battery
74451B	Bolt, Battery Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
