Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

12 part groups · 2 illustrations

Illustrations

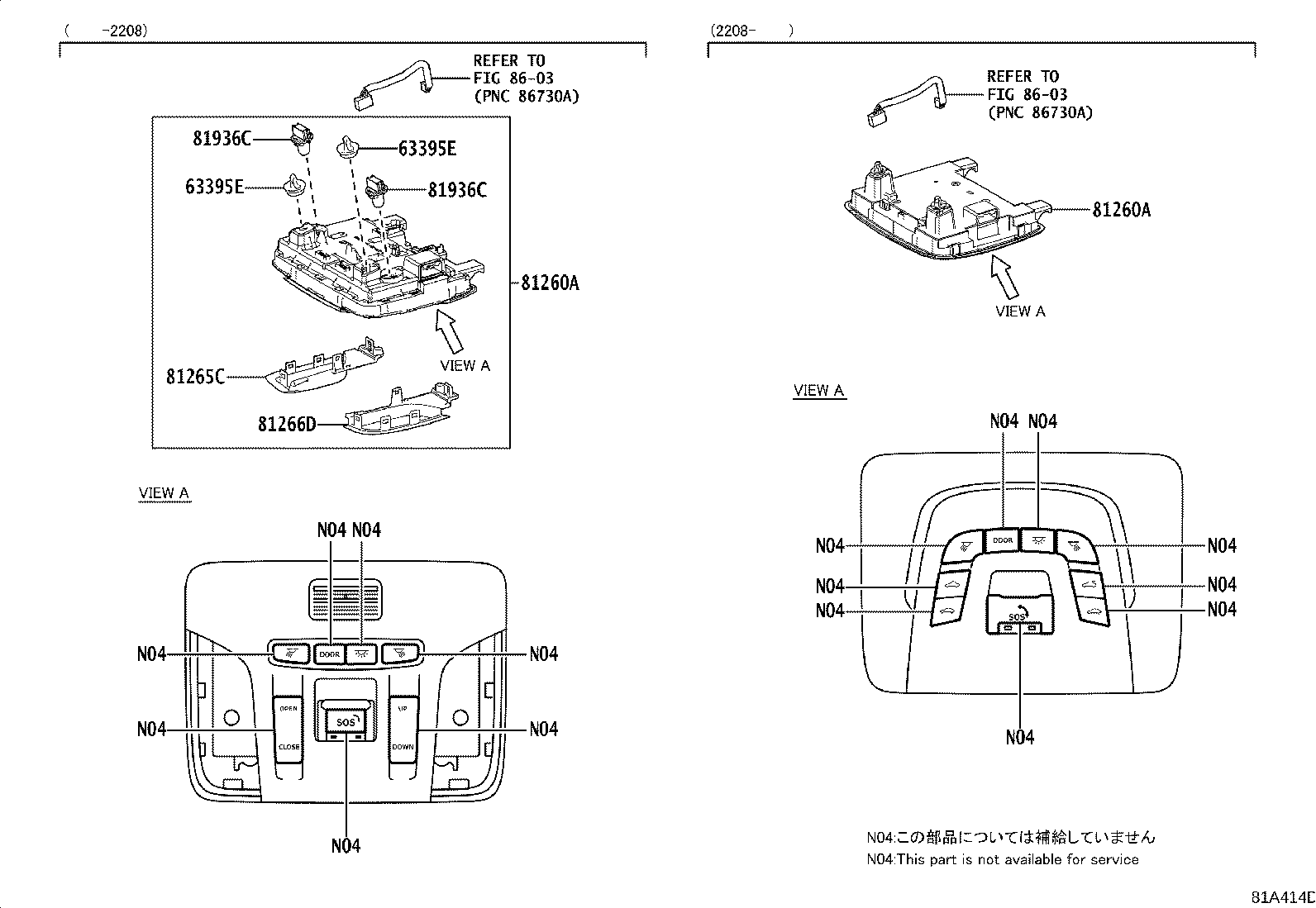

Figure 81A413A 81A413A 2021-07 → — Figure 81A414D 81A414D 2021-07 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81260A Lamp Assy, Map
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81360T Lamp Assy, Spot
81360U Bulb, Spot Lamp
813A0 Lamp Assy, Instrument Panel
81936C Bulb Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
