Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 2 illustrations

Illustrations

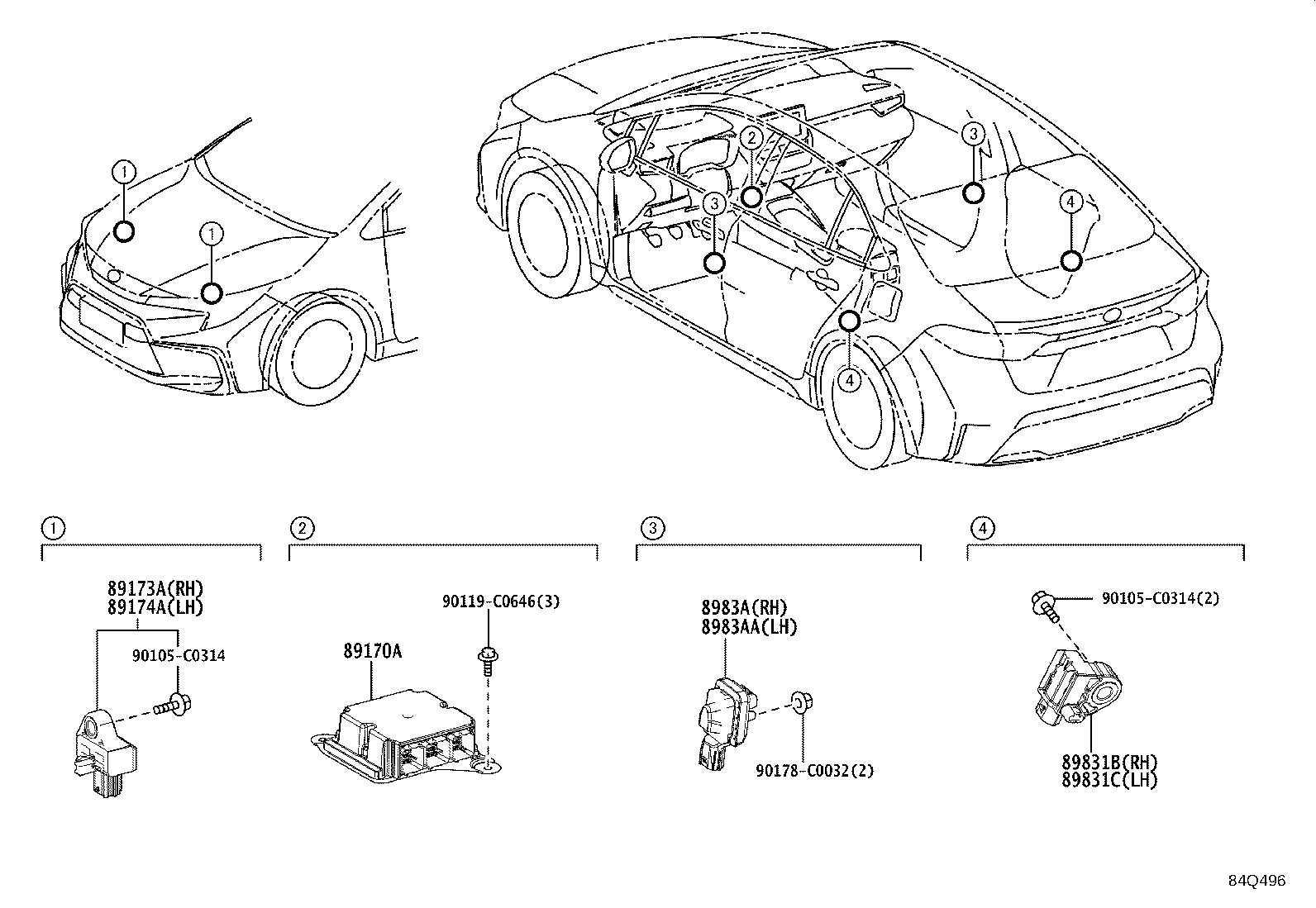

Figure 84N252A 84N252A 2021-07 → 2023-04 Figure 84Q496 84Q496 2023-04 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89831B Sensor, Side Airbag, RH, NO.2
89831C Sensor, Side Airbag, LH, NO.2
8983A Sensor, Side Airbag Pressure, RH
8983AA Sensor, Side Airbag Pressure, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
