Toyota Levin
2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General
Supported model
Data version 2023-06

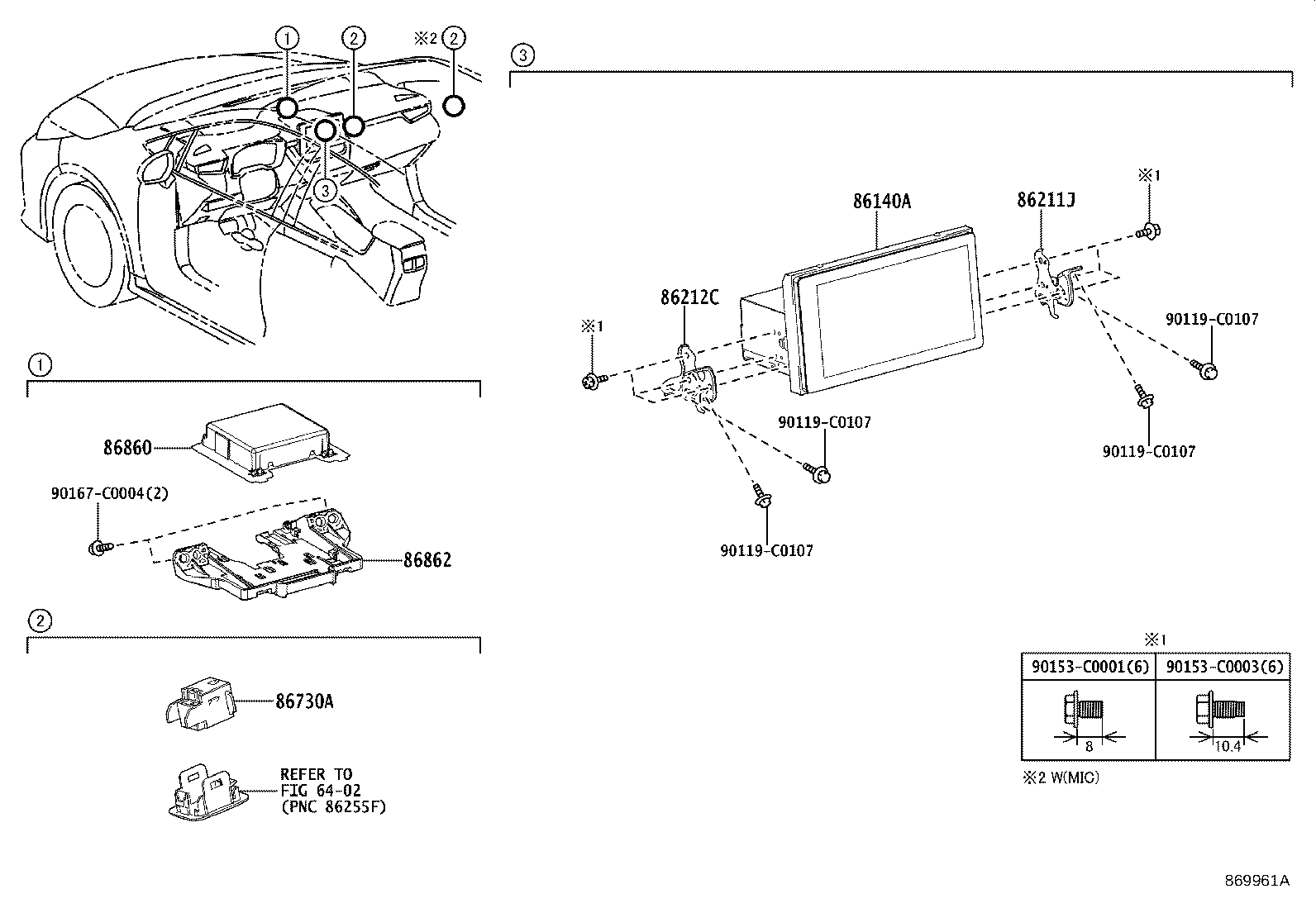

Navigation & Front Monitor Display
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86140A | Receiver Assy, Radio & Display |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86730A | Microphone Assy, Telephone |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
