Heating & Air Conditioning - Cooler Piping

25 part groups · 3 illustrations

Illustrations

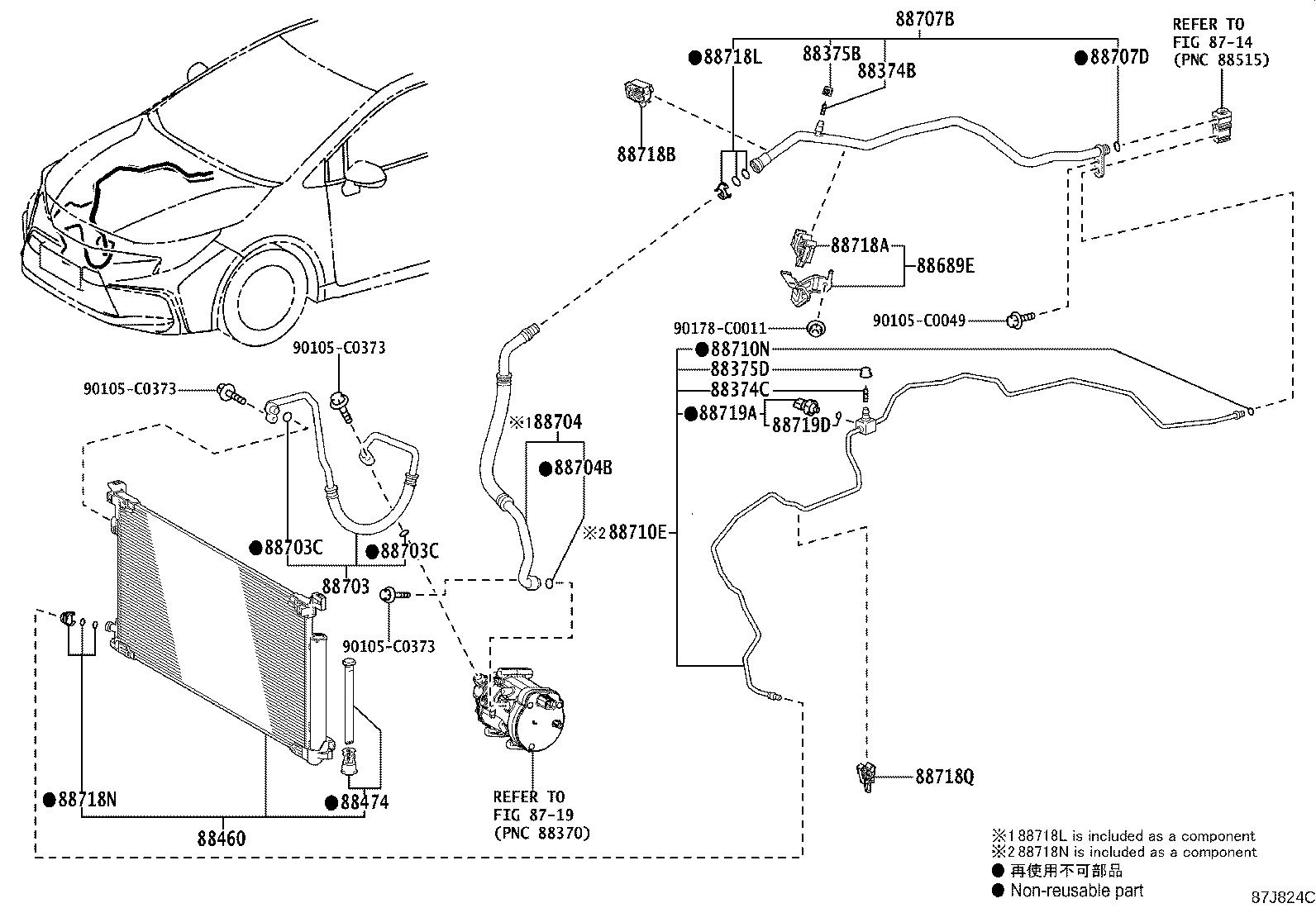

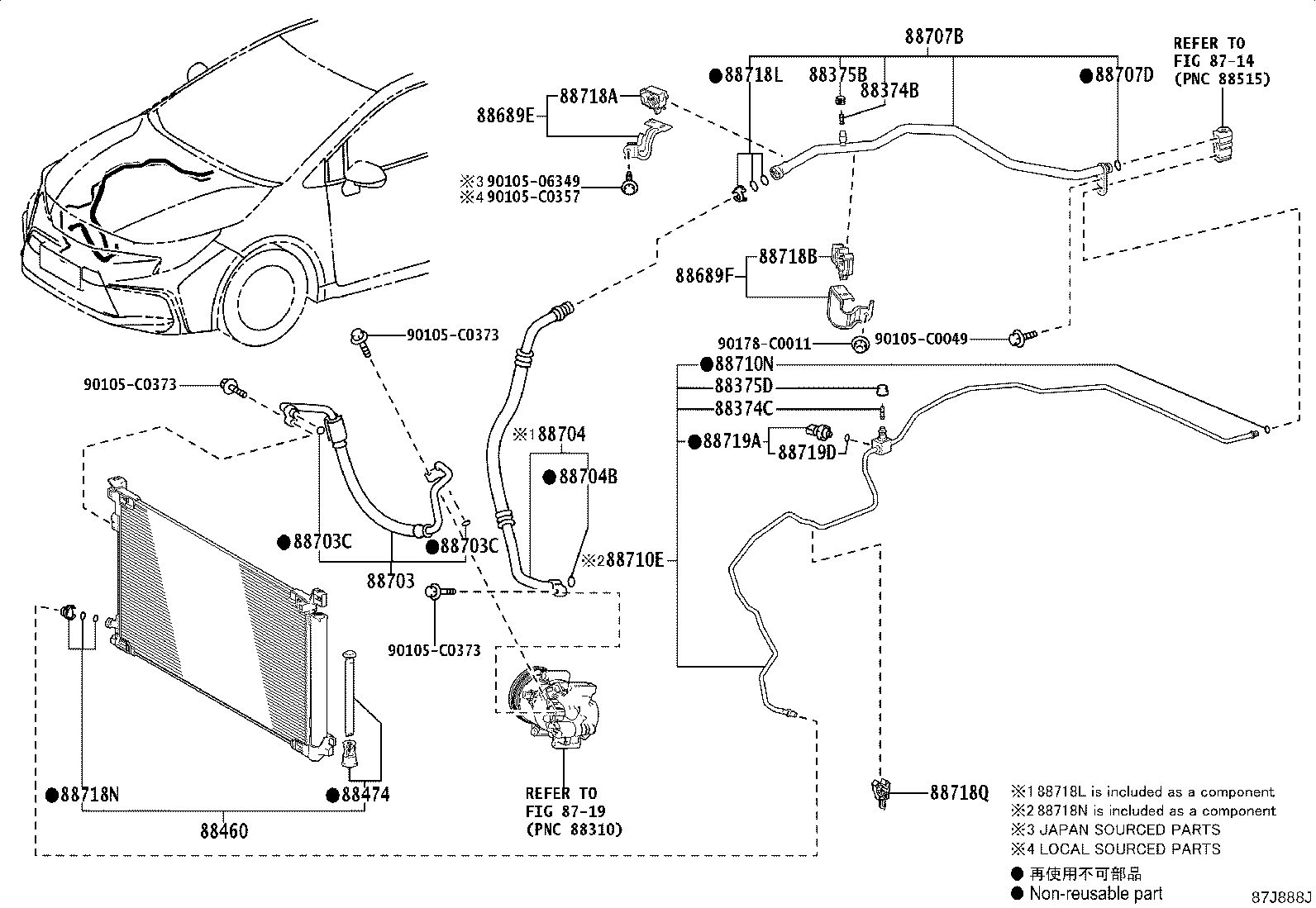

Figure 87L842B 87L842B 2021-07 → 2023-04 Figure 87J888J 87J888J 2023-04 → — Figure 87L824C 87L824C 2023-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88707B Tube Sub-assy, Suction, B
88707D Ring, O(FOR SUCTION TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718N Clamp, Piping
88718Q Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
