Toyota Levin

2021-07 → present · chassis MZEA12,MZEH16 · catalogue 16C310 · General

Supported model Data version 2023-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

3 part groups · 2 illustrations

Illustrations

Figure 87J886

87J886 2021-07 → —

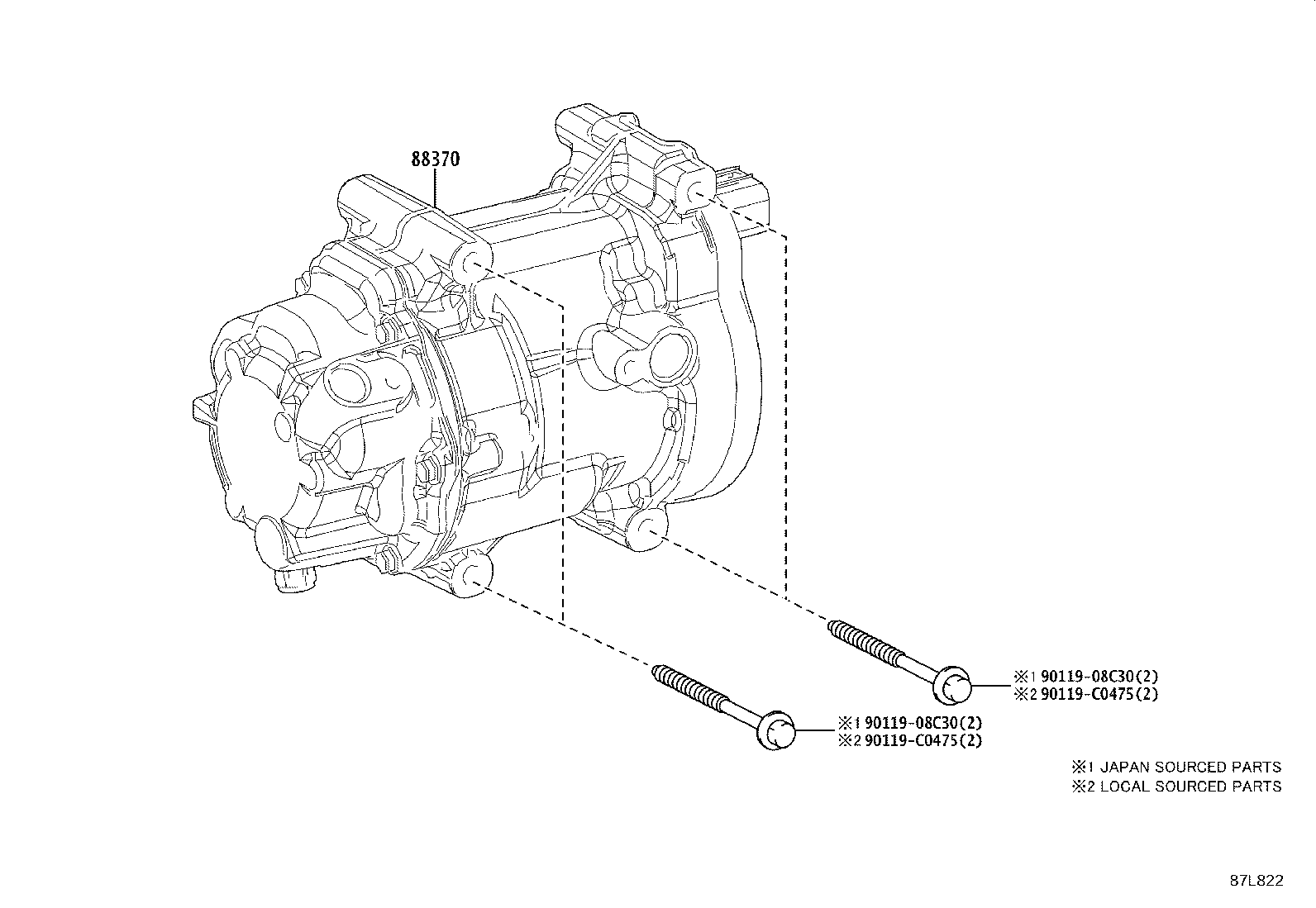

Figure 87L822

87L822 2023-07 → —

Part groups

PNC	Description
88310	Compressor Assy, W/Pulley
88370	Compressor Assy, W/Motor
88446D	Bolt, Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
