Toyota GR Corolla

2022-10 → present · chassis GZEA14 · catalogue 16E210 · General

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

9 part groups · 2 illustrations

Illustrations

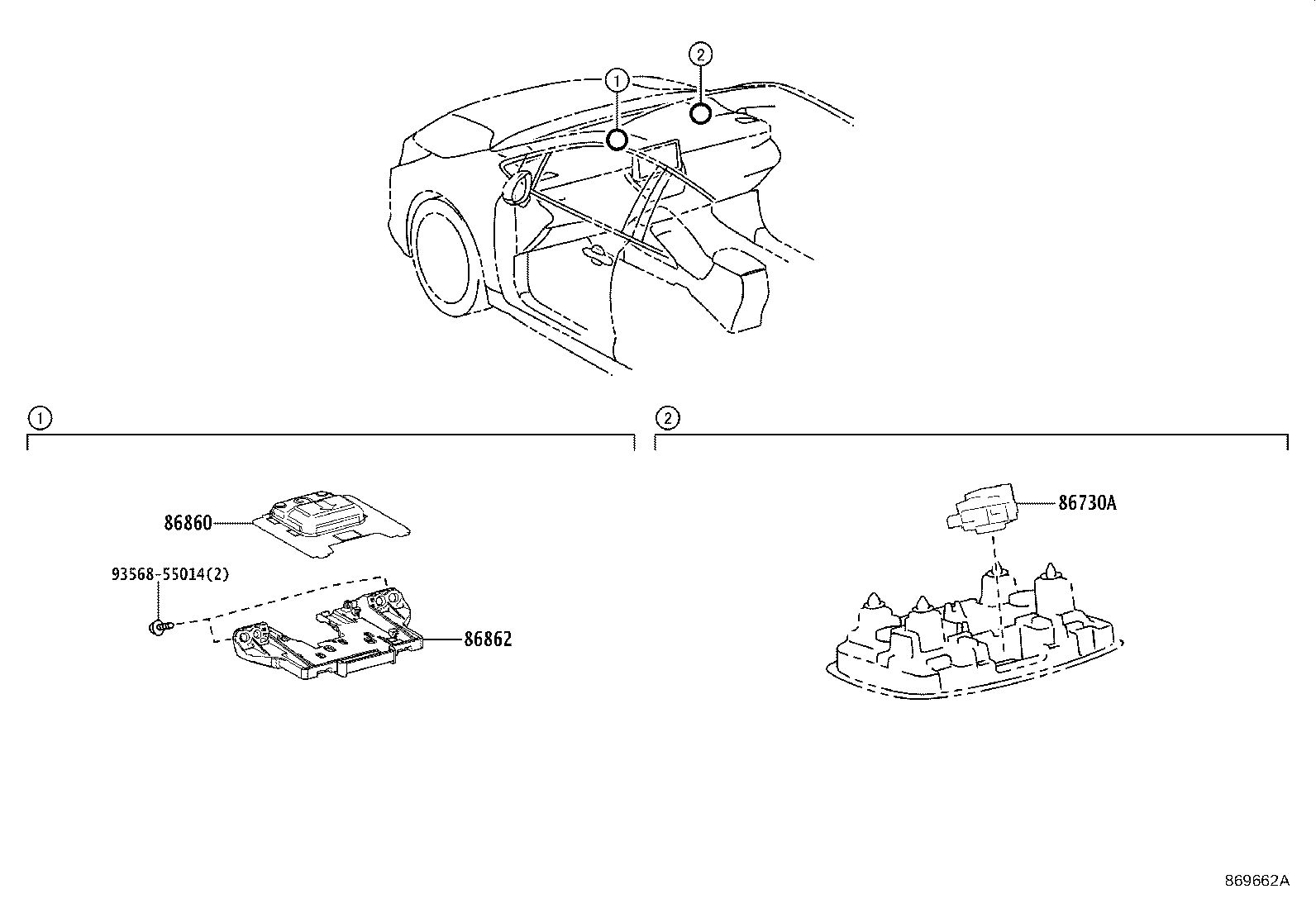

Figure 869661D 869661D 2022-10 → — Figure 869662A 869662A 2022-10 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86190E Adapter Assy, Stereo Jack
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86453 Wire, Multi-media Module
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
