Toyota GR Corolla

2022-10 → present · chassis GZEA14 · catalogue 16E210 · General

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 5 illustrations

Illustrations

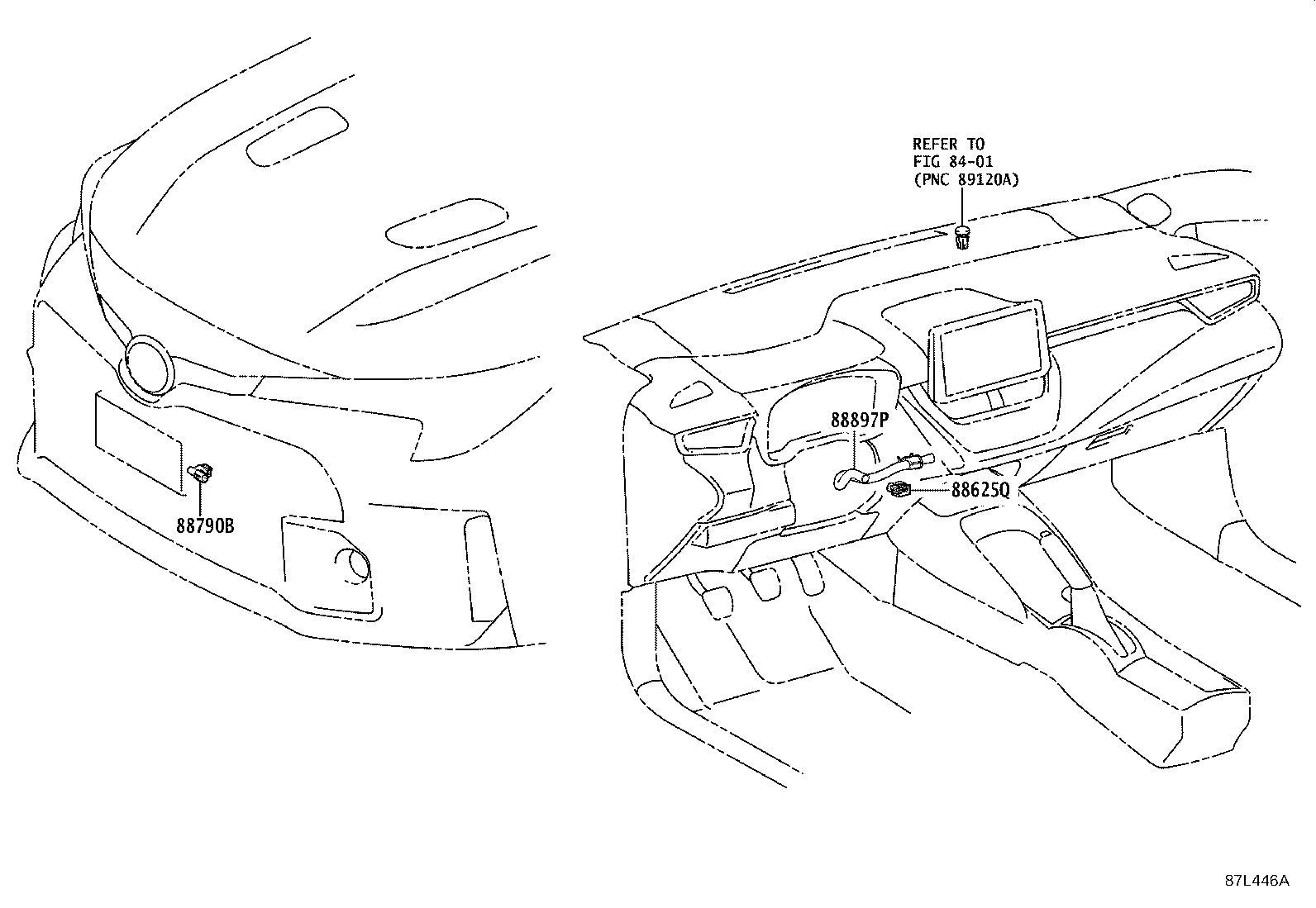

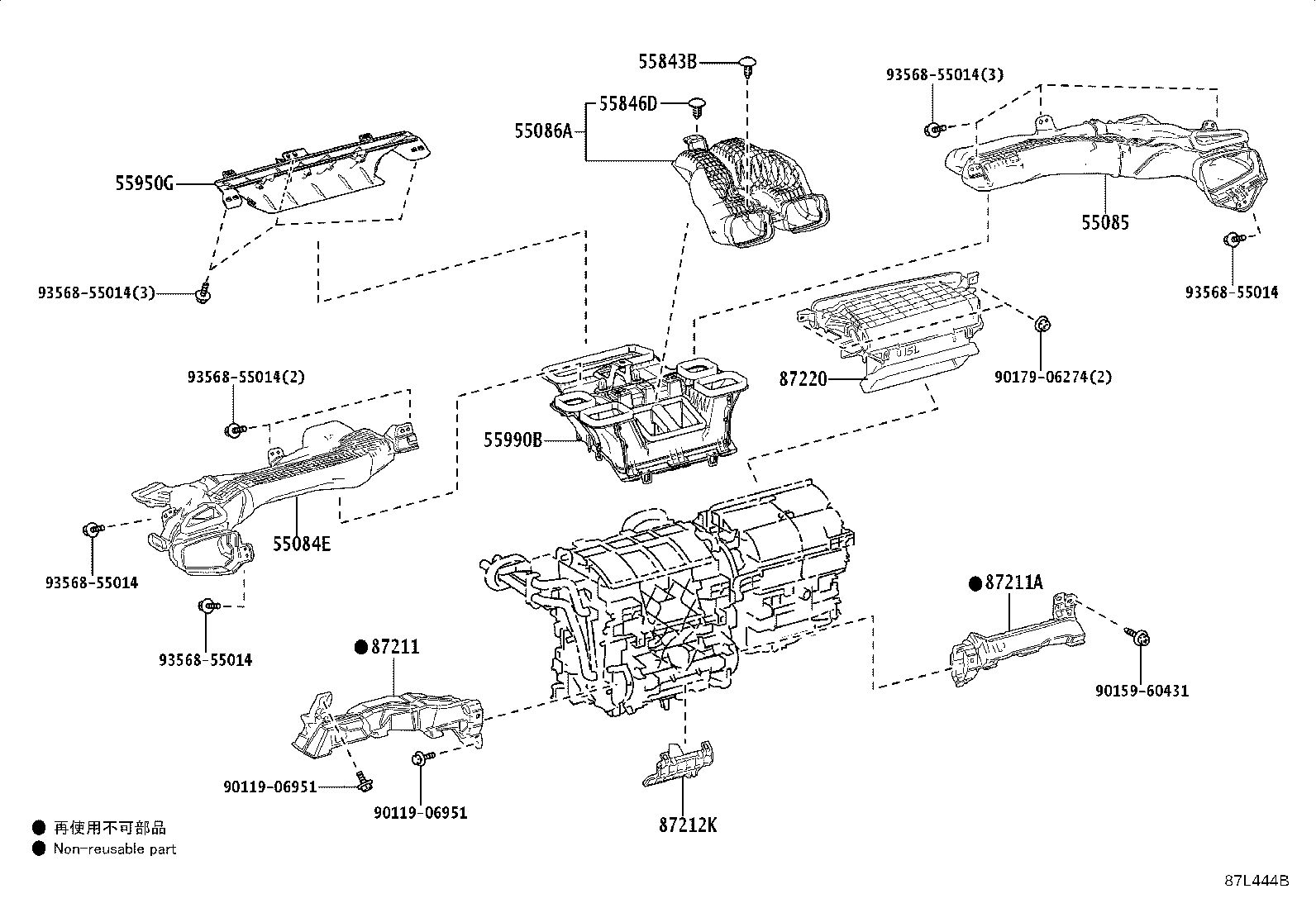

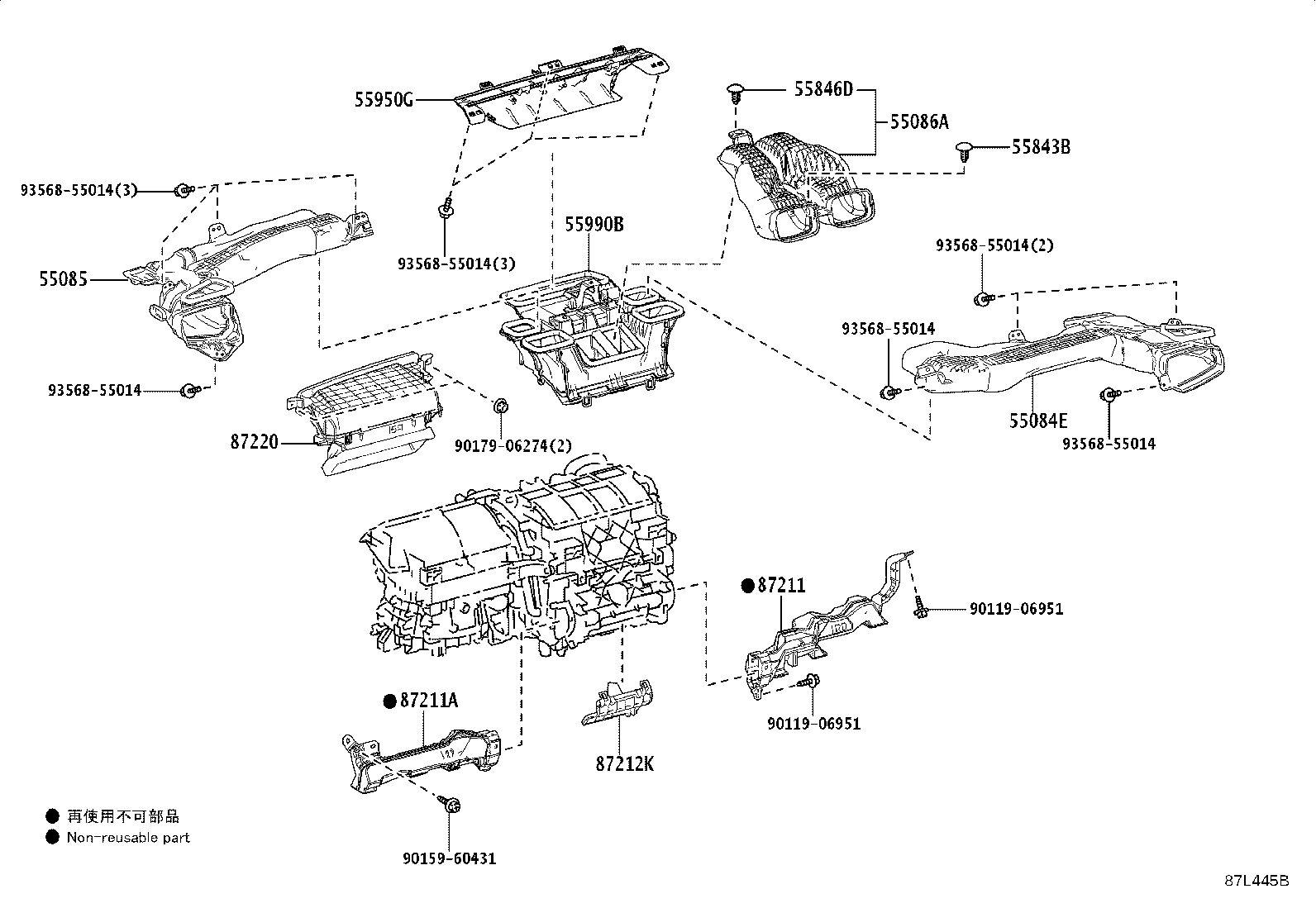

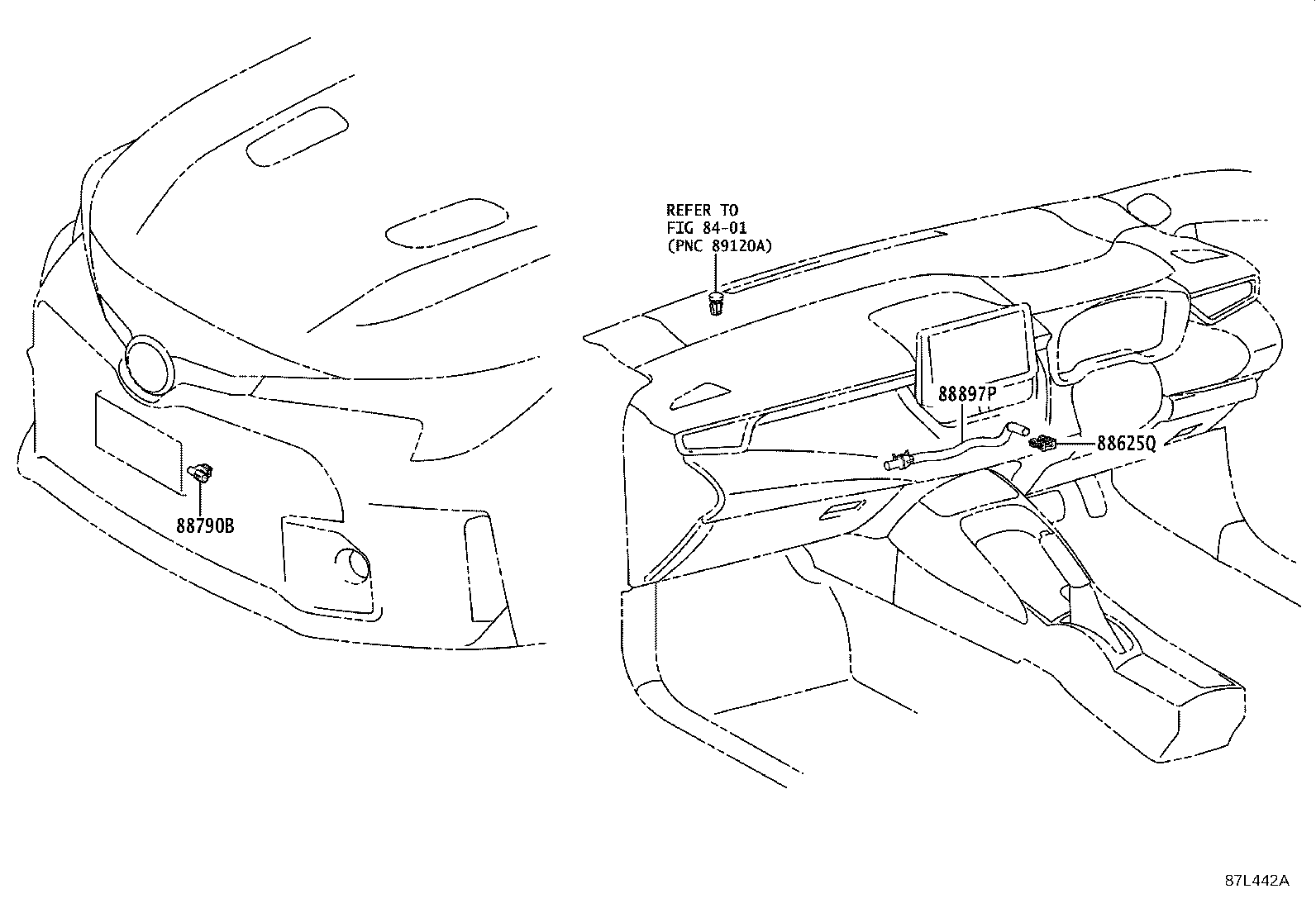

Figure 87L440A 87L440A 2022-10 → — Figure 87L444B 87L444B 2022-10 → — Figure 87L445B 87L445B 2022-10 → — Figure 87L446A 87L446A 2022-10 → — Figure 87L442A 87L442A 2022-10 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55843B Clip, Heater TO Register Duct
55846D Clip, Heater TO Register Duct
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212K Duct, Air, Rear NO.6
87220 Duct Assy, Air
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
