Toyota GR Corolla
2022-10 → present · chassis GZEA14 · catalogue 16E210 · General
Supported model
Data version 2024-09

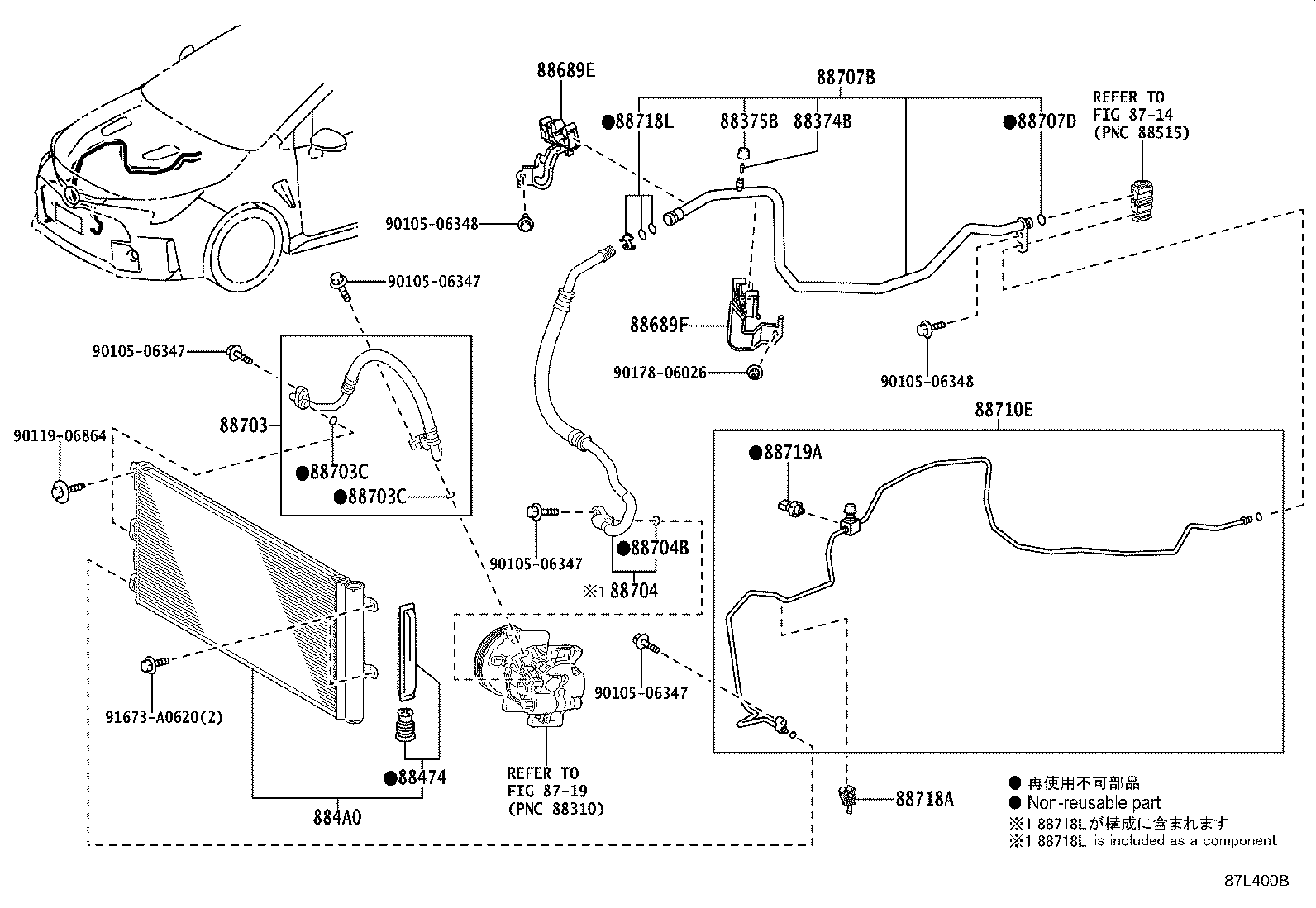

Heating & Air Conditioning - Cooler Piping
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375B | Cap, Service Valve, NO.1 |
| 88474 | Dryer, Cooler |
| 884A0 | Condenser Assy, Cooler |
| 88689E | Bracket, Cooler, NO.1 |
| 88689F | Bracket, Cooler, NO.2 |
| 88703 | Hose Sub-assy, Discharge |
| 88703C | Ring, O(FOR DISCHARGE HOSE) |
| 88704 | Hose Sub-assy, Suction |
| 88704B | Ring, O(FOR SUCTION HOSE) |
| 88707B | Tube Sub-assy, Suction, B |
| 88707D | Ring, O(FOR SUCTION TUBE) |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718L | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
