Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

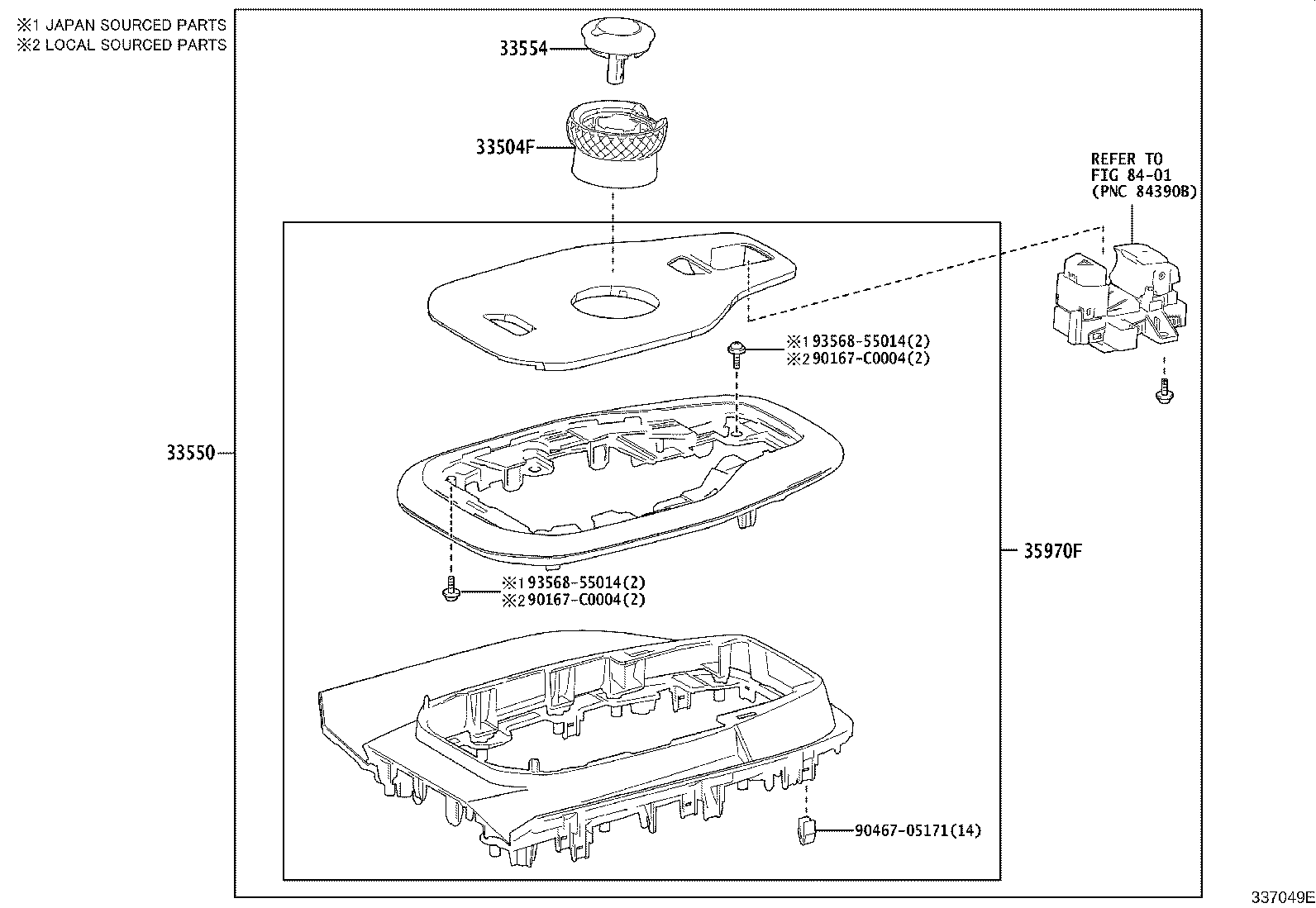

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-03010 |
Knob Sub-assy, Shift Lever
2024-07 → —
|
BEJG10 | — | |
| 33504-03010 |
Knob Sub-assy, Shift Lever
2023-01 → —
|
BEAM10 | — | |
| 33550 — Floor Shift Assy, Transmission | ||||
| 33550-03010-B0 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 M,N | — | |
| 33550-03020-B0 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 J | — | |
| 33550-03020-B0 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 M,N | — | |
| 33550-03020-B0 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 M,N | — | |
| 33550-03020-B1 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 J | — | |
| 33550-03020-B1 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 M,N | — | |
| 33550-03020-B1 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 M,N | — | |
| 33550-03060-B0 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 H | — | |
| 33550-03060-B1 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 H | — | |
| 33550-03090-C1 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 M | — | |
| 33550-03090-C1 note |
Floor Shift Assy, Transmission
2024-07 → —
|
BEJG10 M | — | |
| 33550-03010-B0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 M | — | |
| 33550-03010-B0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 N | — | |
| 33550-03010-B1 note |
Floor Shift Assy, Transmission
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 33550-03010-C0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 M | — | |
| 33550-03010-E0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 M,N | — | |
| 33550-03020-B0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 J | — | |
| 33550-03020-B0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 M,N | — | |
| 33550-03020-B1 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 J | — | |
| 33550-03020-B1 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 M,N | — | |
| 33550-03020-E0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 J | — | |
| 33550-03020-E0 note |
Floor Shift Assy, Transmission
2023-01 → —
|
BEAM10 M,N | — | |
| 33554 — Cap, Shift Lever | ||||
| 33554-03010 |
Cap, Shift Lever
2024-07 → —
|
BEJG10 | — | |
| 33554-03010 |
Cap, Shift Lever
2023-01 → —
|
BEAM10 | — | |
| 35970F — Housing Assy, Position Indicator | ||||
| 35970-03010-B0 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 M,N | — | |
| 35970-03020-B0 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 J | — | |
| 35970-03020-B0 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 M,N | — | |
| 35970-03020-B0 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 M,N | — | |
| 35970-03020-B1 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 J | — | |
| 35970-03020-B1 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 M,N | — | |
| 35970-03020-B1 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 M,N | — | |
| 35970-03040-B0 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 H | — | |
| 35970-03040-B1 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 H | — | |
| 35970-03090-C1 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 M | — | |
| 35970-03090-C1 note |
Housing Assy, Position Indicator
2024-07 → —
|
BEJG10 M | — | |
| 35970-03010-B0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 M | — | |
| 35970-03010-B0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 N | — | |
| 35970-03010-B1 note |
Housing Assy, Position Indicator
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 35970-03010-C0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 M | — | |
| 35970-03010-E0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 M,N | — | |
| 35970-03020-B0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 J | — | |
| 35970-03020-B0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 M,N | — | |
| 35970-03020-B1 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 J | — | |
| 35970-03020-B1 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 M,N | — | |
| 35970-03020-E0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 J | — | |
| 35970-03020-E0 note |
Housing Assy, Position Indicator
2023-01 → —
|
BEAM10 M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
