Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

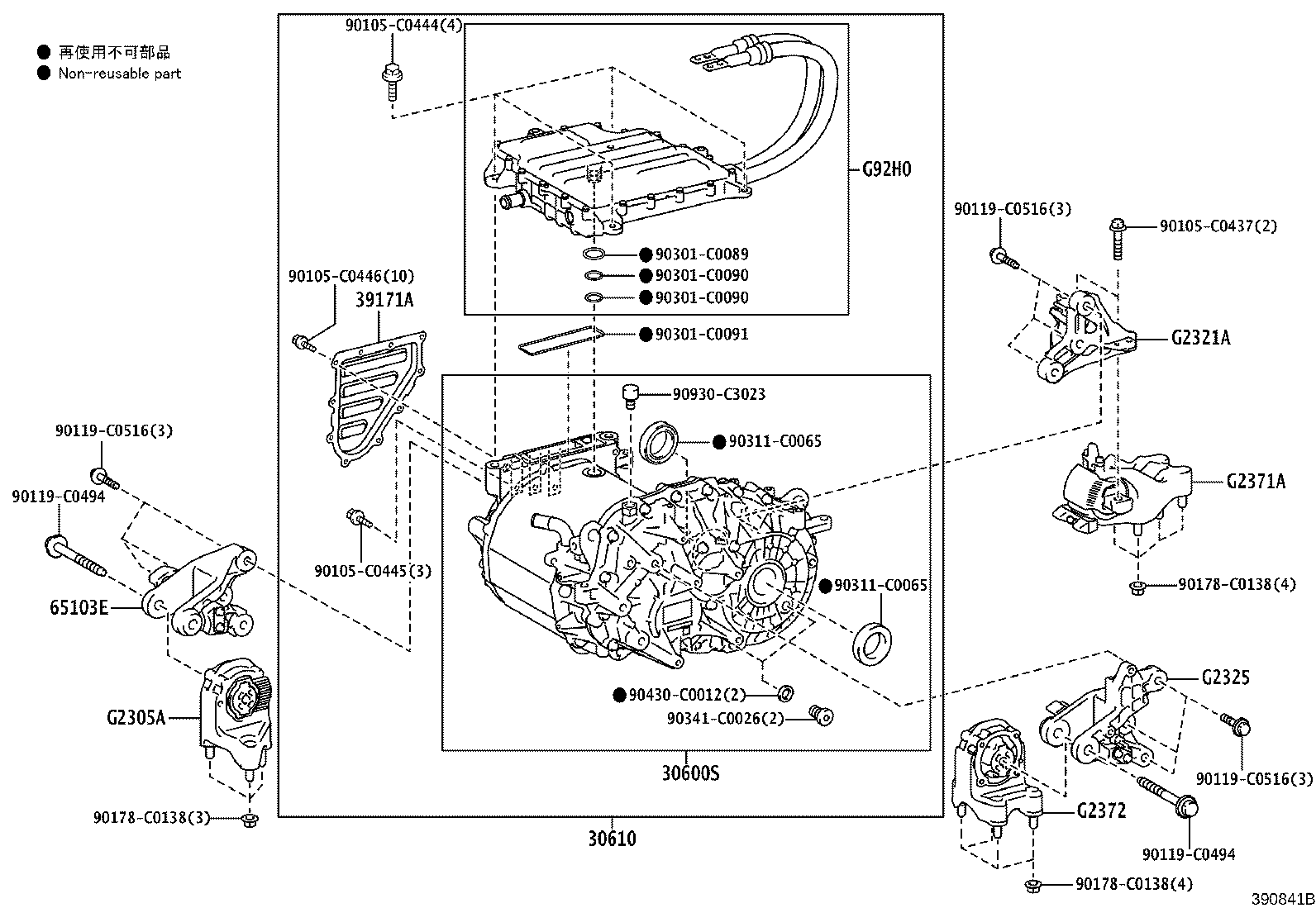

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30600S — Transaxle Assy, EV W/Motor | ||||
| 30600-03010 |
Transaxle Assy, EV W/Motor
2024-07 → —
|
BEJG10 | — | |
| 30600-03010 |
Transaxle Assy, EV W/Motor
2023-01 → —
|
BEAM10 | — | |
| 30610 — Transaxle Assy, W/Motor & Inverter | ||||
| 30610-03011 |
Transaxle Assy, W/Motor & Inverter
2024-07 → —
|
BEJG10 | — | |
| 30610-03010 |
Transaxle Assy, W/Motor & Inverter
2023-01 → —
|
BEAM10 | — | |
| 39171A — Cover, Transaxle | ||||
| 39171-03010 |
Cover, Transaxle
2024-07 → —
|
BEJG10 | — | |
| 39171-03010 |
Cover, Transaxle
2023-01 → —
|
BEAM10 | — | |
| 65103E — Bracket Sub-assy, Mounting, NO.1 | ||||
| G2315-03010 |
Bracket Sub-assy, Mounting, NO.1
2024-07 → —
|
BEJG10 | — | |
| G2315-03010 |
Bracket Sub-assy, Mounting, NO.1
2023-01 → —
|
BEAM10 | — | |
| G2305A — Insulator Sub-assy, Motor Mounting, RH | ||||
| G2305-03010 |
Insulator Sub-assy, Motor Mounting, RH
2024-07 → —
|
BEJG10 | — | |
| G2305-03010 |
Insulator Sub-assy, Motor Mounting, RH
2023-01 → —
|
BEAM10 | — | |
| G2321A — Bracket, Motor Mounting, Rear | ||||
| G2321-03010 |
Bracket, Motor Mounting, Rear
2024-07 → —
|
BEJG10 | — | |
| G2321-03010 |
Bracket, Motor Mounting, Rear
2023-01 → —
|
BEAM10 | — | |
| G2325 — Bracket, Motor Mounting, LH | ||||
| G2325-03010 |
Bracket, Motor Mounting, LH
2024-07 → —
|
BEJG10 | — | |
| G2325-03010 |
Bracket, Motor Mounting, LH
2023-01 → —
|
BEAM10 | — | |
| G2371A — Insulator, Motor Mounting, Rear | ||||
| G2371-03010 |
Insulator, Motor Mounting, Rear
2024-07 → —
|
BEJG10 | — | |
| G2371-03010 |
Insulator, Motor Mounting, Rear
2023-01 → —
|
BEAM10 | — | |
| G2372 — Insulator, Motor Mounting, LH | ||||
| G2372-03010 |
Insulator, Motor Mounting, LH
2024-07 → —
|
BEJG10 | — | |
| G2372-03010 |
Insulator, Motor Mounting, LH
2023-01 → —
|
BEAM10 | — | |
| G92H0 — Inverter Assy, Motor Control | ||||
| G92H0-03011 |
Inverter Assy, Motor Control
2024-07 → —
|
BEJG10 | — | |
| G92H0-03010 |
Inverter Assy, Motor Control
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
