Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

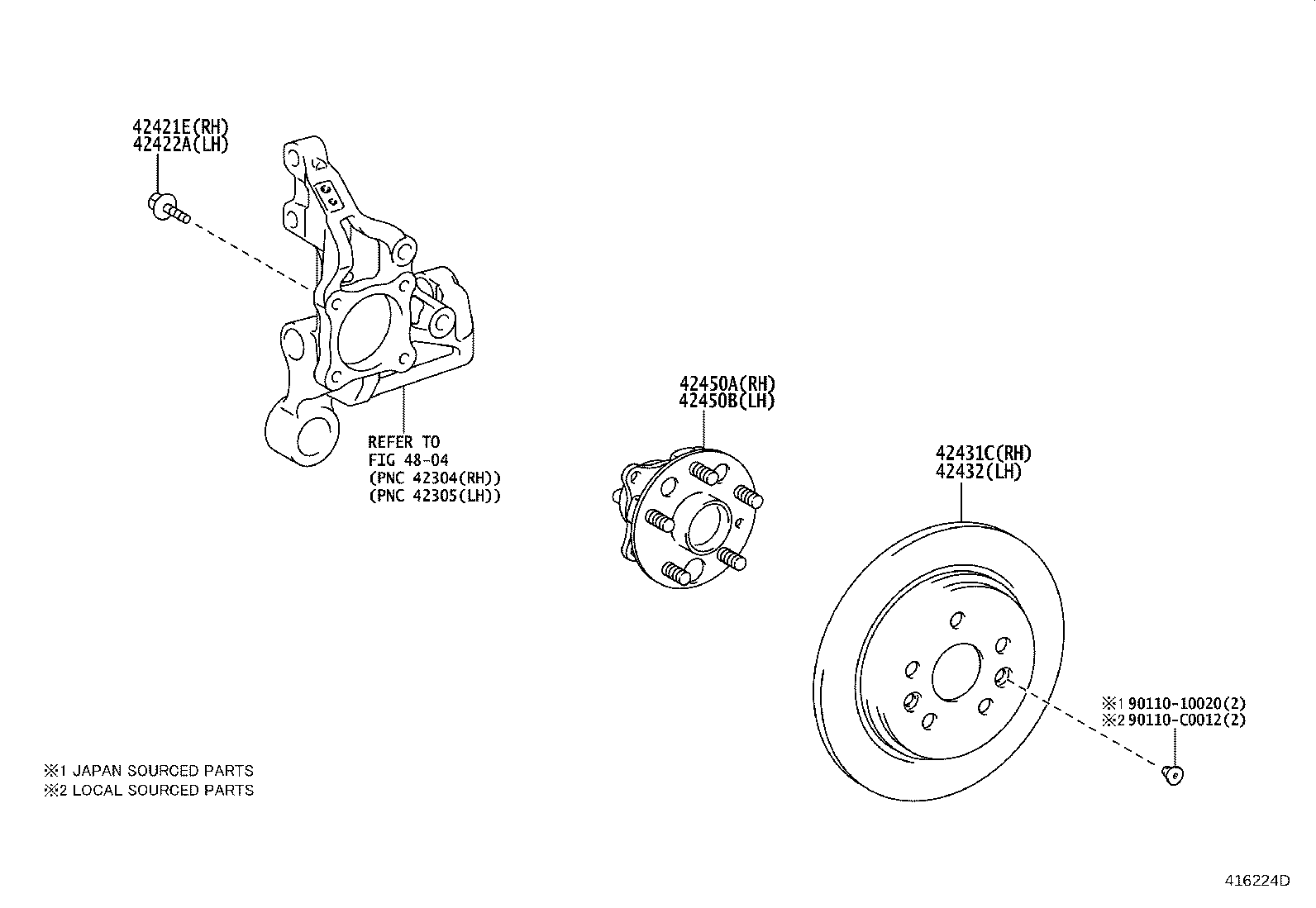

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12406 note |
Bolt (FOR REAR AXLE BEARING CASE RH)
2024-07 → —
|
BEJG10 | — | |
| 90105-C0328 note |
Bolt (FOR REAR AXLE BEARING CASE RH)
2024-07 → —
|
BEJG10 | — | |
| 90105-12406 note |
Bolt (FOR REAR AXLE BEARING CASE RH)
2023-01 → —
|
BEAM10 | — | |
| 90105-C0328 note |
Bolt (FOR REAR AXLE BEARING CASE RH)
2023-01 → —
|
BEAM10 | — | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12406 note |
Bolt (FOR REAR AXLE BEARING CASE LH)
2024-07 → —
|
BEJG10 | — | |
| 90105-C0328 note |
Bolt (FOR REAR AXLE BEARING CASE LH)
2024-07 → —
|
BEJG10 | — | |
| 90105-12406 note |
Bolt (FOR REAR AXLE BEARING CASE LH)
2023-01 → —
|
BEAM10 | — | |
| 90105-C0328 note |
Bolt (FOR REAR AXLE BEARING CASE LH)
2023-01 → —
|
BEAM10 | — | |
| 42431C — Disc, Rear RH | ||||
| 42431-03021 |
Disc, Rear RH
2024-07 → —
|
BEJG10 | — | |
| 42431-03021 |
Disc, Rear RH
2023-01 → —
|
BEAM10 | — | |
| 42432 — Disc, Rear LH | ||||
| 42431-03021 |
Disc, Rear LH
2024-07 → —
|
BEJG10 | — | |
| 42431-03021 |
Disc, Rear LH
2023-01 → —
|
BEAM10 | — | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-03011 |
Hub & Bearing Assy, Rear Axle, RH
2024-07 → —
|
BEJG10 | — | |
| 42450-03011 |
Hub & Bearing Assy, Rear Axle, RH
2023-01 → —
|
BEAM10 | — | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42450-03011 |
Hub & Bearing Assy, Rear Axle, LH
2024-07 → —
|
BEJG10 | — | |
| 42450-03011 |
Hub & Bearing Assy, Rear Axle, LH
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
