Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

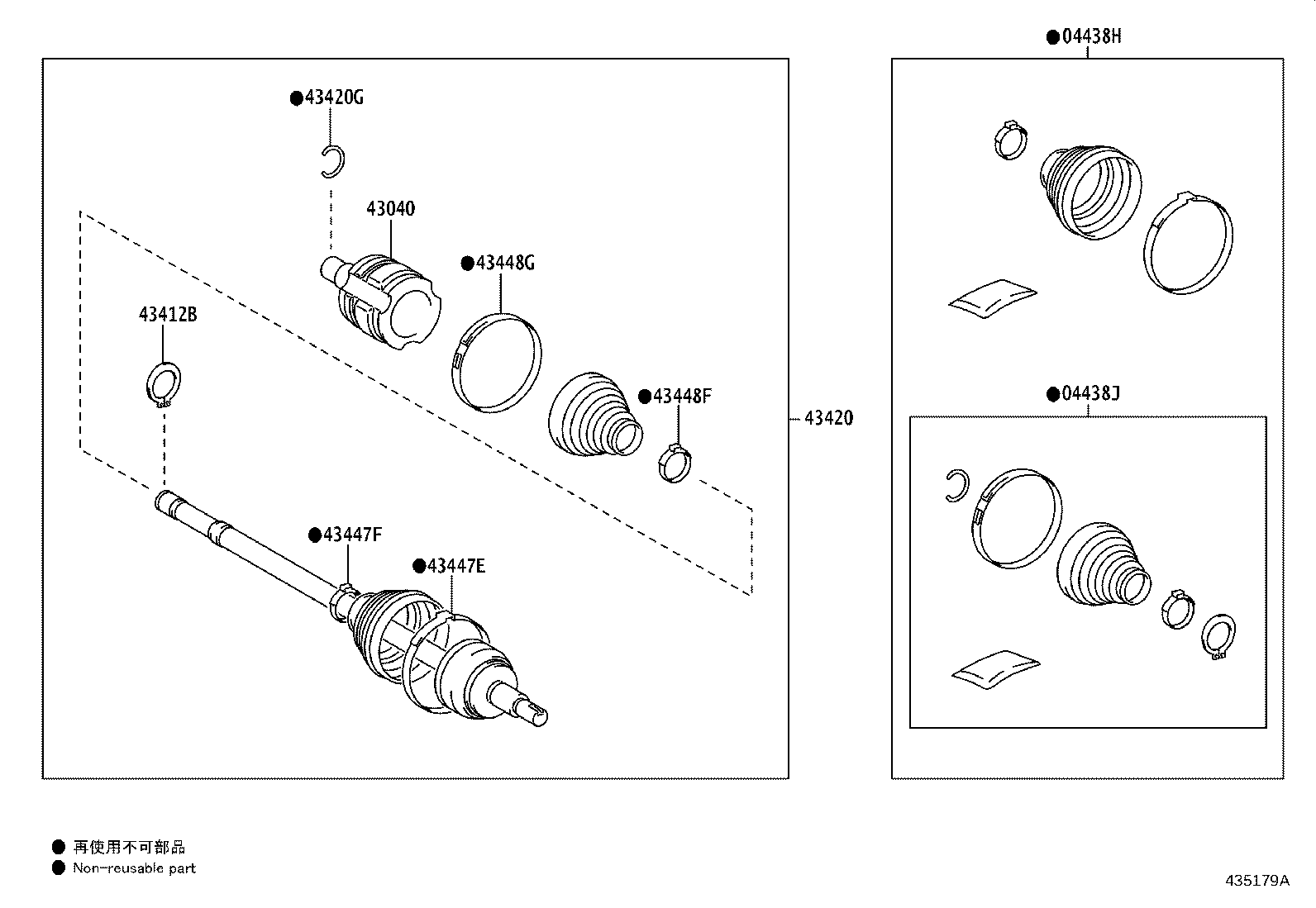

Exploded illustration 435179A 43420 — SHAFT ASSY, FRONT DRIVE, LH (2 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (2 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (2 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (2 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts)
435179A · 10 callouts Full size ↗
20 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-03010 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2024-07 → —
BEJG10 —
04427-03010 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2023-01 → —
BEAM10 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-03010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2024-07 → —
BEJG10 —
04437-03010 Boot Kit, Front Drive Shaft Inboard Joint, LH
2023-01 → —
BEAM10 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-03020 Joint Assy, Front Drive Inboard, LH
2024-07 → —
BEJG10 —
43040-03020 Joint Assy, Front Drive Inboard, LH
2023-01 → —
BEAM10 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-03010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2024-07 → —
BEJG10 —
43425-03010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2023-01 → —
BEAM10 —
43420 — Shaft Assy, Front Drive, LH
43420-03040 Shaft Assy, Front Drive, LH
2024-07 → —
BEJG10 —
43420-03040 Shaft Assy, Front Drive, LH
2023-01 → —
BEAM10 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43425-03020 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2024-07 → —
BEJG10 —
43425-03020 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2023-01 → —
BEAM10 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-03030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-07 → —
BEJG10 —
42345-03030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2023-01 → —
BEAM10 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-03020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2024-07 → —
BEJG10 —
42345-03020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2023-01 → —
BEAM10 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-03020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-07 → —
BEJG10 —
42345-03020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-01 → —
BEAM10 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-03010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2024-07 → —
BEJG10 —
42345-03010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
