Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

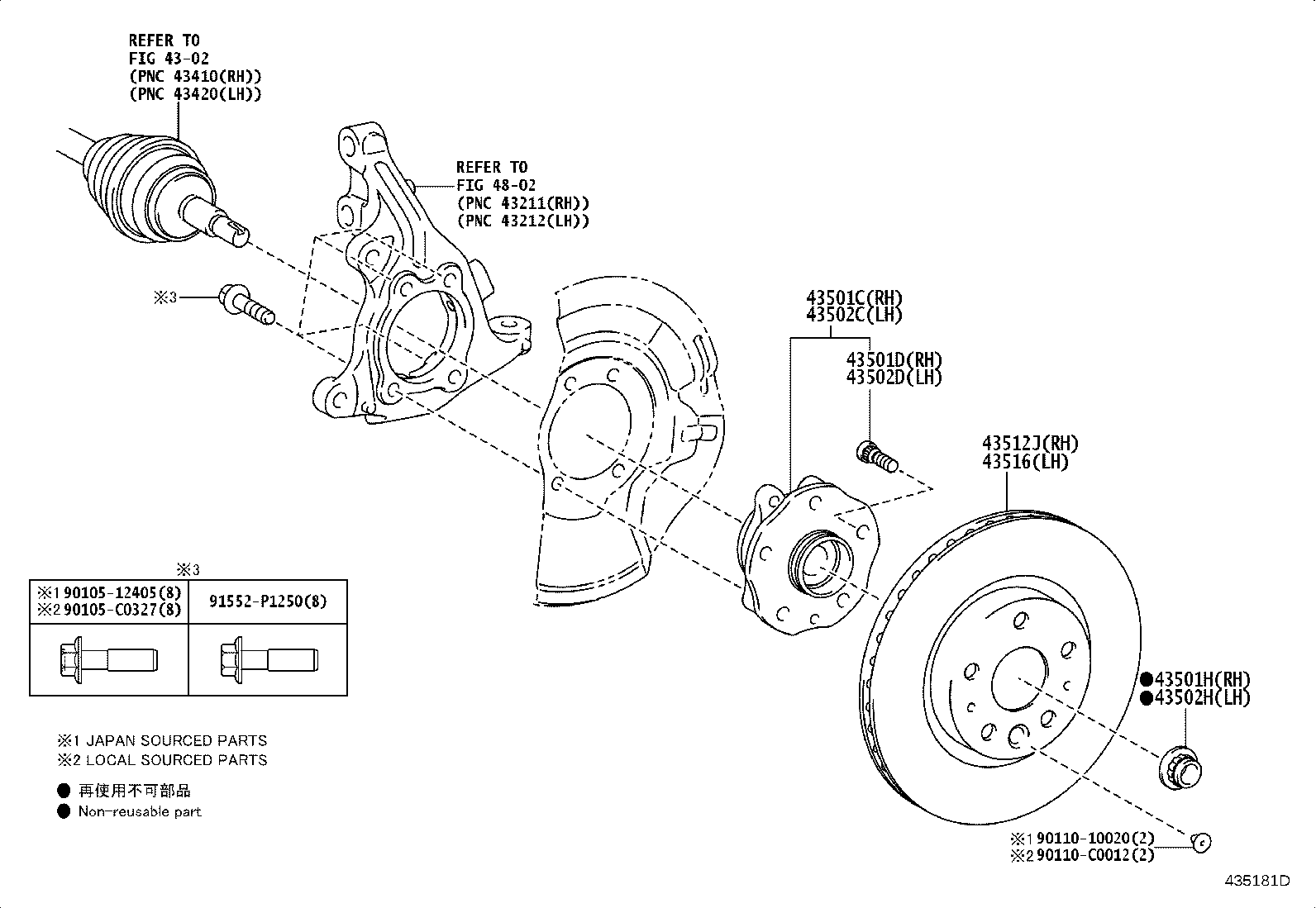

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

20 parts on this figure

Part number	Description	Fitment	Price
43501C — Hub Sub-assy, Front Axle, RH
43550-03011	Hub Sub-assy, Front Axle, RH 2024-07 → —	BEJG10	—
43550-03011	Hub Sub-assy, Front Axle, RH 2023-01 → —	BEAM10	—
43501D — Bolt, Hub (FOR FRONT AXLE RH)
90942-02079	Bolt, Hub (FOR FRONT AXLE RH) 2024-07 → —	BEJG10	—
90942-02079	Bolt, Hub (FOR FRONT AXLE RH) 2023-01 → —	BEAM10	—
43501H — Nut (FOR FRONT AXLE SHAFT RH)
90177-22001 note	Nut (FOR FRONT AXLE SHAFT RH) 2024-07 → —	BEJG10	—
90177-C0004 note	Nut (FOR FRONT AXLE SHAFT RH) 2024-07 → —	BEJG10	—
90177-22001 note	Nut (FOR FRONT AXLE SHAFT RH) 2023-01 → —	BEAM10	—
90177-C0004 note	Nut (FOR FRONT AXLE SHAFT RH) 2023-01 → —	BEAM10	—
43502C — Hub Sub-assy, Front Axle, LH
43550-03011	Hub Sub-assy, Front Axle, LH 2024-07 → —	BEJG10	—
43550-03011	Hub Sub-assy, Front Axle, LH 2023-01 → —	BEAM10	—
43502D — Bolt, Hub (FOR FRONT AXLE LH)
90942-02079	Bolt, Hub (FOR FRONT AXLE LH) 2024-07 → —	BEJG10	—
90942-02079	Bolt, Hub (FOR FRONT AXLE LH) 2023-01 → —	BEAM10	—
43502H — Nut (FOR FRONT AXLE SHAFT LH)
90177-22001 note	Nut (FOR FRONT AXLE SHAFT LH) 2024-07 → —	BEJG10	—
90177-C0004 note	Nut (FOR FRONT AXLE SHAFT LH) 2024-07 → —	BEJG10	—
90177-22001 note	Nut (FOR FRONT AXLE SHAFT LH) 2023-01 → —	BEAM10	—
90177-C0004 note	Nut (FOR FRONT AXLE SHAFT LH) 2023-01 → —	BEAM10	—
43512J — Disc, Front RH
43512-03021	Disc, Front RH 2024-07 → —	BEJG10	—
43512-03021	Disc, Front RH 2023-01 → —	BEAM10	—
43516 — Disc, Front LH
43512-03021	Disc, Front LH 2024-07 → —	BEJG10	—
43512-03021	Disc, Front LH 2023-01 → —	BEAM10	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
