Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

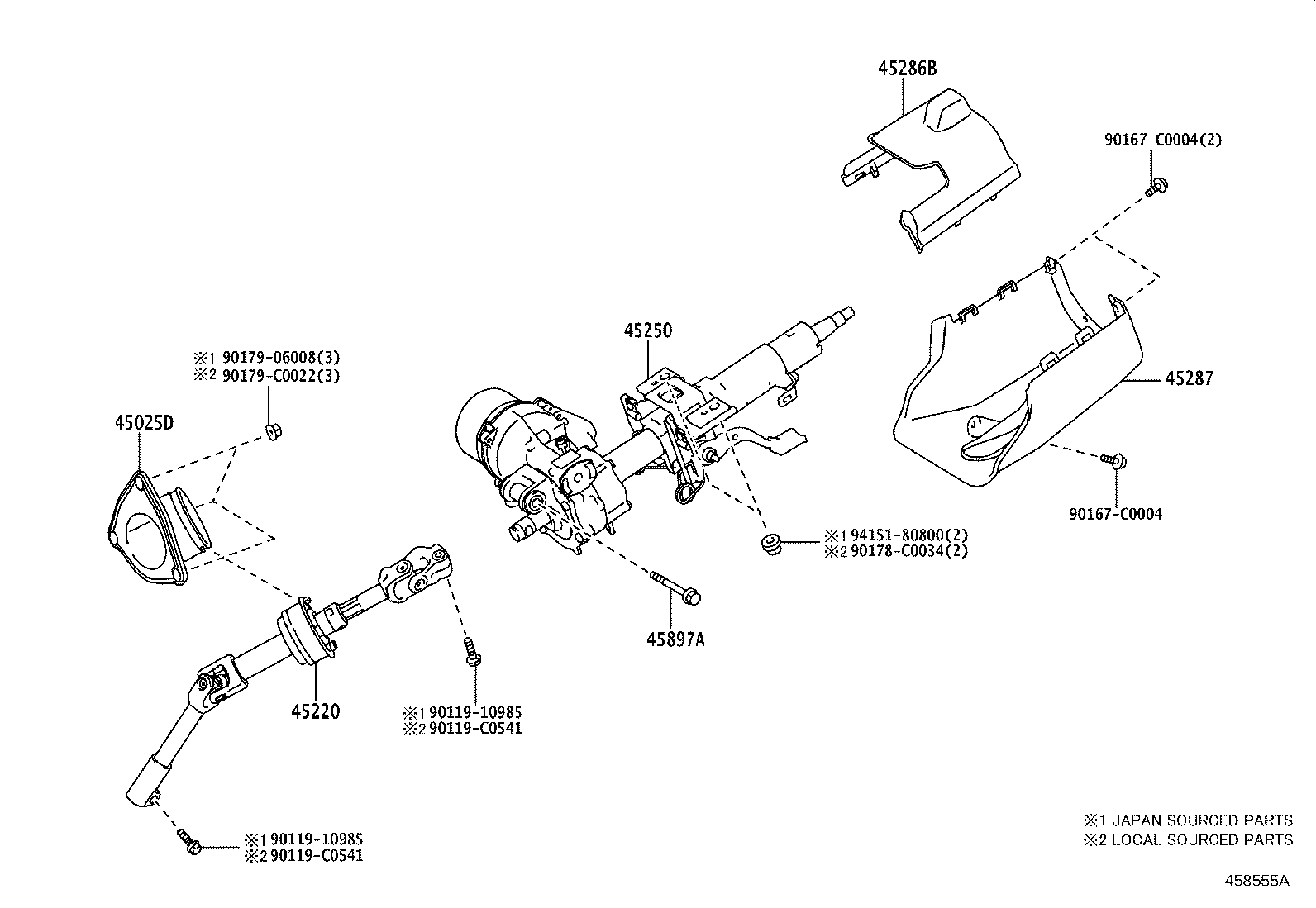

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-03010 |
Cover Sub-assy, Steering Column Hole, NO.1
2024-07 → —
|
BEJG10 | — | |
| 45025-03010 |
Cover Sub-assy, Steering Column Hole, NO.1
2023-01 → —
|
BEAM10 | — | |
| 45220 — Shaft Assy, Steering Intermediate | ||||
| 45220-03010 |
Shaft Assy, Steering Intermediate
2024-07 → —
|
BEJG10 | — | |
| 45220-03010 |
Shaft Assy, Steering Intermediate
2023-01 → —
|
BEAM10 | — | |
| 45250 — Column Assy, Steering | ||||
| 45250-03010 |
Column Assy, Steering
2024-07 → —
|
BEJG10 J,M,N | — | |
| 45250-03030 |
Column Assy, Steering
2024-07 → —
|
BEJG10 H | — | |
| 45250-03010 |
Column Assy, Steering
2023-01 → —
|
BEAM10 | — | |
| 45286B — Cover, Steering Column, Upr | ||||
| 45286-03030-C0 note |
Cover, Steering Column, Upr
2024-07 → —
|
BEJG10 M,N | — | |
| 45286-03060-C0 note |
Cover, Steering Column, Upr
2024-07 → —
|
BEJG10 M,N | — | |
| 45286-03060-C0 note |
Cover, Steering Column, Upr
2024-07 → —
|
BEJG10 M,N | — | |
| 45286-03060-C0 note |
Cover, Steering Column, Upr
2024-07 → —
|
BEJG10 H,J | — | |
| 45286-03020-C0 note |
Cover, Steering Column, Upr
2023-01 → —
|
BEAM10 J | — | |
| 45286-03020-C0 note |
Cover, Steering Column, Upr
2023-01 → —
|
BEAM10 M,N | — | |
| 45286-03030-C0 note |
Cover, Steering Column, Upr
2023-01 → —
|
BEAM10 M,N | — | |
| 45287 — Cover, Steering Column, Lwr | ||||
| 45024-03020-C0 note |
Cover, Steering Column, Lwr
2024-07 → —
|
BEJG10 | — | |
| 45024-03020-C0 note |
Cover, Steering Column, Lwr
2023-01 → —
|
BEAM10 | — | |
| 45897A — Bolt, Tilt Steering Pawl Set | ||||
| 90119-10981 note |
Bolt, Tilt Steering Pawl Set
2024-07 → —
|
BEJG10 | — | |
| 90119-C0427 note |
Bolt, Tilt Steering Pawl Set
2024-07 → —
|
BEJG10 | — | |
| 90119-10981 note |
Bolt, Tilt Steering Pawl Set
2023-01 → —
|
BEAM10 | — | |
| 90119-C0427 note |
Bolt, Tilt Steering Pawl Set
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
