Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

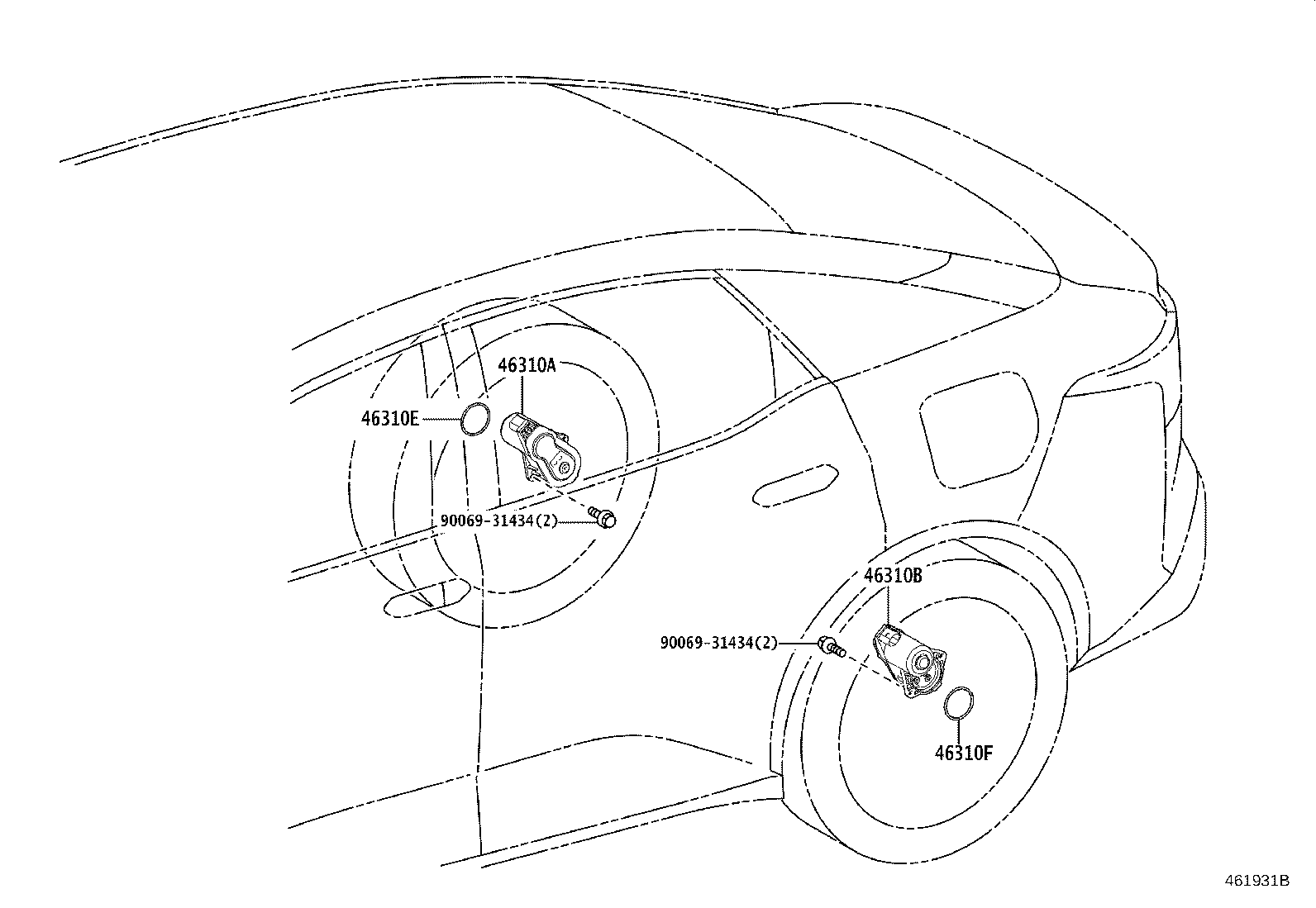

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46310A — Actuator Assy, Parking Brake, RH | ||||
| 46310-03010 |
Actuator Assy, Parking Brake, RH
2024-07 → —
|
BEJG10 | — | |
| 46310-03010 |
Actuator Assy, Parking Brake, RH
2023-01 → —
|
BEAM10 | — | |
| 46310B — Actuator Assy, Parking Brake, LH | ||||
| 46310-03010 |
Actuator Assy, Parking Brake, LH
2024-07 → —
|
BEJG10 | — | |
| 46310-03010 |
Actuator Assy, Parking Brake, LH
2023-01 → —
|
BEAM10 | — | |
| 46310E — Seal(FOR PARKING BRAKE ACTUATOR, RH) | ||||
| 47737-03050 |
Seal(FOR PARKING BRAKE ACTUATOR, RH)
2024-07 → —
|
BEJG10 | — | |
| 47737-03050 |
Seal(FOR PARKING BRAKE ACTUATOR, RH)
2023-01 → —
|
BEAM10 | — | |
| 46310F — Seal(FOR PARKING BRAKE ACTUATOR, LH) | ||||
| 47737-03050 |
Seal(FOR PARKING BRAKE ACTUATOR, LH)
2024-07 → —
|
BEJG10 | — | |
| 47737-03050 |
Seal(FOR PARKING BRAKE ACTUATOR, LH)
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
