Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

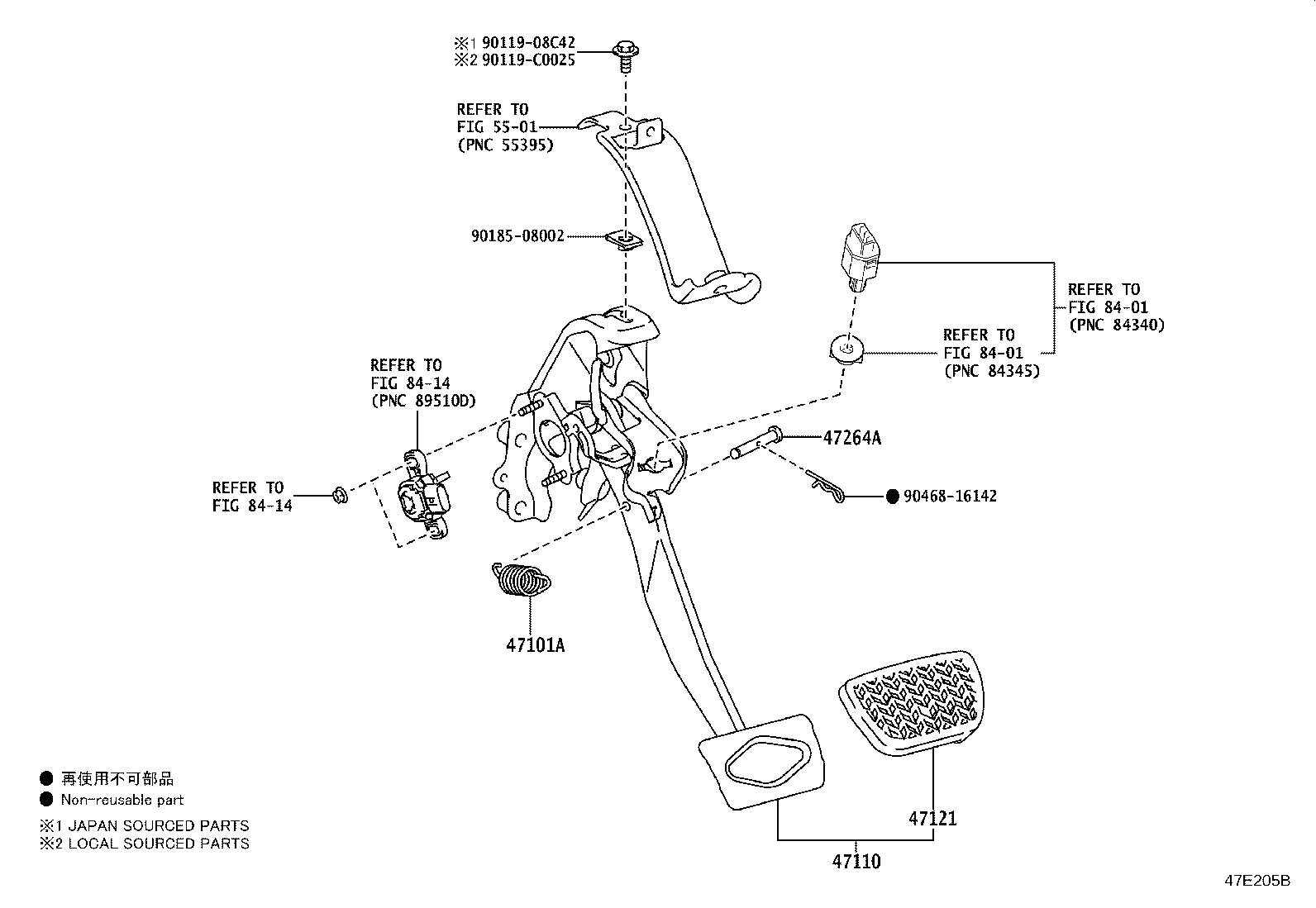

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-17005 |
Spring(FOR BRAKE PEDAL RETURN)
2024-07 → —
|
BEJG10 | — | |
| 90507-17005 |
Spring(FOR BRAKE PEDAL RETURN)
2023-01 → —
|
BEAM10 | — | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-03031 |
Support Assy, Brake Pedal
2024-07 → —
|
BEJG10 | — | |
| 47110-03030 |
Support Assy, Brake Pedal
2023-01 → 2023-03
ended
|
BEAM10 | — | |
| 47110-03031 |
Support Assy, Brake Pedal
2023-04 → —
|
BEAM10 | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-0R050 |
Pad, Brake Pedal
2024-07 → —
|
BEJG10 | — | |
| 47121-0R040 |
Pad, Brake Pedal
2023-01 → 2023-04
ended
|
BEAM10 | — | |
| 47121-0R050 |
Pad, Brake Pedal
2023-04 → —
|
BEAM10 | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90249-08221 |
Pin(FOR PUSH ROD)
2024-07 → —
|
BEJG10 | — | |
| 90249-08221 |
Pin(FOR PUSH ROD)
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
