Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

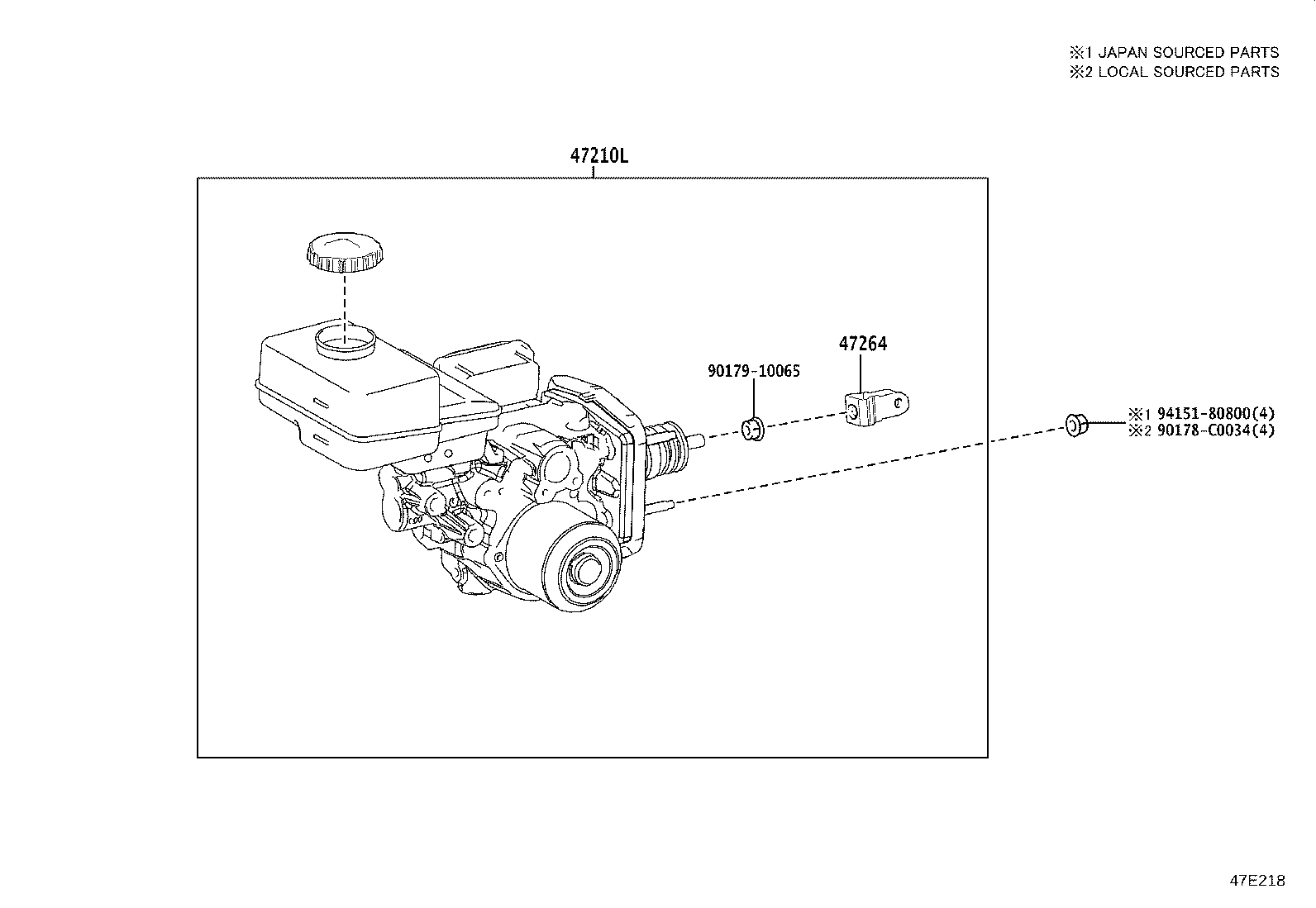

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47210L — Brake Booster Assy, W/Master Cylinder | ||||
| 47050-03010 |
Brake Booster Assy, W/Master Cylinder
2024-07 → —
|
BEJG10 J,M,N | — | |
| 47050-03030 |
Brake Booster Assy, W/Master Cylinder
2024-07 → —
|
BEJG10 H | — | |
| 47050-03010 |
Brake Booster Assy, W/Master Cylinder
2023-01 → —
|
BEAM10 | — | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-42030 |
Clevis, Master Cylinder Push Rod
2024-07 → —
|
BEJG10 | — | |
| 47264-42030 |
Clevis, Master Cylinder Push Rod
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
