Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

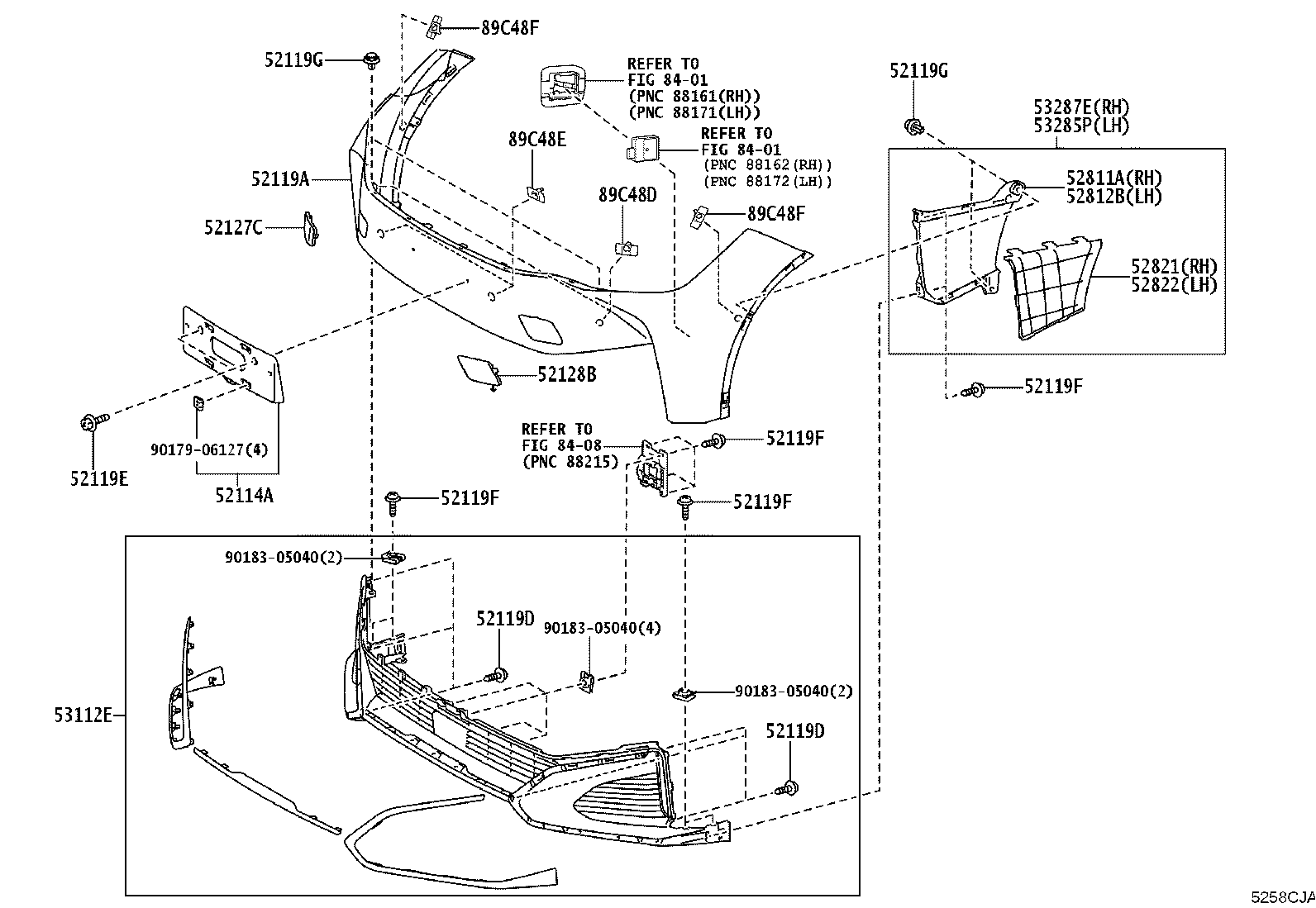

Exploded illustration 5258CJA 89C48E — RETAINER, ULTRASONIC SENSOR, FRONT CENTER (12 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (3 parts) 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (2 parts) 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (2 parts) 8401 — not listed in this catalogue 52119D — SCREW, NO.1 (2 parts) 52119D — SCREW, NO.1 (2 parts) 52119F — SCREW, NO.3 (4 parts) 52119A — COVER, FRONT BUMPER (13 parts) 52127C — COVER, FRONT BUMPER HOLE (2 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (2 parts) 52119G — CLIP, NO.1 (5 parts) 52119F — SCREW, NO.3 (4 parts) 52119F — SCREW, NO.3 (4 parts) 9018305040 — not listed in this catalogue 9018305040 — not listed in this catalogue 9018305040 — not listed in this catalogue 8408 — not listed in this catalogue 52119F — SCREW, NO.3 (4 parts) 52811A — DUCT, COOL AIR INTAKE, NO.1 (2 parts) 52812B — DUCT, COOL AIR INTAKE, NO.2 (2 parts) 52821 — DUCT, AIR INTAKE, RH (2 parts) 52822 — DUCT, AIR INTAKE, LH (2 parts) 53287E — DUCT, COOL AIR INTAKE, RH (2 parts) 53285P — DUCT, COOL AIR INTAKE, LH (2 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (4 parts) 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (5 parts) 52119E — SCREW, NO.2 (2 parts) 9017906127 — not listed in this catalogue 52119G — CLIP, NO.1 (5 parts) 8401 — not listed in this catalogue
5258CJA · 24 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
52114A — Bracket, Front Bumper Extension Mounting
52114-03010 Bracket, Front Bumper Extension Mounting
2024-07 → —
BEJG10 —
52114-03010 Bracket, Front Bumper Extension Mounting
2023-01 → —
BEAM10 M,N —
52114-03020 note Bracket, Front Bumper Extension Mounting
2023-01 → —
BEAM10 M,N —
52114-03020 Bracket, Front Bumper Extension Mounting
2023-01 → —
BEAM10 J —
52114-03020 note Bracket, Front Bumper Extension Mounting
2023-01 → —
BEAM10 M —
52119A — Cover, Front Bumper
52119-03911 note Cover, Front Bumper
2024-07 → —
BEJG10 M —
52119-03911 note Cover, Front Bumper
2024-07 → —
BEJG10 M —
52119-03911 note Cover, Front Bumper
2024-07 → —
BEJG10 M —
52119-03911 note Cover, Front Bumper
2024-07 → —
BEJG10 M —
52119-03912 note Cover, Front Bumper
2024-07 → —
BEJG10 H —
52119-03916 note Cover, Front Bumper
2024-07 → —
BEJG10 M,N —
52119-03917 note Cover, Front Bumper
2024-07 → —
BEJG10 J —
52119-03917 note Cover, Front Bumper
2024-07 → —
BEJG10 M,N —
52119-03917 note Cover, Front Bumper
2024-07 → —
BEJG10 M —
52119-03909 note Cover, Front Bumper
2023-01 → —
BEAM10 M,N —
52119-03910 note Cover, Front Bumper
2023-01 → —
BEAM10 J —
52119-03910 note Cover, Front Bumper
2023-01 → —
BEAM10 M,N —
52119-03910 note Cover, Front Bumper
2023-01 → —
BEAM10 M —
52119D — Screw, NO.1
90167-C0019 Screw, NO.1
2024-07 → —
BEJG10 —
90167-C0019 Screw, NO.1
2023-01 → —
BEAM10 —
52119E — Screw, NO.2
90159-C0008 Screw, NO.2
2024-07 → —
BEJG10 —
90159-C0008 Screw, NO.2
2023-01 → —
BEAM10 —
52119F — Screw, NO.3
90167-50063 note Screw, NO.3
2024-07 → —
BEJG10 —
90167-C0019 note Screw, NO.3
2024-07 → —
BEJG10 —
90167-50063 note Screw, NO.3
2023-01 → —
BEAM10 —
90167-C0019 note Screw, NO.3
2023-01 → —
BEAM10 —
52119G — Clip, NO.1
90467-07215 note Clip, NO.1
2024-07 → —
BEJG10 H —
90467-07215 Clip, NO.1
2024-07 → —
BEJG10 J,M,N —
90467-C0043 note Clip, NO.1
2024-07 → —
BEJG10 H —
90467-07215 Clip, NO.1
2023-01 → 2023-10 ended
BEAM10 —
90467-07215 Clip, NO.1
2023-10 → —
BEAM10 —
52127C — Cover, Front Bumper Hole
52127-03901 Cover, Front Bumper Hole
2024-07 → —
BEJG10 —
52127-03901 Cover, Front Bumper Hole
2023-01 → —
BEAM10 —
52128B — Cover, Front Bumper Hole, LH
52128-03901 Cover, Front Bumper Hole, LH
2024-07 → —
BEJG10 —
52128-03901 Cover, Front Bumper Hole, LH
2023-01 → —
BEAM10 —
52811A — Duct, Cool Air Intake, NO.1
52811-03010 note Duct, Cool Air Intake, NO.1
2024-07 → —
BEJG10 —
52811-03010 Duct, Cool Air Intake, NO.1
2023-01 → —
BEAM10 —
52812B — Duct, Cool Air Intake, NO.2
52812-03010 Duct, Cool Air Intake, NO.2
2024-07 → —
BEJG10 —
52812-03010 Duct, Cool Air Intake, NO.2
2023-01 → —
BEAM10 —
52821 — Duct, Air Intake, RH
52821-03010 Duct, Air Intake, RH
2024-07 → —
BEJG10 —
52821-03010 Duct, Air Intake, RH
2023-01 → —
BEAM10 —
52822 — Duct, Air Intake, LH
52822-03010 Duct, Air Intake, LH
2024-07 → —
BEJG10 —
52822-03010 Duct, Air Intake, LH
2023-01 → —
BEAM10 —
53112E — Grille, Radiator, Lower NO.1
53112-03010 note Grille, Radiator, Lower NO.1
2024-07 → —
BEJG10 M,N —
53112-03020 note Grille, Radiator, Lower NO.1
2024-07 → —
BEJG10 H,J —
53112-03010 note Grille, Radiator, Lower NO.1
2023-01 → —
BEAM10 M,N —
53112-03020 note Grille, Radiator, Lower NO.1
2023-01 → —
BEAM10 J —
53285P — Duct, Cool Air Intake, LH
52820-03010 Duct, Cool Air Intake, LH
2024-07 → —
BEJG10 —
52820-03010 Duct, Cool Air Intake, LH
2023-01 → —
BEAM10 —
53287E — Duct, Cool Air Intake, RH
52810-03010 Duct, Cool Air Intake, RH
2024-07 → —
BEJG10 —
52810-03010 Duct, Cool Air Intake, RH
2023-01 → —
BEAM10 —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-03420 Retainer, Ultrasonic Sensor, Front Corner
2024-07 → —
BEJG10 J,M,N —
89348-03440 Retainer, Ultrasonic Sensor, Front Corner
2024-07 → —
BEJG10 H —
89348-03120 Retainer, Ultrasonic Sensor, Front Corner
2023-01 → —
BEAM10 —
89C48E — Retainer, Ultrasonic Sensor, Front Center
89348-03450-A0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03450-B0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03450-B1 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03450-C0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03450-D0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03450-E0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03460-A0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03460-B0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03460-B1 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03460-C0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03460-D0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89348-03460-E0 note Retainer, Ultrasonic Sensor, Front Center
2024-07 → —
BEJG10 H —
89C48F — Retainer, Ultrasonic Sensor, Front Side
89348-03430 note Retainer, Ultrasonic Sensor, Front Side
2024-07 → —
BEJG10 H —
89348-03470 note Retainer, Ultrasonic Sensor, Front Side
2024-07 → —
BEJG10 H —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
