Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

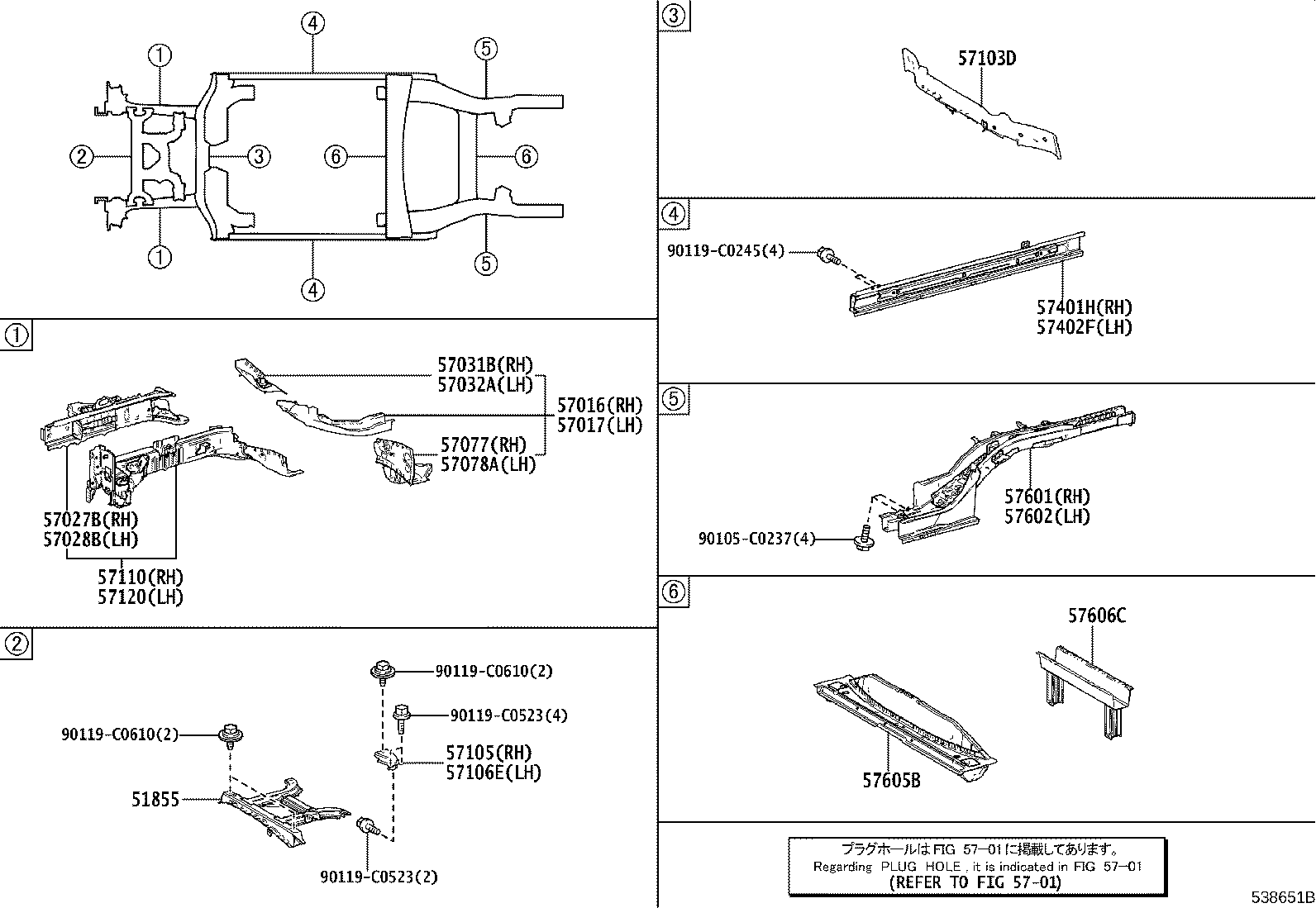

Exploded illustration 538651D 51855 — BRACKET, FLOOR CROSSMEMBER,NO.1 (2 parts) 57103D — CROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL (2 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (2 parts) 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (4 parts) 57027B — MEMBER SUB-ASSY, FRONT SIDE, INNER RH (2 parts) 57028B — MEMBER SUB-ASSY, FRONT SIDE, INNER LH (2 parts) 57032A — BRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH (5 parts) 57016 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH (5 parts) 57017 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH (5 parts) 57401H — MEMBER SUB-ASSY, FLOOR SIDE, INNER RH (2 parts) 57402F — MEMBER SUB-ASSY, FLOOR SIDE, INNER LH (2 parts) 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (2 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (2 parts) 57110 — MEMBER ASSY, FRONT SIDE, RH (2 parts) 57120 — MEMBER ASSY, FRONT SIDE, LH (2 parts) 57105 — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH (2 parts) 57106E — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH (2 parts) 90119C0610 — not listed in this catalogue 90119C0610 — not listed in this catalogue 90119C0523 — not listed in this catalogue 90119C0523 — not listed in this catalogue 5701 — not listed in this catalogue 57077 — BOX SUB-ASSY, TORQUE, FRONT RH (2 parts) 57078A — BOX SUB-ASSY, TORQUE, FRONT LH (2 parts) 57031B — BRACKET SUB-ASSY, NO.7 BODY MOUNTING, RH (5 parts) 90105C0237 — not listed in this catalogue 90119C0245 — not listed in this catalogue
538651D · 20 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
51855 — Bracket, Floor Crossmember,NO.1
51025-03011 Bracket, Floor Crossmember,NO.1
2024-07 → —
BEJG10 —
51025-03010 Bracket, Floor Crossmember,NO.1
2023-01 → —
BEAM10 —
57016 — Reinforcement Sub-assy, Front Side Member, RH
57017-03010 Reinforcement Sub-assy, Front Side Member, RH
2024-07 → 2024-09 ended
BEJG10 —
57017-03011 Reinforcement Sub-assy, Front Side Member, RH
2024-09 → —
BEJG10 —
57017-03010 Reinforcement Sub-assy, Front Side Member, RH
2023-01 → 2023-06 ended
BEAM10 —
57017-03010 Reinforcement Sub-assy, Front Side Member, RH
2024-05 → —
BEAM10 —
57017-03011 Reinforcement Sub-assy, Front Side Member, RH
2023-07 → 2024-05 ended
BEAM10 —
57017 — Reinforcement Sub-assy, Front Side Member, LH
57018-03010 Reinforcement Sub-assy, Front Side Member, LH
2024-07 → 2024-09 ended
BEJG10 —
57018-03011 Reinforcement Sub-assy, Front Side Member, LH
2024-09 → —
BEJG10 —
57018-03010 Reinforcement Sub-assy, Front Side Member, LH
2023-01 → 2023-06 ended
BEAM10 —
57018-03010 Reinforcement Sub-assy, Front Side Member, LH
2024-05 → —
BEAM10 —
57018-03011 Reinforcement Sub-assy, Front Side Member, LH
2023-07 → 2024-05 ended
BEAM10 —
57027B — Member Sub-assy, Front Side, Inner RH
57027-03011 Member Sub-assy, Front Side, Inner RH
2024-07 → —
BEJG10 —
57027-03010 Member Sub-assy, Front Side, Inner RH
2023-01 → —
BEAM10 —
57028B — Member Sub-assy, Front Side, Inner LH
57028-03010 Member Sub-assy, Front Side, Inner LH
2024-07 → —
BEJG10 —
57028-03010 Member Sub-assy, Front Side, Inner LH
2023-01 → —
BEAM10 —
57031B — Bracket Sub-assy, NO.7 Body Mounting, RH
57031-03010 Bracket Sub-assy, NO.7 Body Mounting, RH
2024-07 → 2024-09 ended
BEJG10 —
57031-03011 Bracket Sub-assy, NO.7 Body Mounting, RH
2024-09 → —
BEJG10 —
57031-03010 Bracket Sub-assy, NO.7 Body Mounting, RH
2023-01 → 2023-06 ended
BEAM10 —
57031-03010 Bracket Sub-assy, NO.7 Body Mounting, RH
2024-05 → —
BEAM10 —
57031-03011 Bracket Sub-assy, NO.7 Body Mounting, RH
2023-07 → 2024-05 ended
BEAM10 —
57032A — Bracket Sub-assy, NO.7 Body Mounting, LH
57032-03010 Bracket Sub-assy, NO.7 Body Mounting, LH
2024-07 → 2024-09 ended
BEJG10 —
57032-03011 Bracket Sub-assy, NO.7 Body Mounting, LH
2024-09 → —
BEJG10 —
57032-03010 Bracket Sub-assy, NO.7 Body Mounting, LH
2023-01 → 2023-06 ended
BEAM10 —
57032-03010 Bracket Sub-assy, NO.7 Body Mounting, LH
2024-05 → —
BEAM10 —
57032-03011 Bracket Sub-assy, NO.7 Body Mounting, LH
2023-07 → 2024-05 ended
BEAM10 —
57077 — Box Sub-assy, Torque, Front RH
57077-03010 Box Sub-assy, Torque, Front RH
2024-07 → —
BEJG10 —
57077-03010 Box Sub-assy, Torque, Front RH
2023-01 → —
BEAM10 —
57078A — Box Sub-assy, Torque, Front LH
57078-03010 Box Sub-assy, Torque, Front LH
2024-07 → —
BEJG10 —
57078-03010 Box Sub-assy, Torque, Front LH
2023-01 → —
BEAM10 —
57103D — Crossmember Sub-assy, Front Side Member TO Dash Panel
57103-03010 Crossmember Sub-assy, Front Side Member TO Dash Panel
2024-07 → —
BEJG10 —
57103-03010 Crossmember Sub-assy, Front Side Member TO Dash Panel
2023-01 → —
BEAM10 —
57105 — Bracket Sub-assy, Front Suspension Member Mounting, Front RH
57105-03011 Bracket Sub-assy, Front Suspension Member Mounting, Front RH
2024-07 → —
BEJG10 —
57105-03010 Bracket Sub-assy, Front Suspension Member Mounting, Front RH
2023-01 → —
BEAM10 —
57106E — Bracket Sub-assy, Front Suspension Member Mounting, Front LH
57106-03011 Bracket Sub-assy, Front Suspension Member Mounting, Front LH
2024-07 → —
BEJG10 —
57106-03010 Bracket Sub-assy, Front Suspension Member Mounting, Front LH
2023-01 → —
BEAM10 —
57110 — Member Assy, Front Side, RH
57110-03011 Member Assy, Front Side, RH
2024-07 → —
BEJG10 —
57110-03010 Member Assy, Front Side, RH
2023-01 → —
BEAM10 —
57120 — Member Assy, Front Side, LH
57120-03011 Member Assy, Front Side, LH
2024-07 → —
BEJG10 —
57120-03010 Member Assy, Front Side, LH
2023-01 → —
BEAM10 —
57401H — Member Sub-assy, Floor Side, Inner RH
57401-03021 Member Sub-assy, Floor Side, Inner RH
2024-07 → —
BEJG10 —
57401-03020 Member Sub-assy, Floor Side, Inner RH
2023-01 → —
BEAM10 —
57402F — Member Sub-assy, Floor Side, Inner LH
57402-03020 Member Sub-assy, Floor Side, Inner LH
2024-07 → —
BEJG10 —
57402-03020 Member Sub-assy, Floor Side, Inner LH
2023-01 → —
BEAM10 —
57601 — Member Sub-assy, Rear Floor Side, RH
57601-03050 Member Sub-assy, Rear Floor Side, RH
2024-07 → —
BEJG10 —
57601-03050 Member Sub-assy, Rear Floor Side, RH
2023-01 → —
BEAM10 —
57602 — Member Sub-assy, Rear Floor Side, LH
57602-03040 Member Sub-assy, Rear Floor Side, LH
2024-07 → —
BEJG10 —
57602-03040 Member Sub-assy, Rear Floor Side, LH
2023-01 → —
BEAM10 —
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-03020 Member Sub-assy, Rear Floor Cross, NO.1
2024-07 → —
BEJG10 —
57605-03020 Member Sub-assy, Rear Floor Cross, NO.1
2023-01 → —
BEAM10 —
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-03050 Member Sub-assy, Rear Floor Cross, NO.2
2024-07 → —
BEJG10 M —
57606-03060 Member Sub-assy, Rear Floor Cross, NO.2
2024-07 → —
BEJG10 H,J,N —
57606-03050 Member Sub-assy, Rear Floor Cross, NO.2
2023-01 → —
BEAM10 M —
57606-03060 Member Sub-assy, Rear Floor Cross, NO.2
2023-01 → —
BEAM10 J,N —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
