Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

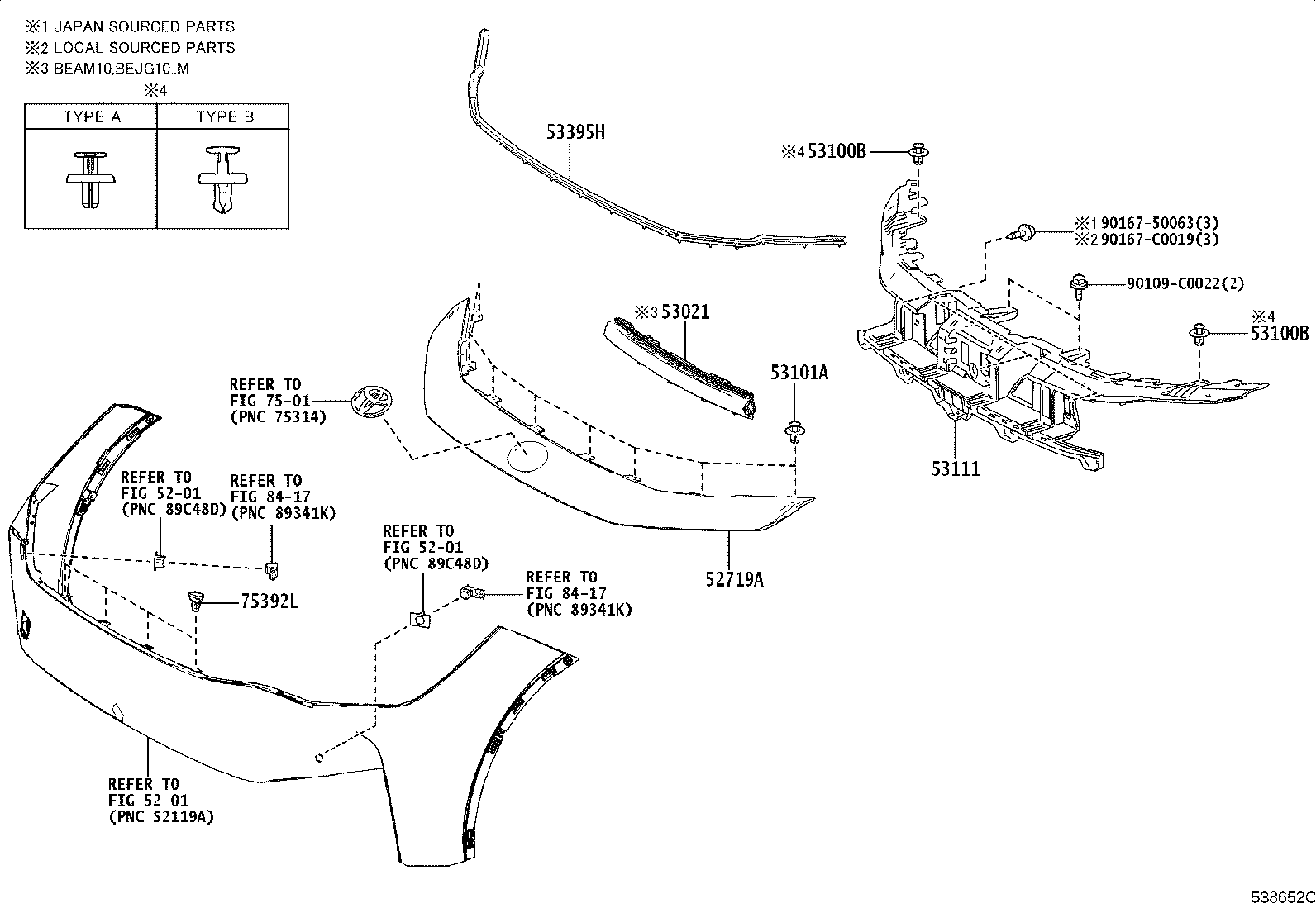

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52719A — Cover, Front Bumper Moulding | ||||
| 53181-03900 |
Cover, Front Bumper Moulding
2024-07 → —
|
BEJG10 | — | |
| 53181-03900 |
Cover, Front Bumper Moulding
2023-01 → —
|
BEAM10 | — | |
| 53021 — Garnish, Radiator Grille, Lower | ||||
| 8121A-03010 |
Garnish, Radiator Grille, Lower
2024-07 → —
|
BEJG10 M | — | |
| 8121A-03010 |
Garnish, Radiator Grille, Lower
2023-01 → —
|
BEAM10 M | — | |
| 53100B — Clip, Radiator Grille | ||||
| 90467-07215 note |
Clip, Radiator Grille
2024-07 → —
|
BEJG10 | — | |
| 90467-07215 note |
Clip, Radiator Grille
2024-07 → —
|
BEJG10 M | — | |
| 90467-07215 note |
Clip, Radiator Grille
2024-07 → —
|
BEJG10 M | — | |
| 90467-07215 note |
Clip, Radiator Grille
2024-07 → —
|
BEJG10 M | — | |
| 90467-07215 note |
Clip, Radiator Grille
2024-07 → —
|
BEJG10 M | — | |
| 90467-C0043 note |
Clip, Radiator Grille
2024-07 → —
|
BEJG10 | — | |
| 90467-07215 |
Clip, Radiator Grille
2023-01 → —
|
BEAM10 | — | |
| 53101A — Clip, Radiator Grille | ||||
| 90467-C0017-C0 note |
Clip, Radiator Grille
2024-07 → —
|
BEJG10 | — | |
| 90467-C0017-C0 note |
Clip, Radiator Grille
2023-01 → —
|
BEAM10 | — | |
| 53111 — Grille, Radiator | ||||
| 53111-03021 note |
Grille, Radiator
2024-07 → —
|
BEJG10 | — | |
| 53111-03020 note |
Grille, Radiator
2023-01 → 2023-10
ended
|
BEAM10 | — | |
| 53111-03021 note |
Grille, Radiator
2023-10 → —
|
BEAM10 | — | |
| 53395H — Seal, Hood TO Radiator Grille | ||||
| 53395-03010 |
Seal, Hood TO Radiator Grille
2024-07 → —
|
BEJG10 | — | |
| 53395-03010 |
Seal, Hood TO Radiator Grille
2023-01 → —
|
BEAM10 | — | |
| 75392L — Retainer, Outside Moulding | ||||
| 75392-0R030 |
Retainer, Outside Moulding
2024-07 → —
|
BEJG10 | — | |
| 75392-0R030 |
Retainer, Outside Moulding
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
