Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

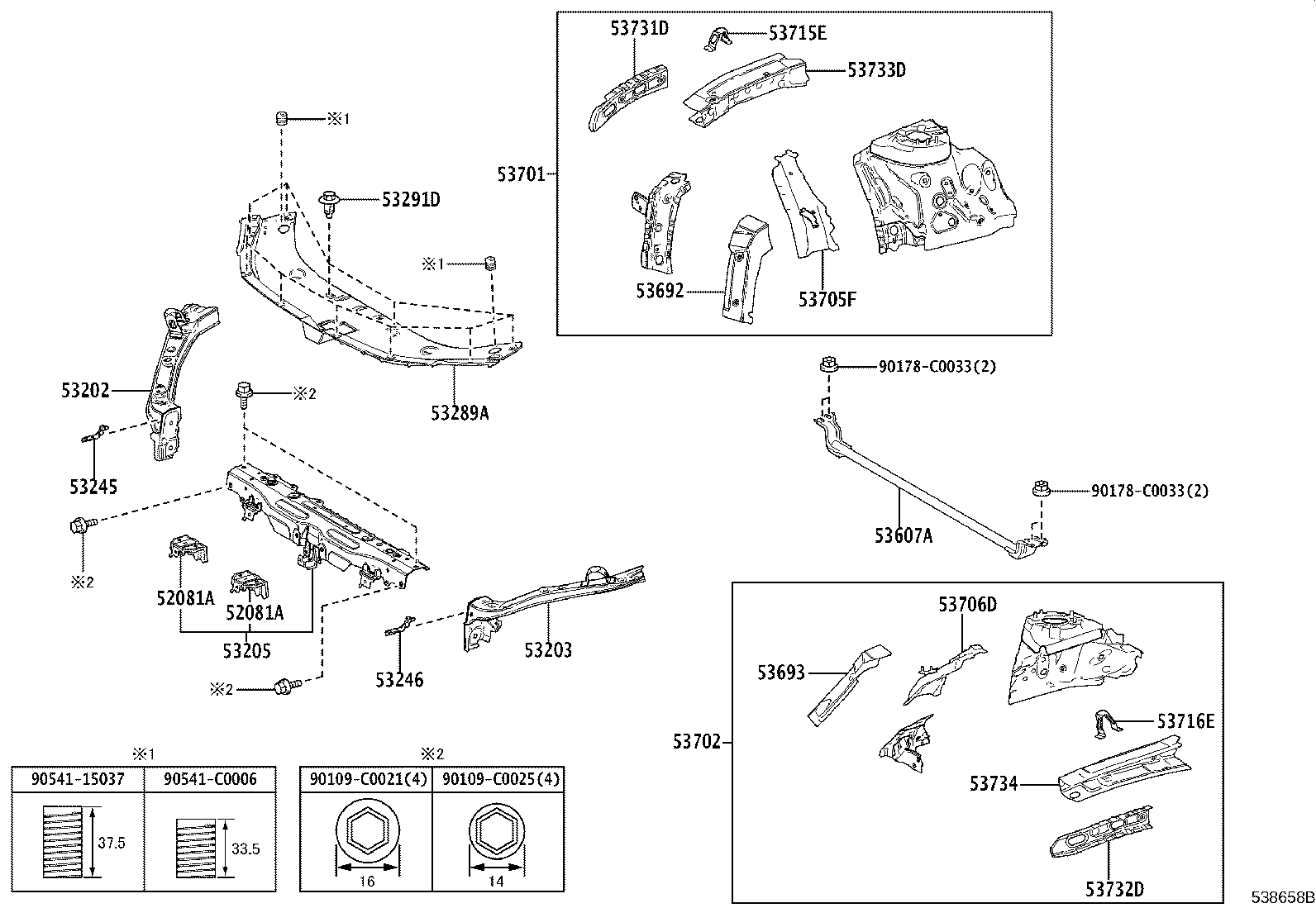

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52081A — Stay Sub-assy, Front Bumper, RH | ||||
| 52081-03020 |
Stay Sub-assy, Front Bumper, RH
2024-07 → —
|
BEJG10 | — | |
| 52081-03020 |
Stay Sub-assy, Front Bumper, RH
2023-01 → —
|
BEAM10 | — | |
| 53202 — Support Sub-assy, Radiator, RH | ||||
| 53202-03020 |
Support Sub-assy, Radiator, RH
2024-07 → —
|
BEJG10 | — | |
| 53202-03020 |
Support Sub-assy, Radiator, RH
2023-01 → —
|
BEAM10 | — | |
| 53203 — Support Sub-assy, Radiator, LH | ||||
| 53203-03020 |
Support Sub-assy, Radiator, LH
2024-07 → —
|
BEJG10 | — | |
| 53203-03020 |
Support Sub-assy, Radiator, LH
2023-01 → —
|
BEAM10 | — | |
| 53205 — Support Sub-assy, Radiator, Upper | ||||
| 53205-03020 |
Support Sub-assy, Radiator, Upper
2024-07 → —
|
BEJG10 | — | |
| 53205-03020 |
Support Sub-assy, Radiator, Upper
2023-01 → —
|
BEAM10 | — | |
| 53245 — Bracket, Headlamp, RH | ||||
| 53245-03010 |
Bracket, Headlamp, RH
2024-07 → —
|
BEJG10 | — | |
| 53245-03010 |
Bracket, Headlamp, RH
2023-01 → —
|
BEAM10 | — | |
| 53246 — Bracket, Headlamp, LH | ||||
| 53246-03010 |
Bracket, Headlamp, LH
2024-07 → —
|
BEJG10 | — | |
| 53246-03010 |
Bracket, Headlamp, LH
2023-01 → —
|
BEAM10 | — | |
| 53289A — Cover, Radiator Support Opening | ||||
| 53289-03010 |
Cover, Radiator Support Opening
2024-07 → —
|
BEJG10 | — | |
| 53289-03010 |
Cover, Radiator Support Opening
2023-01 → —
|
BEAM10 | — | |
| 53291D — Clip, Radiator Support TO Frame | ||||
| 90467-C0051 |
Clip, Radiator Support TO Frame
2024-07 → —
|
BEJG10 | — | |
| 90467-C0051 |
Clip, Radiator Support TO Frame
2023-01 → —
|
BEAM10 | — | |
| 53607A — Brace Sub-assy, Front Suspension, Upper Center | ||||
| 53607-03010 |
Brace Sub-assy, Front Suspension, Upper Center
2024-07 → —
|
BEJG10 | — | |
| 53607-03010 |
Brace Sub-assy, Front Suspension, Upper Center
2023-01 → —
|
BEAM10 | — | |
| 53692 — Bracket, Front Suspension Upper Brace | ||||
| 53781-03010 |
Bracket, Front Suspension Upper Brace
2024-07 → —
|
BEJG10 | — | |
| 53781-03010 |
Bracket, Front Suspension Upper Brace
2023-01 → —
|
BEAM10 | — | |
| 53693 — Bracket, Front Suspension Upper Brace | ||||
| 53782-03010 |
Bracket, Front Suspension Upper Brace
2024-07 → —
|
BEJG10 | — | |
| 53782-03010 |
Bracket, Front Suspension Upper Brace
2023-01 → —
|
BEAM10 | — | |
| 53701 — Apron Sub-assy, Front Fender, RH | ||||
| 53701-03032 |
Apron Sub-assy, Front Fender, RH
2024-07 → —
|
BEJG10 | — | |
| 53701-03030 |
Apron Sub-assy, Front Fender, RH
2023-01 → 2024-05
ended
|
BEAM10 | — | |
| 53701-03031 |
Apron Sub-assy, Front Fender, RH
2024-05 → 2024-08
ended
|
BEAM10 | — | |
| 53701-03032 |
Apron Sub-assy, Front Fender, RH
2024-09 → —
|
BEAM10 | — | |
| 53702 — Apron Sub-assy, Front Fender, LH | ||||
| 53702-03021 |
Apron Sub-assy, Front Fender, LH
2024-07 → —
|
BEJG10 | — | |
| 53702-03020 |
Apron Sub-assy, Front Fender, LH
2023-01 → 2024-05
ended
|
BEAM10 | — | |
| 53702-03021 |
Apron Sub-assy, Front Fender, LH
2024-05 → —
|
BEAM10 | — | |
| 53705F — Brace Sub-assy, Fender Apron, RH | ||||
| 53705-03010 |
Brace Sub-assy, Fender Apron, RH
2024-07 → —
|
BEJG10 | — | |
| 53705-03010 |
Brace Sub-assy, Fender Apron, RH
2023-01 → —
|
BEAM10 | — | |
| 53706D — Member Sub-assy, Front Apron TO Cowl Side, LH | ||||
| 53706-03020 |
Member Sub-assy, Front Apron TO Cowl Side, LH
2024-07 → —
|
BEJG10 | — | |
| 53706-03020 |
Member Sub-assy, Front Apron TO Cowl Side, LH
2023-01 → —
|
BEAM10 | — | |
| 53715E — Extension, Front Fender Apron, Rear RH | ||||
| 53715-03010 |
Extension, Front Fender Apron, Rear RH
2024-07 → —
|
BEJG10 | — | |
| 53715-03010 |
Extension, Front Fender Apron, Rear RH
2023-01 → —
|
BEAM10 | — | |
| 53716E — Extension, Front Fender Apron, Rear LH | ||||
| 53716-03010 |
Extension, Front Fender Apron, Rear LH
2024-07 → —
|
BEJG10 | — | |
| 53716-03010 |
Extension, Front Fender Apron, Rear LH
2023-01 → —
|
BEAM10 | — | |
| 53731D — Member, Front Apron TO Cowl Side, Upper RH | ||||
| 53731-03020 |
Member, Front Apron TO Cowl Side, Upper RH
2024-07 → —
|
BEJG10 | — | |
| 53731-03020 |
Member, Front Apron TO Cowl Side, Upper RH
2023-01 → —
|
BEAM10 | — | |
| 53732D — Member, Front Apron TO Cowl Side, Upper LH | ||||
| 53732-03020 |
Member, Front Apron TO Cowl Side, Upper LH
2024-07 → —
|
BEJG10 | — | |
| 53732-03020 |
Member, Front Apron TO Cowl Side, Upper LH
2023-01 → —
|
BEAM10 | — | |
| 53733D — Member, Front Apron TO Cowl Side, Lower Front RH | ||||
| 53733-03010 |
Member, Front Apron TO Cowl Side, Lower Front RH
2024-07 → —
|
BEJG10 | — | |
| 53733-03010 |
Member, Front Apron TO Cowl Side, Lower Front RH
2023-01 → —
|
BEAM10 | — | |
| 53734 — Patch, Front Fender Apron, NO.4 | ||||
| 53734-03010 |
Patch, Front Fender Apron, NO.4
2024-07 → —
|
BEJG10 | — | |
| 53734-03010 |
Patch, Front Fender Apron, NO.4
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
