Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

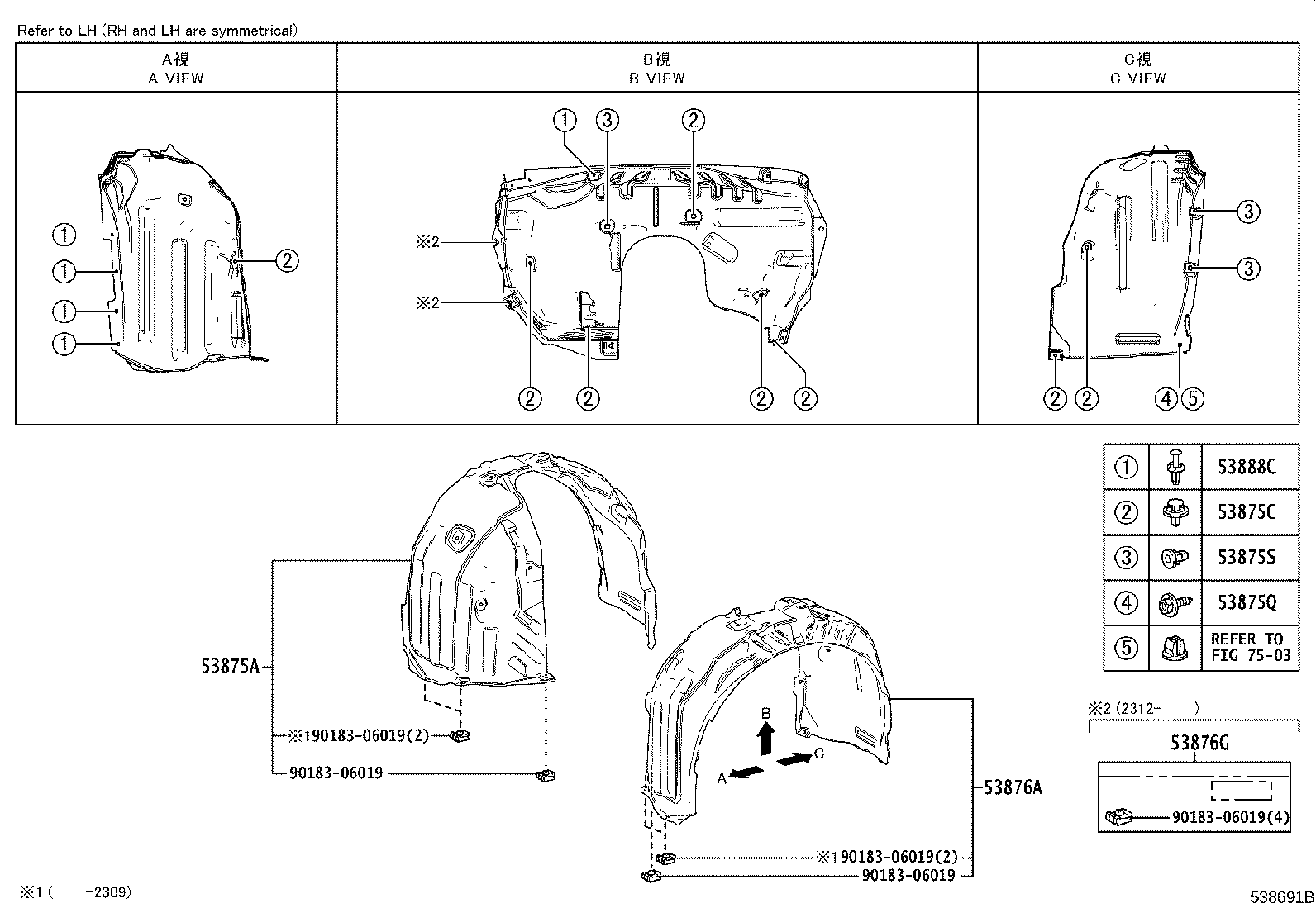

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53875A — Liner, Front Fender, RH | ||||
| 53875-03021 |
Liner, Front Fender, RH
2024-07 → —
|
BEJG10 | — | |
| 53875-03020 |
Liner, Front Fender, RH
2023-01 → 2023-12
ended
|
BEAM10 | — | |
| 53875-03021 |
Liner, Front Fender, RH
2023-12 → —
|
BEAM10 | — | |
| 53875C — Clip, Front Fender Liner | ||||
| 90467-C0043 |
Clip, Front Fender Liner
2024-07 → —
|
BEJG10 | — | |
| 90467-C0043 |
Clip, Front Fender Liner
2023-01 → —
|
BEAM10 | — | |
| 53875Q — Screw, NO.2 | ||||
| 90159-60623 |
Screw, NO.2
2024-07 → —
|
BEJG10 | — | |
| 90159-60623 |
Screw, NO.2
2023-01 → —
|
BEAM10 | — | |
| 53875S — Grommet, NO.1 | ||||
| 90189-C0022 |
Grommet, NO.1
2024-07 → —
|
BEJG10 | — | |
| 90189-C0022 |
Grommet, NO.1
2023-01 → —
|
BEAM10 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-03021 |
Liner, Front Fender, LH
2024-07 → —
|
BEJG10 | — | |
| 53876-03020 |
Liner, Front Fender, LH
2023-01 → 2023-12
ended
|
BEAM10 | — | |
| 53876-03021 |
Liner, Front Fender, LH
2023-12 → —
|
BEAM10 | — | |
| 53876G — Nut, NO.1 | ||||
| 52677-32030 |
Nut, NO.1
2024-07 → —
|
BEJG10 | — | |
| 52677-32030 |
Nut, NO.1
2023-12 → —
|
BEAM10 | — | |
| 53888C — Spacer, Front Fender | ||||
| 90467-C0048 |
Spacer, Front Fender
2024-07 → —
|
BEJG10 | — | |
| 90467-C0048 |
Spacer, Front Fender
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
