Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

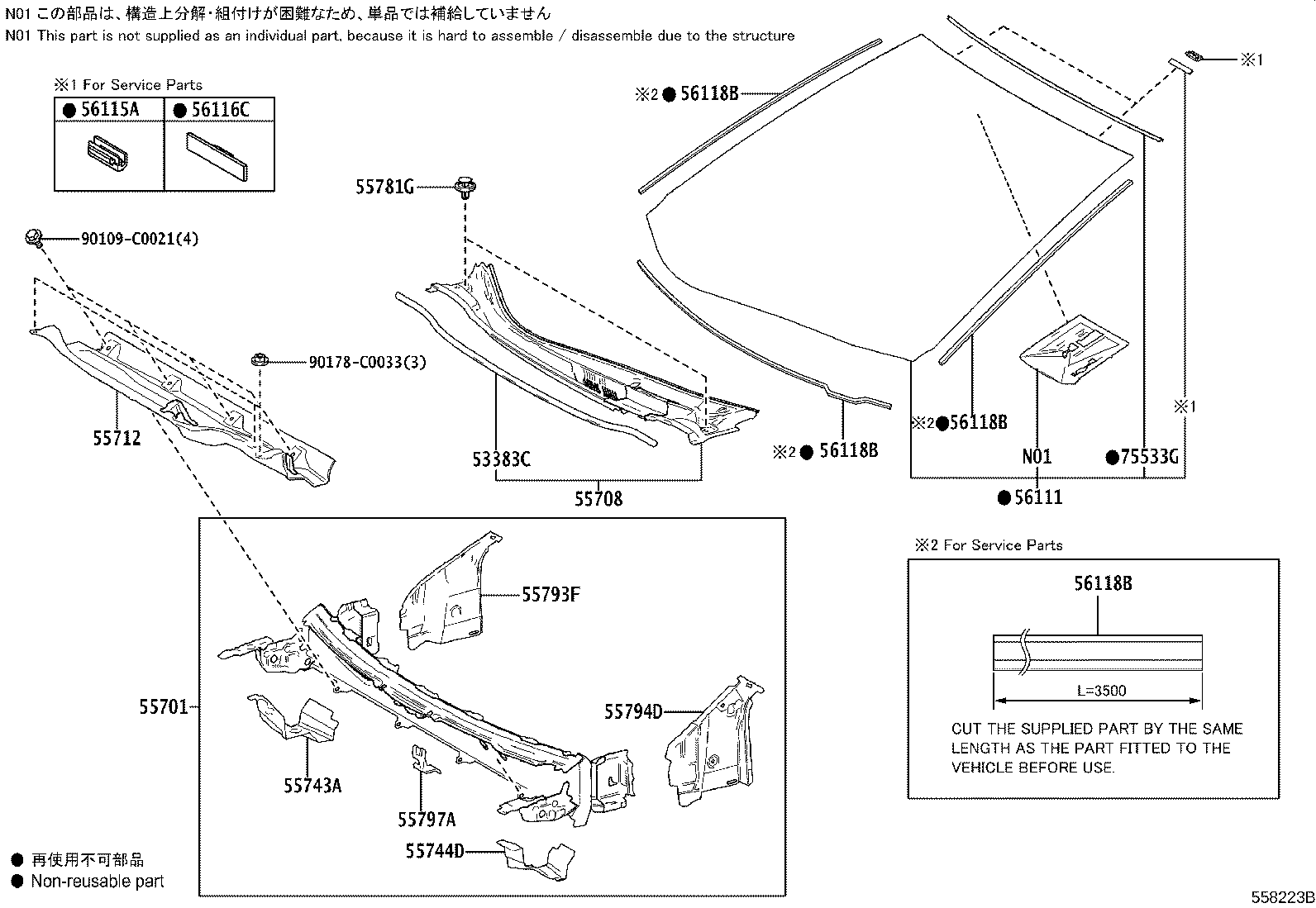

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53383C — Seal, Hood TO Cowl Top | ||||
| 53383-03020 |
Seal, Hood TO Cowl Top
2024-07 → —
|
BEJG10 | — | |
| 53383-03020 |
Seal, Hood TO Cowl Top
2023-01 → —
|
BEAM10 | — | |
| 55701 — Panel Sub-assy, Cowl | ||||
| 55701-03021 |
Panel Sub-assy, Cowl
2024-07 → —
|
BEJG10 | — | |
| 55701-03020 |
Panel Sub-assy, Cowl
2023-01 → 2023-06
ended
|
BEAM10 | — | |
| 55701-03021 |
Panel Sub-assy, Cowl
2023-07 → —
|
BEAM10 | — | |
| 55708 — Louver Sub-assy, Cowl Top Ventilator | ||||
| 55708-03010 |
Louver Sub-assy, Cowl Top Ventilator
2024-07 → —
|
BEJG10 | — | |
| 55708-03010 |
Louver Sub-assy, Cowl Top Ventilator
2023-01 → —
|
BEAM10 | — | |
| 55712 — Panel, Cowl Top Outside, Front | ||||
| 55704-03012 |
Panel, Cowl Top Outside, Front
2024-07 → —
|
BEJG10 | — | |
| 55704-03010 |
Panel, Cowl Top Outside, Front
2023-01 → 2024-04
ended
|
BEAM10 | — | |
| 55704-03011 |
Panel, Cowl Top Outside, Front
2024-05 → 2024-06
ended
|
BEAM10 | — | |
| 55704-03012 |
Panel, Cowl Top Outside, Front
2024-07 → —
|
BEAM10 | — | |
| 55743A — Extension, Cowl TO Cowl Side, RH | ||||
| 55743-03010 |
Extension, Cowl TO Cowl Side, RH
2024-07 → —
|
BEJG10 | — | |
| 55743-03010 |
Extension, Cowl TO Cowl Side, RH
2023-01 → —
|
BEAM10 | — | |
| 55744D — Extension, Cowl TO Cowl Side, LH | ||||
| 55744-03010 |
Extension, Cowl TO Cowl Side, LH
2024-07 → —
|
BEJG10 | — | |
| 55744-03010 |
Extension, Cowl TO Cowl Side, LH
2023-01 → —
|
BEAM10 | — | |
| 55781G — Clip, Cowl Top Ventilator Louver | ||||
| 90467-C0043 |
Clip, Cowl Top Ventilator Louver
2024-07 → —
|
BEJG10 | — | |
| 90467-C0043 |
Clip, Cowl Top Ventilator Louver
2023-01 → —
|
BEAM10 | — | |
| 55793F — Cover, Cowl Reinforcement, Upper NO.2 RH | ||||
| 55793-03011 |
Cover, Cowl Reinforcement, Upper NO.2 RH
2024-07 → —
|
BEJG10 | — | |
| 55793-03010 |
Cover, Cowl Reinforcement, Upper NO.2 RH
2023-01 → 2023-06
ended
|
BEAM10 | — | |
| 55793-03011 |
Cover, Cowl Reinforcement, Upper NO.2 RH
2023-07 → —
|
BEAM10 | — | |
| 55794D — Cover, Cowl Reinforcement, Upper NO.2 LH | ||||
| 55794-03010 |
Cover, Cowl Reinforcement, Upper NO.2 LH
2024-07 → —
|
BEJG10 | — | |
| 55794-03010 |
Cover, Cowl Reinforcement, Upper NO.2 LH
2023-01 → —
|
BEAM10 | — | |
| 55797A — Seal, Cowl Water Extract | ||||
| 55797-03010 |
Seal, Cowl Water Extract
2024-07 → —
|
BEJG10 | — | |
| 55797-03010 |
Seal, Cowl Water Extract
2023-01 → —
|
BEAM10 | — | |
| 56111 — Glass, Windshield | ||||
| 56101-03070 |
Glass, Windshield
2024-07 → —
|
BEJG10 M,N | — | |
| 56101-03080 |
Glass, Windshield
2024-07 → —
|
BEJG10 J | — | |
| 56101-03090 |
Glass, Windshield
2024-07 → —
|
BEJG10 H | — | |
| 56101-03030 |
Glass, Windshield
2023-01 → —
|
BEAM10 M,N | — | |
| 56101-03040 |
Glass, Windshield
2023-01 → —
|
BEAM10 J | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| 56115-30100 |
Stopper, Windshield Glass, NO.1
2024-07 → —
|
BEJG10 | — | |
| 56115-30100 |
Stopper, Windshield Glass, NO.1
2023-01 → —
|
BEAM10 | — | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2024-07 → —
|
BEJG10 | — | |
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2023-01 → —
|
BEAM10 | — | |
| 56118B — Dam, Window Glass Adhesive, NO.2 | ||||
| 56117-64010 note |
Dam, Window Glass Adhesive, NO.2
2024-07 → —
|
BEJG10 | — | |
| 56117-64010 note |
Dam, Window Glass Adhesive, NO.2
2023-01 → —
|
BEAM10 | — | |
| 75533G — Moulding, Windshield, Outside | ||||
| 75531-03020 |
Moulding, Windshield, Outside
2024-07 → —
|
BEJG10 | — | |
| 75531-03020 |
Moulding, Windshield, Outside
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
