Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

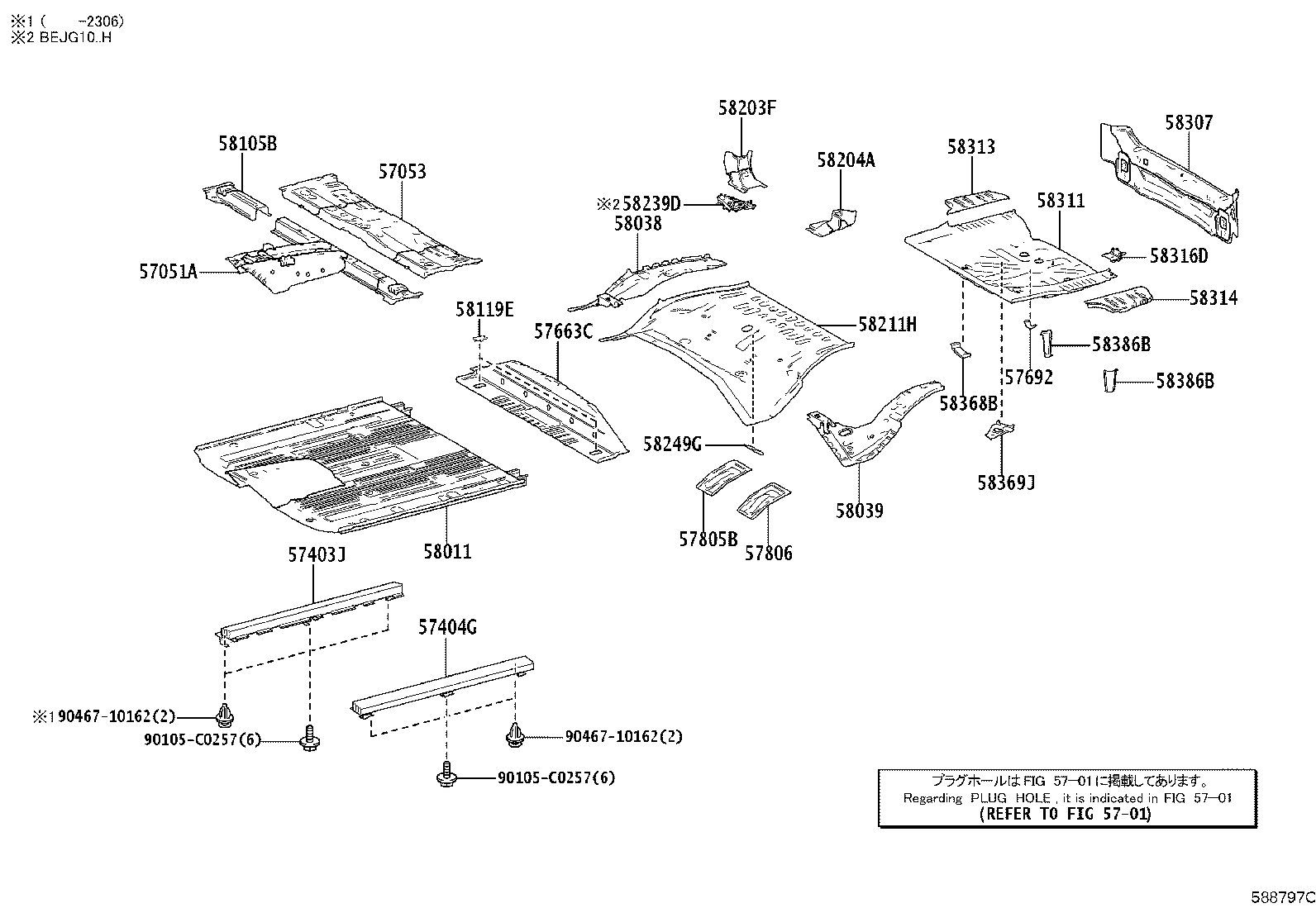

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 57051A — Member Sub-assy, Front Floor Cross, RH | ||||
| 57051-03030 |
Member Sub-assy, Front Floor Cross, RH
2024-07 → —
|
BEJG10 H | — | |
| 57051-03040 note |
Member Sub-assy, Front Floor Cross, RH
2024-07 → —
|
BEJG10 J,M,N | — | |
| 57051-03050 |
Member Sub-assy, Front Floor Cross, RH
2023-01 → 2023-08
ended
|
BEAM10 | — | |
| 57051-03051 |
Member Sub-assy, Front Floor Cross, RH
2023-09 → —
|
BEAM10 | — | |
| 57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH | ||||
| 57053-03031 |
Reinforcement Sub-assy, Front Floor Crossmember, RH
2024-07 → —
|
BEJG10 | — | |
| 57053-03030 |
Reinforcement Sub-assy, Front Floor Crossmember, RH
2023-01 → 2023-08
ended
|
BEAM10 | — | |
| 57053-03031 |
Reinforcement Sub-assy, Front Floor Crossmember, RH
2023-09 → —
|
BEAM10 | — | |
| 57403J — Reinforce Sub-assy, Floor Side, Inner RH | ||||
| 57403-03011 |
Reinforce Sub-assy, Floor Side, Inner RH
2024-07 → —
|
BEJG10 | — | |
| 57403-03010 |
Reinforce Sub-assy, Floor Side, Inner RH
2023-01 → 2023-06
ended
|
BEAM10 | — | |
| 57403-03011 |
Reinforce Sub-assy, Floor Side, Inner RH
2023-06 → —
|
BEAM10 | — | |
| 57404G — Reinforce Sub-assy, Floor Side, Inner LH | ||||
| 57404-03011 |
Reinforce Sub-assy, Floor Side, Inner LH
2024-07 → —
|
BEJG10 | — | |
| 57404-03010 |
Reinforce Sub-assy, Floor Side, Inner LH
2023-01 → 2023-06
ended
|
BEAM10 | — | |
| 57404-03011 |
Reinforce Sub-assy, Floor Side, Inner LH
2023-06 → —
|
BEAM10 | — | |
| 57663C — Member, Rear Floor Cross, Center | ||||
| 57663-03020 |
Member, Rear Floor Cross, Center
2024-07 → —
|
BEJG10 | — | |
| 57663-03020 |
Member, Rear Floor Cross, Center
2023-01 → —
|
BEAM10 | — | |
| 57692 — Bracket, Fuel Tank Mounting, Rear Center | ||||
| 57687-03020 |
Bracket, Fuel Tank Mounting, Rear Center
2024-07 → —
|
BEJG10 | — | |
| 57687-03020 |
Bracket, Fuel Tank Mounting, Rear Center
2023-01 → —
|
BEAM10 | — | |
| 57805B — Reinforcement Sub-assy, Belt Anchor, RH | ||||
| 57805-03021 |
Reinforcement Sub-assy, Belt Anchor, RH
2024-07 → —
|
BEJG10 | — | |
| 57805-03020 |
Reinforcement Sub-assy, Belt Anchor, RH
2023-01 → 2023-07
ended
|
BEAM10 | — | |
| 57805-03021 |
Reinforcement Sub-assy, Belt Anchor, RH
2023-08 → —
|
BEAM10 | — | |
| 57806 — Reinforcement Sub-assy, Belt Anchor, LH | ||||
| 57806-03022 |
Reinforcement Sub-assy, Belt Anchor, LH
2024-07 → —
|
BEJG10 | — | |
| 57806-03020 |
Reinforcement Sub-assy, Belt Anchor, LH
2023-01 → 2023-07
ended
|
BEAM10 | — | |
| 57806-03022 |
Reinforcement Sub-assy, Belt Anchor, LH
2023-08 → —
|
BEAM10 | — | |
| 58011 — Panel Sub-assy, Front Floor Side, RH | ||||
| 58011-03051 |
Panel Sub-assy, Front Floor Side, RH
2024-07 → —
|
BEJG10 | — | |
| 58011-03050 |
Panel Sub-assy, Front Floor Side, RH
2023-01 → —
|
BEAM10 | — | |
| 58038 — Reinforcement Sub-assy, Rear Floor Pan, RH | ||||
| 57807-03010 |
Reinforcement Sub-assy, Rear Floor Pan, RH
2024-07 → —
|
BEJG10 | — | |
| 57807-03010 |
Reinforcement Sub-assy, Rear Floor Pan, RH
2023-01 → —
|
BEAM10 | — | |
| 58039 — Reinforcement Sub-assy, Rear Floor Pan, LH | ||||
| 57808-03010 |
Reinforcement Sub-assy, Rear Floor Pan, LH
2024-07 → —
|
BEJG10 | — | |
| 57808-03010 |
Reinforcement Sub-assy, Rear Floor Pan, LH
2023-01 → —
|
BEAM10 | — | |
| 58105B — Panel Sub-assy, Front Floor Rear Upper Sub | ||||
| 58105-03010 |
Panel Sub-assy, Front Floor Rear Upper Sub
2024-07 → —
|
BEJG10 | — | |
| 58105-03010 |
Panel Sub-assy, Front Floor Rear Upper Sub
2023-01 → —
|
BEAM10 | — | |
| 58119E — Cover, Front Floor Side, Front | ||||
| 58119-03010 |
Cover, Front Floor Side, Front
2024-07 → —
|
BEJG10 | — | |
| 58119-03010 |
Cover, Front Floor Side, Front
2023-01 → —
|
BEAM10 | — | |
| 58203F — Bracket Sub-assy, Exhaust Pipe Mounting | ||||
| 58203-03011 |
Bracket Sub-assy, Exhaust Pipe Mounting
2024-07 → —
|
BEJG10 | — | |
| 58203-03010 |
Bracket Sub-assy, Exhaust Pipe Mounting
2023-01 → 2023-06
ended
|
BEAM10 | — | |
| 58203-03011 |
Bracket Sub-assy, Exhaust Pipe Mounting
2023-07 → —
|
BEAM10 | — | |
| 58204A — Reinforcement Sub-assy, Center Floor Panel, LH | ||||
| 58204-03010 |
Reinforcement Sub-assy, Center Floor Panel, LH
2024-07 → —
|
BEJG10 | — | |
| 58204-03010 |
Reinforcement Sub-assy, Center Floor Panel, LH
2023-01 → —
|
BEAM10 | — | |
| 58211H — Pan, Center Floor | ||||
| 58211-03051 |
Pan, Center Floor
2024-07 → —
|
BEJG10 | — | |
| 58211-03050 |
Pan, Center Floor
2023-01 → 2023-07
ended
|
BEAM10 | — | |
| 58211-03051 |
Pan, Center Floor
2023-07 → —
|
BEAM10 | — | |
| 58239D — Bracket, Cable Clamp | ||||
| 58239-03010 |
Bracket, Cable Clamp
2024-07 → —
|
BEJG10 H | — | |
| 58249G — Bracket, Cable Clamp, NO.2 | ||||
| 58249-03010 |
Bracket, Cable Clamp, NO.2
2024-07 → —
|
BEJG10 | — | |
| 58249-03010 |
Bracket, Cable Clamp, NO.2
2023-01 → —
|
BEAM10 | — | |
| 58307 — Panel Sub-assy, Body Lower Back | ||||
| 58307-03040 |
Panel Sub-assy, Body Lower Back
2024-07 → —
|
BEJG10 | — | |
| 58307-03040 |
Panel Sub-assy, Body Lower Back
2023-01 → —
|
BEAM10 | — | |
| 58311 — Pan, Rear Floor | ||||
| 58311-03020 |
Pan, Rear Floor
2024-08 → —
|
BEJG10 | — | |
| 58311-03021 |
Pan, Rear Floor
2024-07 → 2024-08
ended
|
BEJG10 | — | |
| 58311-03020 |
Pan, Rear Floor
2024-08 → —
|
BEAM10 | — | |
| 58311-03020 |
Pan, Rear Floor
2023-01 → 2024-06
ended
|
BEAM10 | — | |
| 58311-03021 |
Pan, Rear Floor
2024-06 → 2024-08
ended
|
BEAM10 | — | |
| 58313 — Panel, Rear Floor Side, RH | ||||
| 58313-03020 |
Panel, Rear Floor Side, RH
2024-08 → —
|
BEJG10 | — | |
| 58313-03021 |
Panel, Rear Floor Side, RH
2024-07 → 2024-08
ended
|
BEJG10 | — | |
| 58313-03020 |
Panel, Rear Floor Side, RH
2023-01 → 2024-06
ended
|
BEAM10 | — | |
| 58313-03020 |
Panel, Rear Floor Side, RH
2024-08 → —
|
BEAM10 | — | |
| 58313-03021 |
Panel, Rear Floor Side, RH
2024-06 → 2024-08
ended
|
BEAM10 | — | |
| 58314 — Panel, Rear Floor Side, LH | ||||
| 58314-03020 |
Panel, Rear Floor Side, LH
2024-07 → —
|
BEJG10 | — | |
| 58314-03020 |
Panel, Rear Floor Side, LH
2023-01 → —
|
BEAM10 | — | |
| 58316D — Extension, Rear Floor Pan, LH | ||||
| 58316-03010 |
Extension, Rear Floor Pan, LH
2024-07 → —
|
BEJG10 | — | |
| 58316-03010 |
Extension, Rear Floor Pan, LH
2023-01 → —
|
BEAM10 | — | |
| 58368B — Bracket, Fuel Tube, NO.2 | ||||
| 58368-03010 |
Bracket, Fuel Tube, NO.2
2024-07 → —
|
BEJG10 | — | |
| 58368-03010 |
Bracket, Fuel Tube, NO.2
2023-01 → —
|
BEAM10 | — | |
| 58369J — Bracket, Rear Floor Brace | ||||
| 58369-03010 |
Bracket, Rear Floor Brace
2024-07 → —
|
BEJG10 | — | |
| 58369-03010 |
Bracket, Rear Floor Brace
2023-01 → —
|
BEAM10 | — | |
| 58386B — Bracket, Rear Bumper Cover, NO.2 | ||||
| 58386-03020 |
Bracket, Rear Bumper Cover, NO.2
2024-07 → —
|
BEJG10 | — | |
| 58386-03020 |
Bracket, Rear Bumper Cover, NO.2
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
