Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

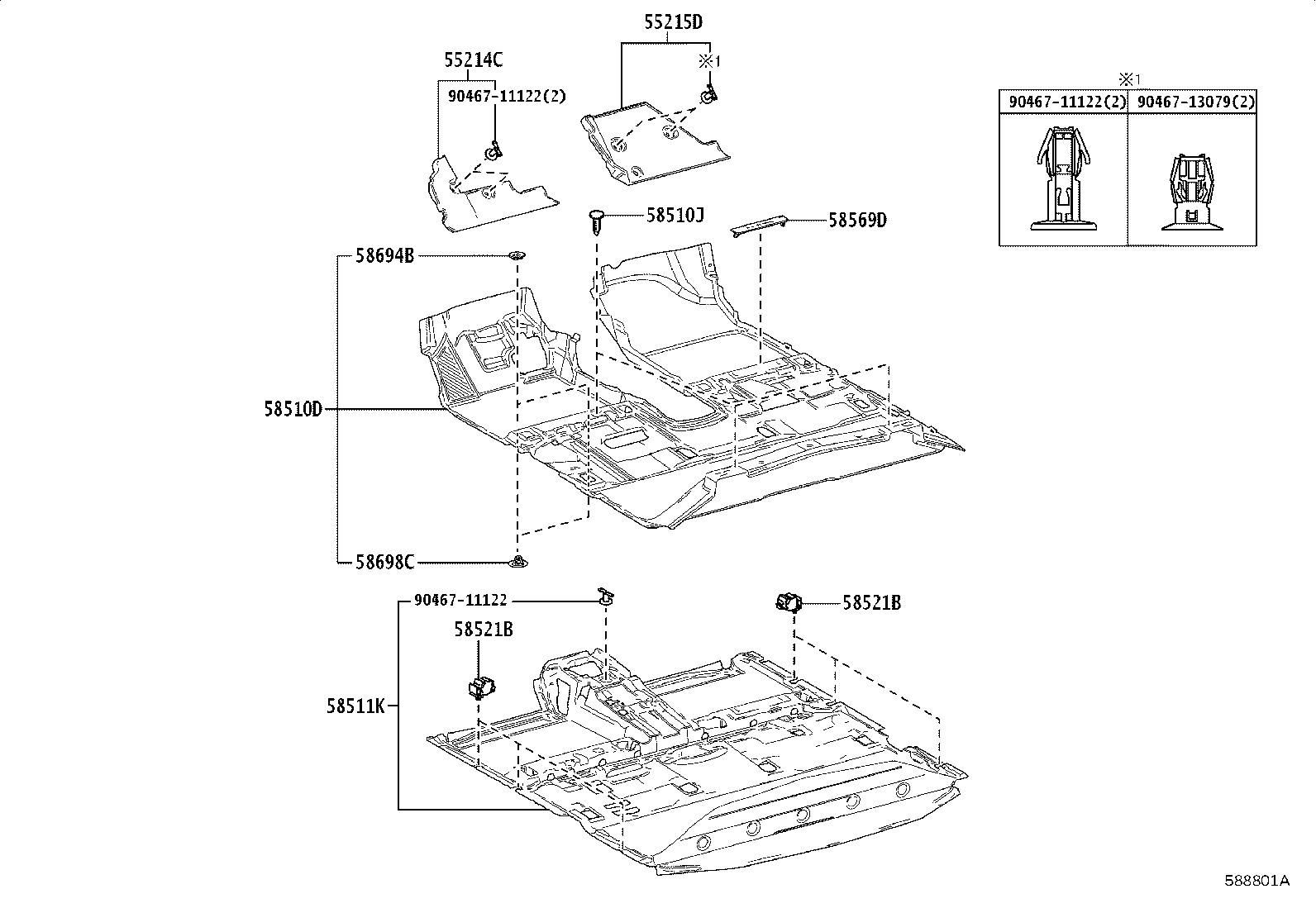

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55214C — Pad, Dash Panel Insulator, NO.2 | ||||
| 55214-03020 |
Pad, Dash Panel Insulator, NO.2
2024-07 → —
|
BEJG10 J,M,N | — | |
| 55214-03030 |
Pad, Dash Panel Insulator, NO.2
2024-07 → —
|
BEJG10 H | — | |
| 55214-03020 |
Pad, Dash Panel Insulator, NO.2
2023-01 → —
|
BEAM10 | — | |
| 55215D — Pad, Dash Panel Insulator, NO.3 | ||||
| 55215-03010 |
Pad, Dash Panel Insulator, NO.3
2024-07 → —
|
BEJG10 J,M,N | — | |
| 55215-03030 |
Pad, Dash Panel Insulator, NO.3
2024-07 → —
|
BEJG10 H | — | |
| 55215-03010 |
Pad, Dash Panel Insulator, NO.3
2023-01 → —
|
BEAM10 | — | |
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-03090-C0 note |
Carpet Assy, Floor, Front
2024-07 → —
|
BEJG10 J,M,N | — | |
| 58510-03130-C0 note |
Carpet Assy, Floor, Front
2024-07 → —
|
BEJG10 H | — | |
| 58510-03090-C0 note |
Carpet Assy, Floor, Front
2023-01 → —
|
BEAM10 | — | |
| 58510J — Clip (FOR FLOOR CARPET) | ||||
| 90467-C0059-C0 note |
Clip (FOR FLOOR CARPET)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0059-C0 note |
Clip (FOR FLOOR CARPET)
2023-01 → —
|
BEAM10 | — | |
| 58511K — Mat, Floor, NO.1 | ||||
| 58511-03010 |
Mat, Floor, NO.1
2024-07 → —
|
BEJG10 J,M,N | — | |
| 58511-03040 |
Mat, Floor, NO.1
2024-07 → —
|
BEJG10 H | — | |
| 58511-03010 |
Mat, Floor, NO.1
2023-01 → —
|
BEAM10 | — | |
| 58521B — Hook, Floor Carpet | ||||
| 58521-03030 |
Hook, Floor Carpet
2024-07 → —
|
BEJG10 | — | |
| 58521-03030 |
Hook, Floor Carpet
2023-01 → —
|
BEAM10 | — | |
| 58569D — Cover, Front Floor Caution Plate | ||||
| 58569-02170-C0 note |
Cover, Front Floor Caution Plate
2024-07 → —
|
BEJG10 | — | |
| 58569-02170-C0 note |
Cover, Front Floor Caution Plate
2023-01 → —
|
BEAM10 | — | |
| 58694B — Plate, Mat Set, Upper | ||||
| 58694-78010 |
Plate, Mat Set, Upper
2024-07 → —
|
BEJG10 | — | |
| 58694-78010 |
Plate, Mat Set, Upper
2023-01 → —
|
BEAM10 | — | |
| 58698C — Plate, Mat Set, Lower | ||||
| 58698-78010 |
Plate, Mat Set, Lower
2024-07 → —
|
BEJG10 | — | |
| 58698-78010 |
Plate, Mat Set, Lower
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
