Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

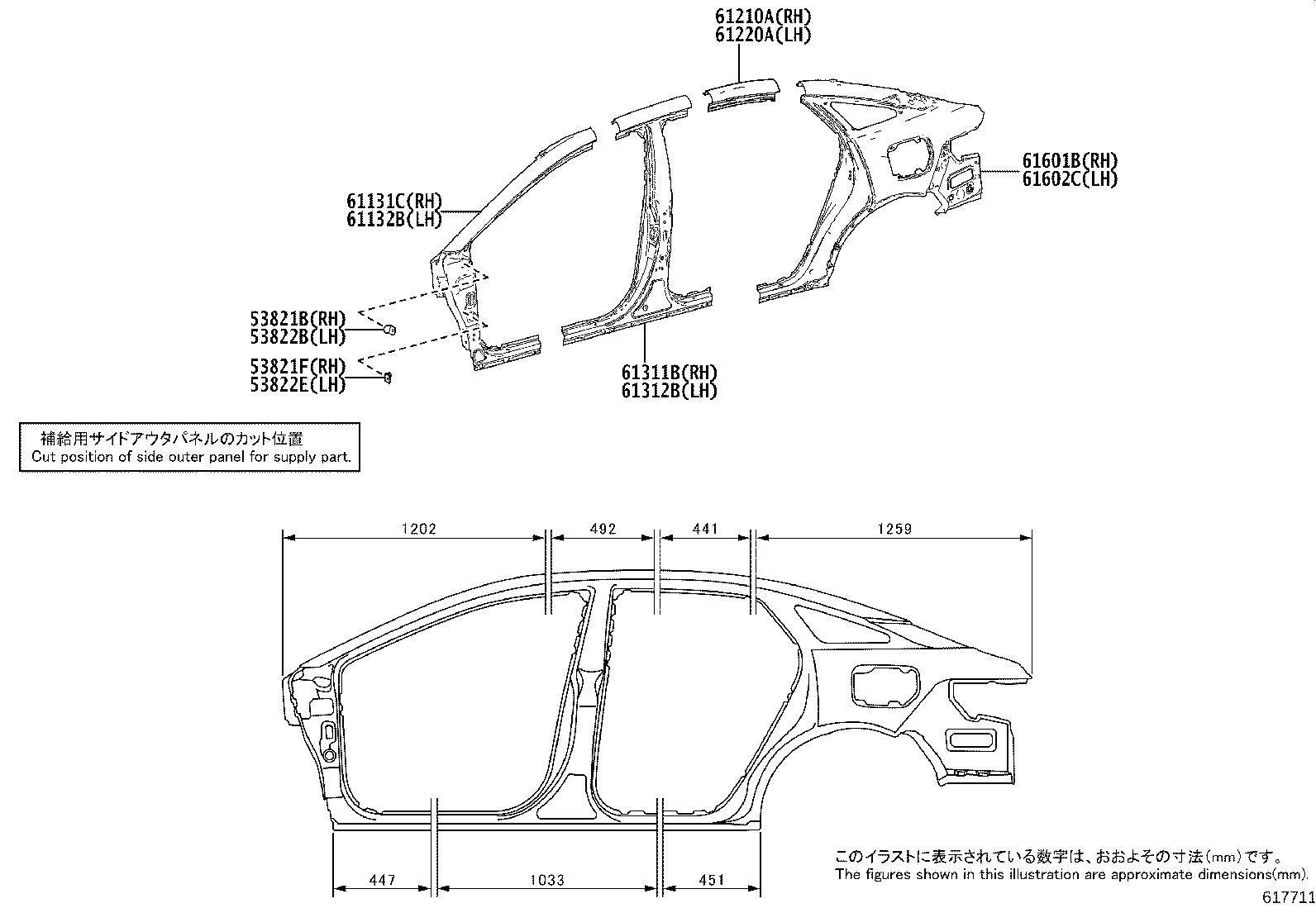

| 53821B — Bracket, Front Fender, Rear RH | ||||
| 53821-03010 |
Bracket, Front Fender, Rear RH
2024-07 → —
|
BEJG10 | — | |
| 53821-03010 |
Bracket, Front Fender, Rear RH
2023-01 → —
|
BEAM10 | — | |
| 53821F — Bracket, Front Fender, Rear NO.2 RH | ||||
| 53821-08020 |
Bracket, Front Fender, Rear NO.2 RH
2024-07 → —
|
BEJG10 | — | |
| 53821-08020 |
Bracket, Front Fender, Rear NO.2 RH
2023-01 → —
|
BEAM10 | — | |
| 53822B — Bracket, Front Fender, Rear LH | ||||
| 53821-03010 |
Bracket, Front Fender, Rear LH
2024-07 → —
|
BEJG10 | — | |
| 53821-03010 |
Bracket, Front Fender, Rear LH
2023-01 → —
|
BEAM10 | — | |
| 53822E — Bracket, Front Fender, Rear NO.2 LH | ||||
| 53821-08020 |
Bracket, Front Fender, Rear NO.2 LH
2024-07 → —
|
BEJG10 | — | |
| 53821-08020 |
Bracket, Front Fender, Rear NO.2 LH
2023-01 → —
|
BEAM10 | — | |
| 61131C — Pillar, Front Body, Outer RH | ||||
| 61131-03030 |
Pillar, Front Body, Outer RH
2024-07 → —
|
BEJG10 | — | |
| 61131-03030 |
Pillar, Front Body, Outer RH
2023-01 → —
|
BEAM10 | — | |
| 61132B — Pillar, Front Body, Outer LH | ||||
| 61132-03040 |
Pillar, Front Body, Outer LH
2024-07 → —
|
BEJG10 | — | |
| 61132-03040 |
Pillar, Front Body, Outer LH
2023-01 → —
|
BEAM10 | — | |
| 61210A — Rail Assy, Roof Side, RH | ||||
| 61210-03010 |
Rail Assy, Roof Side, RH
2024-07 → —
|
BEJG10 | — | |
| 61210-03010 |
Rail Assy, Roof Side, RH
2023-01 → —
|
BEAM10 | — | |
| 61220A — Rail Assy, Roof Side, LH | ||||
| 61220-03010 |
Rail Assy, Roof Side, LH
2024-07 → —
|
BEJG10 | — | |
| 61220-03010 |
Rail Assy, Roof Side, LH
2023-01 → —
|
BEAM10 | — | |
| 61311B — Pillar, Center Body, Outer RH | ||||
| 61311-03030 |
Pillar, Center Body, Outer RH
2024-07 → —
|
BEJG10 | — | |
| 61311-03030 |
Pillar, Center Body, Outer RH
2023-01 → —
|
BEAM10 | — | |
| 61312B — Pillar, Center Body, Outer LH | ||||
| 61312-03030 |
Pillar, Center Body, Outer LH
2024-07 → —
|
BEJG10 | — | |
| 61312-03030 |
Pillar, Center Body, Outer LH
2023-01 → —
|
BEAM10 | — | |
| 61601B — Panel Sub-assy, Quarter, RH | ||||
| 61601-03060 |
Panel Sub-assy, Quarter, RH
2024-07 → —
|
BEJG10 | — | |
| 61601-03060 |
Panel Sub-assy, Quarter, RH
2023-01 → —
|
BEAM10 | — | |
| 61602C — Panel Sub-assy, Quarter, LH | ||||
| 61602-03080 |
Panel Sub-assy, Quarter, LH
2024-07 → —
|
BEJG10 | — | |
| 61602-03080 |
Panel Sub-assy, Quarter, LH
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
