Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

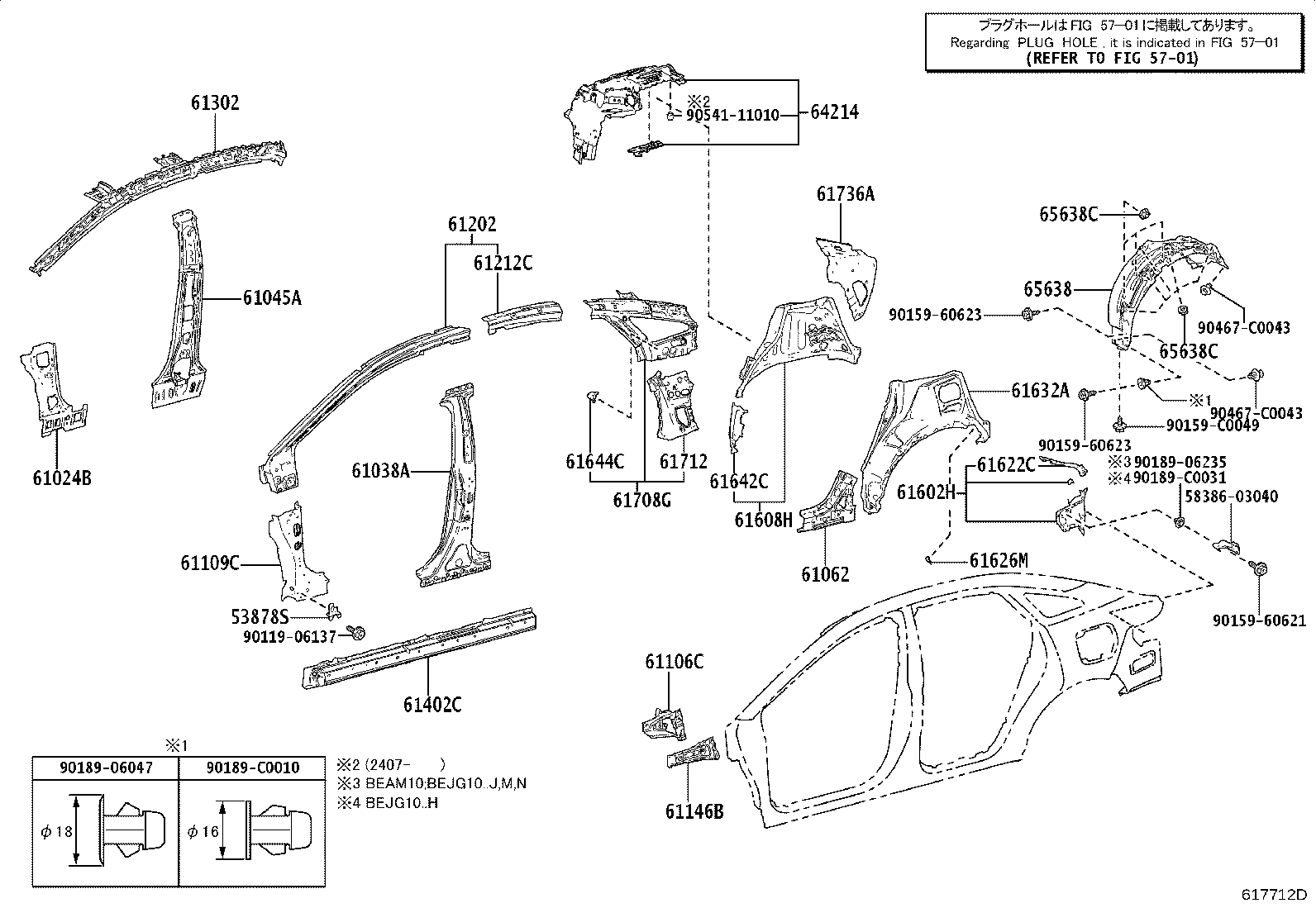

Exploded illustration 617712D 90467C0043 — not listed in this catalogue 90467C0043 — not listed in this catalogue 61109C — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH (3 parts) 61106C — PANEL SUB-ASSY, SIDE, NO.3 LH (3 parts) 61038A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH (2 parts) 61402C — PANEL SUB-ASSY, ROCKER, OUTER LH (3 parts) 61212C — RAIL, ROOF SIDE, LH (2 parts) 61644C — PATCH, QUARTER WHEEL HOUSE, NO.1 LH (2 parts) 61712 — PANEL, ROOF SIDE, OUTER LH (3 parts) 61062 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH (2 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (3 parts) 61622C — TROUGH, LUGGAGE COMPARTMENT OPENING, LH (2 parts) 61602H — PANEL SUB-ASSY, REAR BODY REAR SIDE, LH (2 parts) 61626M — BRACKET, QUARTER PANEL REINFORCEMENT, LH (2 parts) 61736A — PANEL, ROOF SIDE, INNER REAR LH (2 parts) 64214 — EXTENSION, PACKAGE TRAY STRAINER, LH (3 parts) 61642C — GUSSET, QUARTER WHEEL HOUSE, FRONT LH (2 parts) 61608H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH (2 parts) 61708G — PANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH (4 parts) 53878S — BRACKET, FRONT FENDER REAR SIDE PANEL, LOWER LH (2 parts) 61146B — GUSSET, FRONT BODY PILLAR, LOWER LH (3 parts) 61202 — RAIL SUB-ASSY, ROOF SIDE, LH (2 parts) 61302 — PILLAR SUB-ASSY, CENTER BODY, LH (7 parts) 61045A — PILLAR SUB-ASSY, NO.4 INNER, LH (2 parts) 61024B — PILLAR SUB-ASSY, FRONT BODY, INNER LH (3 parts) 65638C — CLIP, REAR WHEEL HOUSE LINER (2 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (2 parts) 65638C — CLIP, REAR WHEEL HOUSE LINER (2 parts) 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 90159C0049 — not listed in this catalogue 9018906235 — not listed in this catalogue 9015960621 — not listed in this catalogue 5838603040 — not listed in this catalogue 9018906047 — not listed in this catalogue 90189C0010 — not listed in this catalogue 5701 — not listed in this catalogue 9011906137 — not listed in this catalogue 9054111010 — not listed in this catalogue 90189C0031 — not listed in this catalogue
617712D · 26 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
65 parts on this figure
Part number Description Fitment Price
53878S — Bracket, Front Fender Rear Side Panel, Lower LH
53878-03050 Bracket, Front Fender Rear Side Panel, Lower LH
2024-07 → —
BEJG10 —
53878-03050 Bracket, Front Fender Rear Side Panel, Lower LH
2023-01 → —
BEAM10 —
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-03031 Pillar Sub-assy, Front Body, Inner LH
2024-07 → —
BEJG10 —
61024-03030 Pillar Sub-assy, Front Body, Inner LH
2023-01 → 2023-09 ended
BEAM10 —
61024-03031 Pillar Sub-assy, Front Body, Inner LH
2023-09 → —
BEAM10 —
61038A — Reinforcement Sub-assy, Center Body Pillar, LH
61038-03901 Reinforcement Sub-assy, Center Body Pillar, LH
2024-07 → —
BEJG10 —
61038-03901 Reinforcement Sub-assy, Center Body Pillar, LH
2023-01 → —
BEAM10 —
61045A — Pillar Sub-assy, NO.4 Inner, LH
61045-03030 Pillar Sub-assy, NO.4 Inner, LH
2024-07 → —
BEJG10 —
61045-03030 Pillar Sub-assy, NO.4 Inner, LH
2023-01 → —
BEAM10 —
61062 — Reinforcement Sub-assy, Wheel House, LH
61062-03010 Reinforcement Sub-assy, Wheel House, LH
2024-07 → —
BEJG10 —
61062-03010 Reinforcement Sub-assy, Wheel House, LH
2023-01 → —
BEAM10 —
61106C — Panel Sub-assy, Side, NO.3 LH
61106-03031 Panel Sub-assy, Side, NO.3 LH
2024-07 → —
BEJG10 —
61106-03030 Panel Sub-assy, Side, NO.3 LH
2023-01 → 2023-07 ended
BEAM10 —
61106-03031 Panel Sub-assy, Side, NO.3 LH
2023-07 → —
BEAM10 —
61109C — Reinforcement Sub-assy, Front Pillar, Lower LH
61109-03021 Reinforcement Sub-assy, Front Pillar, Lower LH
2024-07 → —
BEJG10 —
61109-03020 Reinforcement Sub-assy, Front Pillar, Lower LH
2023-01 → 2023-07 ended
BEAM10 —
61109-03021 Reinforcement Sub-assy, Front Pillar, Lower LH
2023-07 → —
BEAM10 —
61146B — Gusset, Front Body Pillar, Lower LH
61146-03011 Gusset, Front Body Pillar, Lower LH
2024-07 → —
BEJG10 —
61146-03010 Gusset, Front Body Pillar, Lower LH
2023-01 → 2023-07 ended
BEAM10 —
61146-03011 Gusset, Front Body Pillar, Lower LH
2023-07 → —
BEAM10 —
61202 — Rail Sub-assy, Roof Side, LH
61202-03901 Rail Sub-assy, Roof Side, LH
2024-07 → —
BEJG10 —
61202-03901 Rail Sub-assy, Roof Side, LH
2023-01 → —
BEAM10 —
61212C — Rail, Roof Side, LH
61212-03030 Rail, Roof Side, LH
2024-07 → —
BEJG10 —
61212-03030 Rail, Roof Side, LH
2023-01 → —
BEAM10 —
61302 — Pillar Sub-assy, Center Body, LH
61302-03050 note Pillar Sub-assy, Center Body, LH
2024-07 → —
BEJG10 M —
61302-03050 note Pillar Sub-assy, Center Body, LH
2024-07 → —
BEJG10 M —
61302-03060 Pillar Sub-assy, Center Body, LH
2024-07 → —
BEJG10 J,M,N —
61302-03080 Pillar Sub-assy, Center Body, LH
2024-07 → —
BEJG10 H —
61302-03050 note Pillar Sub-assy, Center Body, LH
2023-01 → —
BEAM10 M —
61302-03050 note Pillar Sub-assy, Center Body, LH
2024-04 → —
BEAM10 M —
61302-03060 Pillar Sub-assy, Center Body, LH
2023-01 → —
BEAM10 —
61402C — Panel Sub-assy, Rocker, Outer LH
61402-03902 Panel Sub-assy, Rocker, Outer LH
2024-07 → —
BEJG10 —
61402-03900 Panel Sub-assy, Rocker, Outer LH
2023-01 → 2023-07 ended
BEAM10 —
61402-03901 Panel Sub-assy, Rocker, Outer LH
2023-07 → —
BEAM10 —
61602H — Panel Sub-assy, Rear Body Rear Side, LH
61602-03060 Panel Sub-assy, Rear Body Rear Side, LH
2024-07 → —
BEJG10 —
61602-03060 Panel Sub-assy, Rear Body Rear Side, LH
2023-01 → —
BEAM10 —
61608H — Panel Sub-assy, Quarter Wheel House, Inner LH
61608-03010 Panel Sub-assy, Quarter Wheel House, Inner LH
2024-07 → —
BEJG10 —
61608-03010 Panel Sub-assy, Quarter Wheel House, Inner LH
2023-01 → —
BEAM10 —
61622C — Trough, Luggage Compartment Opening, LH
61622-03010 Trough, Luggage Compartment Opening, LH
2024-07 → —
BEJG10 —
61622-03010 Trough, Luggage Compartment Opening, LH
2023-01 → —
BEAM10 —
61626M — Bracket, Quarter Panel Reinforcement, LH
61626-03010 Bracket, Quarter Panel Reinforcement, LH
2024-07 → —
BEJG10 —
61626-03010 Bracket, Quarter Panel Reinforcement, LH
2023-01 → —
BEAM10 —
61632A — Panel, Quarter Wheel House, Outer LH
61632-03010 Panel, Quarter Wheel House, Outer LH
2024-07 → —
BEJG10 J,M,N —
61632-03030 Panel, Quarter Wheel House, Outer LH
2024-07 → —
BEJG10 H —
61632-03010 Panel, Quarter Wheel House, Outer LH
2023-01 → —
BEAM10 —
61642C — Gusset, Quarter Wheel House, Front LH
61642-03010 Gusset, Quarter Wheel House, Front LH
2024-07 → —
BEJG10 —
61642-03010 Gusset, Quarter Wheel House, Front LH
2023-01 → —
BEAM10 —
61644C — Patch, Quarter Wheel House, NO.1 LH
61644-03010 Patch, Quarter Wheel House, NO.1 LH
2024-07 → —
BEJG10 —
61644-03010 Patch, Quarter Wheel House, NO.1 LH
2023-01 → —
BEAM10 —
61708G — Panel Sub-assy, Roof Side, Inner Front LH
61708-03902 Panel Sub-assy, Roof Side, Inner Front LH
2024-07 → —
BEJG10 —
61708-03900 Panel Sub-assy, Roof Side, Inner Front LH
2023-01 → 2023-07 ended
BEAM10 —
61708-03901 Panel Sub-assy, Roof Side, Inner Front LH
2023-07 → 2023-11 ended
BEAM10 —
61708-03902 Panel Sub-assy, Roof Side, Inner Front LH
2023-11 → —
BEAM10 —
61712 — Panel, Roof Side, Outer LH
61712-03011 Panel, Roof Side, Outer LH
2024-07 → —
BEJG10 —
61712-03010 Panel, Roof Side, Outer LH
2023-01 → 2023-11 ended
BEAM10 —
61712-03011 Panel, Roof Side, Outer LH
2023-11 → —
BEAM10 —
61736A — Panel, Roof Side, Inner Rear LH
61736-03020 Panel, Roof Side, Inner Rear LH
2024-07 → —
BEJG10 —
61736-03020 Panel, Roof Side, Inner Rear LH
2023-01 → —
BEAM10 —
64214 — Extension, Package Tray Strainer, LH
64202-03021 Extension, Package Tray Strainer, LH
2024-07 → —
BEJG10 —
64202-03020 Extension, Package Tray Strainer, LH
2023-01 → 2023-11 ended
BEAM10 —
64202-03021 Extension, Package Tray Strainer, LH
2023-11 → —
BEAM10 —
65638 — Liner, Rear Wheel House, LH
65638-03010 Liner, Rear Wheel House, LH
2024-07 → —
BEJG10 —
65638-03010 Liner, Rear Wheel House, LH
2023-01 → —
BEAM10 —
65638C — Clip, Rear Wheel House Liner
90467-C0050 Clip, Rear Wheel House Liner
2024-07 → —
BEJG10 —
90467-C0050 Clip, Rear Wheel House Liner
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
