Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

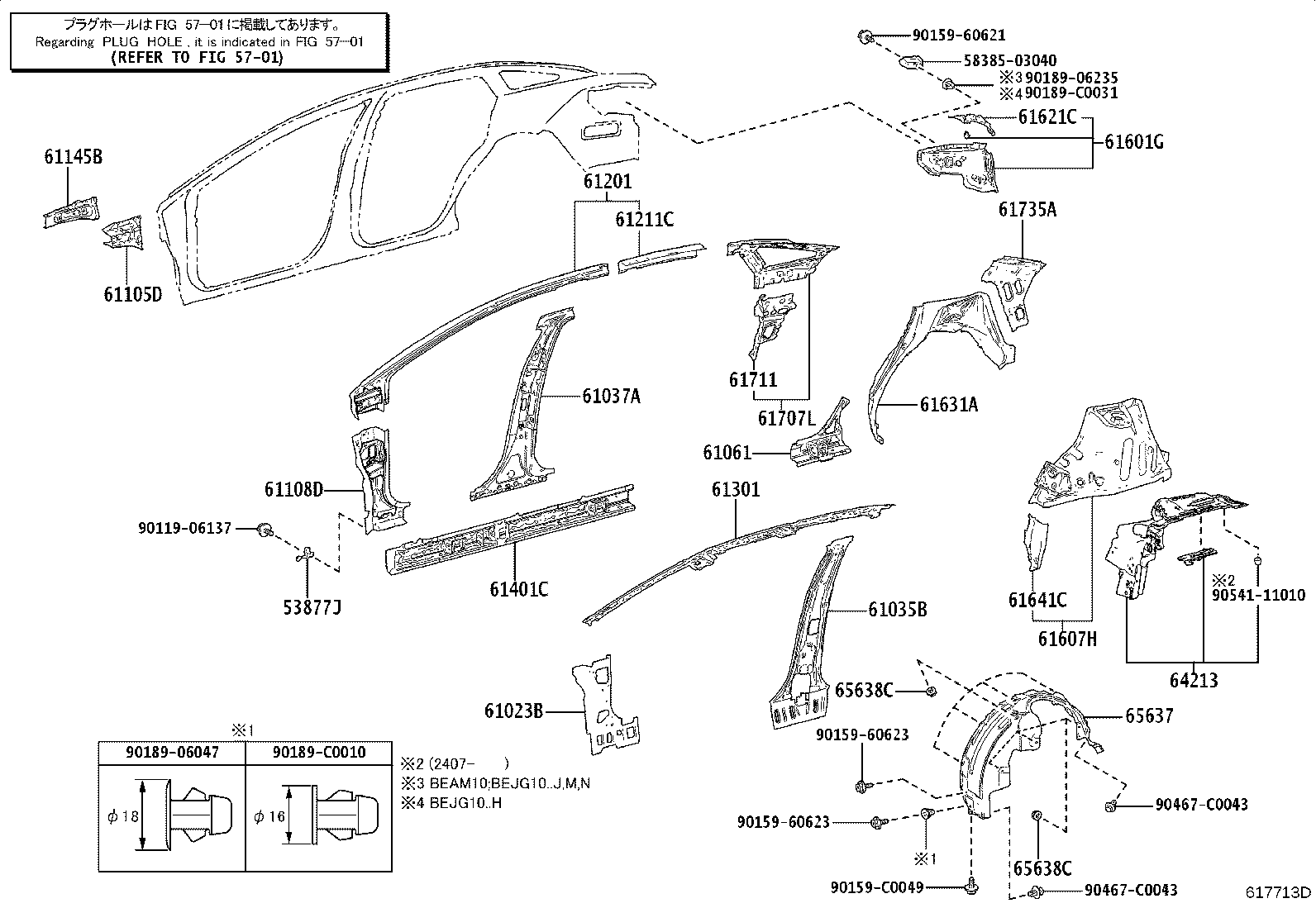

Exploded illustration 617713D 61401C — PANEL SUB-ASSY, ROCKER, OUTER RH (3 parts) 61023B — PILLAR SUB-ASSY, FRONT BODY, INNER RH (3 parts) 61211C — RAIL, ROOF SIDE, RH (2 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (2 parts) 61108D — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH (3 parts) 61037A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH (2 parts) 61035B — PILLAR SUB-ASSY, NO.4 INNER, RH (2 parts) 61641C — GUSSET, QUARTER WHEEL HOUSE, FRONT RH (2 parts) 61607H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH (2 parts) 65637 — LINER, REAR WHEEL HOUSE, RH (2 parts) 64213 — EXTENSION, PACKAGE TRAY STRAINER, RH (3 parts) 65638C — CLIP, REAR WHEEL HOUSE LINER (2 parts) 65638C — CLIP, REAR WHEEL HOUSE LINER (2 parts) 61301 — PILLAR SUB-ASSY, CENTER BODY, RH (7 parts) 61061 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH (2 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (2 parts) 61105D — PANEL SUB-ASSY, SIDE, NO.3 RH (3 parts) 53877J — BRACKET, FRONT FENDER REAR SIDE PANEL, LOWER RH (2 parts) 61145B — GUSSET, FRONT BODY PILLAR, LOWER RH (3 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (2 parts) 61707L — PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH (3 parts) 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 5838503040 — not listed in this catalogue 9015960621 — not listed in this catalogue 90159C0049 — not listed in this catalogue 90467C0043 — not listed in this catalogue 90467C0043 — not listed in this catalogue 9018906047 — not listed in this catalogue 90189C0010 — not listed in this catalogue 61621C — TROUGH, LUGGAGE COMPARTMENT OPENING, RH (2 parts) 61601G — PANEL SUB-ASSY, REAR BODY REAR SIDE, RH (2 parts) 61735A — PANEL, ROOF SIDE, INNER REAR RH (2 parts) 5701 — not listed in this catalogue 9011906137 — not listed in this catalogue 9054111010 — not listed in this catalogue 9018906235 — not listed in this catalogue 90189C0031 — not listed in this catalogue
617713D · 24 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
53877J — Bracket, Front Fender Rear Side Panel, Lower RH
53877-03060 Bracket, Front Fender Rear Side Panel, Lower RH
2024-07 → —
BEJG10 —
53877-03060 Bracket, Front Fender Rear Side Panel, Lower RH
2023-01 → —
BEAM10 —
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-03011 Pillar Sub-assy, Front Body, Inner RH
2024-07 → —
BEJG10 —
61023-03010 Pillar Sub-assy, Front Body, Inner RH
2023-01 → 2023-09 ended
BEAM10 —
61023-03011 Pillar Sub-assy, Front Body, Inner RH
2023-09 → —
BEAM10 —
61035B — Pillar Sub-assy, NO.4 Inner, RH
61035-03040 Pillar Sub-assy, NO.4 Inner, RH
2024-07 → —
BEJG10 —
61035-03040 Pillar Sub-assy, NO.4 Inner, RH
2023-01 → —
BEAM10 —
61037A — Reinforcement Sub-assy, Center Body Pillar, RH
61037-03901 Reinforcement Sub-assy, Center Body Pillar, RH
2024-07 → —
BEJG10 —
61037-03901 Reinforcement Sub-assy, Center Body Pillar, RH
2023-01 → —
BEAM10 —
61061 — Reinforcement Sub-assy, Wheel House, RH
61061-03010 Reinforcement Sub-assy, Wheel House, RH
2024-07 → —
BEJG10 —
61061-03010 Reinforcement Sub-assy, Wheel House, RH
2023-01 → —
BEAM10 —
61105D — Panel Sub-assy, Side, NO.3 RH
61105-03051 Panel Sub-assy, Side, NO.3 RH
2024-07 → —
BEJG10 —
61105-03050 Panel Sub-assy, Side, NO.3 RH
2023-01 → 2023-07 ended
BEAM10 —
61105-03051 Panel Sub-assy, Side, NO.3 RH
2023-07 → —
BEAM10 —
61108D — Reinforcement Sub-assy, Front Pillar, Lower RH
61108-03051 Reinforcement Sub-assy, Front Pillar, Lower RH
2024-07 → —
BEJG10 —
61108-03050 Reinforcement Sub-assy, Front Pillar, Lower RH
2023-01 → 2023-07 ended
BEAM10 —
61108-03051 Reinforcement Sub-assy, Front Pillar, Lower RH
2023-07 → —
BEAM10 —
61145B — Gusset, Front Body Pillar, Lower RH
61145-03011 Gusset, Front Body Pillar, Lower RH
2024-07 → —
BEJG10 —
61145-03010 Gusset, Front Body Pillar, Lower RH
2023-01 → 2023-07 ended
BEAM10 —
61145-03011 Gusset, Front Body Pillar, Lower RH
2023-07 → —
BEAM10 —
61201 — Rail Sub-assy, Roof Side, RH
61201-03901 Rail Sub-assy, Roof Side, RH
2024-07 → —
BEJG10 —
61201-03901 Rail Sub-assy, Roof Side, RH
2023-01 → —
BEAM10 —
61211C — Rail, Roof Side, RH
61211-03060 Rail, Roof Side, RH
2024-07 → —
BEJG10 —
61211-03060 Rail, Roof Side, RH
2023-01 → —
BEAM10 —
61301 — Pillar Sub-assy, Center Body, RH
61301-03060 note Pillar Sub-assy, Center Body, RH
2024-07 → —
BEJG10 M —
61301-03060 note Pillar Sub-assy, Center Body, RH
2024-07 → —
BEJG10 M —
61301-03070 Pillar Sub-assy, Center Body, RH
2024-07 → —
BEJG10 J,M,N —
61301-03090 Pillar Sub-assy, Center Body, RH
2024-07 → —
BEJG10 H —
61301-03060 note Pillar Sub-assy, Center Body, RH
2023-01 → —
BEAM10 M —
61301-03060 note Pillar Sub-assy, Center Body, RH
2024-04 → —
BEAM10 M —
61301-03070 Pillar Sub-assy, Center Body, RH
2023-01 → —
BEAM10 —
61401C — Panel Sub-assy, Rocker, Outer RH
61401-03902 Panel Sub-assy, Rocker, Outer RH
2024-07 → —
BEJG10 —
61401-03900 Panel Sub-assy, Rocker, Outer RH
2023-01 → 2023-07 ended
BEAM10 —
61401-03901 Panel Sub-assy, Rocker, Outer RH
2023-07 → —
BEAM10 —
61601G — Panel Sub-assy, Rear Body Rear Side, RH
61601-03040 Panel Sub-assy, Rear Body Rear Side, RH
2024-07 → —
BEJG10 —
61601-03040 Panel Sub-assy, Rear Body Rear Side, RH
2023-01 → —
BEAM10 —
61607H — Panel Sub-assy, Quarter Wheel House, Inner RH
61607-03030 Panel Sub-assy, Quarter Wheel House, Inner RH
2024-07 → —
BEJG10 —
61607-03030 Panel Sub-assy, Quarter Wheel House, Inner RH
2023-01 → —
BEAM10 —
61621C — Trough, Luggage Compartment Opening, RH
61621-03010 Trough, Luggage Compartment Opening, RH
2024-07 → —
BEJG10 —
61621-03010 Trough, Luggage Compartment Opening, RH
2023-01 → —
BEAM10 —
61631A — Panel, Quarter Wheel House, Outer RH
61631-03020 Panel, Quarter Wheel House, Outer RH
2024-07 → —
BEJG10 —
61631-03020 Panel, Quarter Wheel House, Outer RH
2023-01 → —
BEAM10 —
61641C — Gusset, Quarter Wheel House, Front RH
61641-03020 Gusset, Quarter Wheel House, Front RH
2024-07 → —
BEJG10 —
61641-03020 Gusset, Quarter Wheel House, Front RH
2023-01 → —
BEAM10 —
61707L — Panel Sub-assy, Roof Side, Inner Front RH
61707-03901 Panel Sub-assy, Roof Side, Inner Front RH
2024-07 → —
BEJG10 —
61707-03900 Panel Sub-assy, Roof Side, Inner Front RH
2023-01 → 2023-07 ended
BEAM10 —
61707-03901 Panel Sub-assy, Roof Side, Inner Front RH
2023-07 → —
BEAM10 —
61711 — Panel, Roof Side, Outer RH
61711-03020 Panel, Roof Side, Outer RH
2024-07 → —
BEJG10 —
61711-03020 Panel, Roof Side, Outer RH
2023-01 → —
BEAM10 —
61735A — Panel, Roof Side, Inner Rear RH
61735-03040 Panel, Roof Side, Inner Rear RH
2024-07 → —
BEJG10 —
61735-03040 Panel, Roof Side, Inner Rear RH
2023-01 → —
BEAM10 —
64213 — Extension, Package Tray Strainer, RH
64201-03031 Extension, Package Tray Strainer, RH
2024-07 → —
BEJG10 —
64201-03030 Extension, Package Tray Strainer, RH
2023-01 → 2023-11 ended
BEAM10 —
64201-03031 Extension, Package Tray Strainer, RH
2023-12 → —
BEAM10 —
65637 — Liner, Rear Wheel House, RH
65637-03010 Liner, Rear Wheel House, RH
2024-07 → —
BEJG10 —
65637-03010 Liner, Rear Wheel House, RH
2023-01 → —
BEAM10 —
65638C — Clip, Rear Wheel House Liner
90467-C0050 Clip, Rear Wheel House Liner
2024-07 → —
BEJG10 —
90467-C0050 Clip, Rear Wheel House Liner
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
