Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

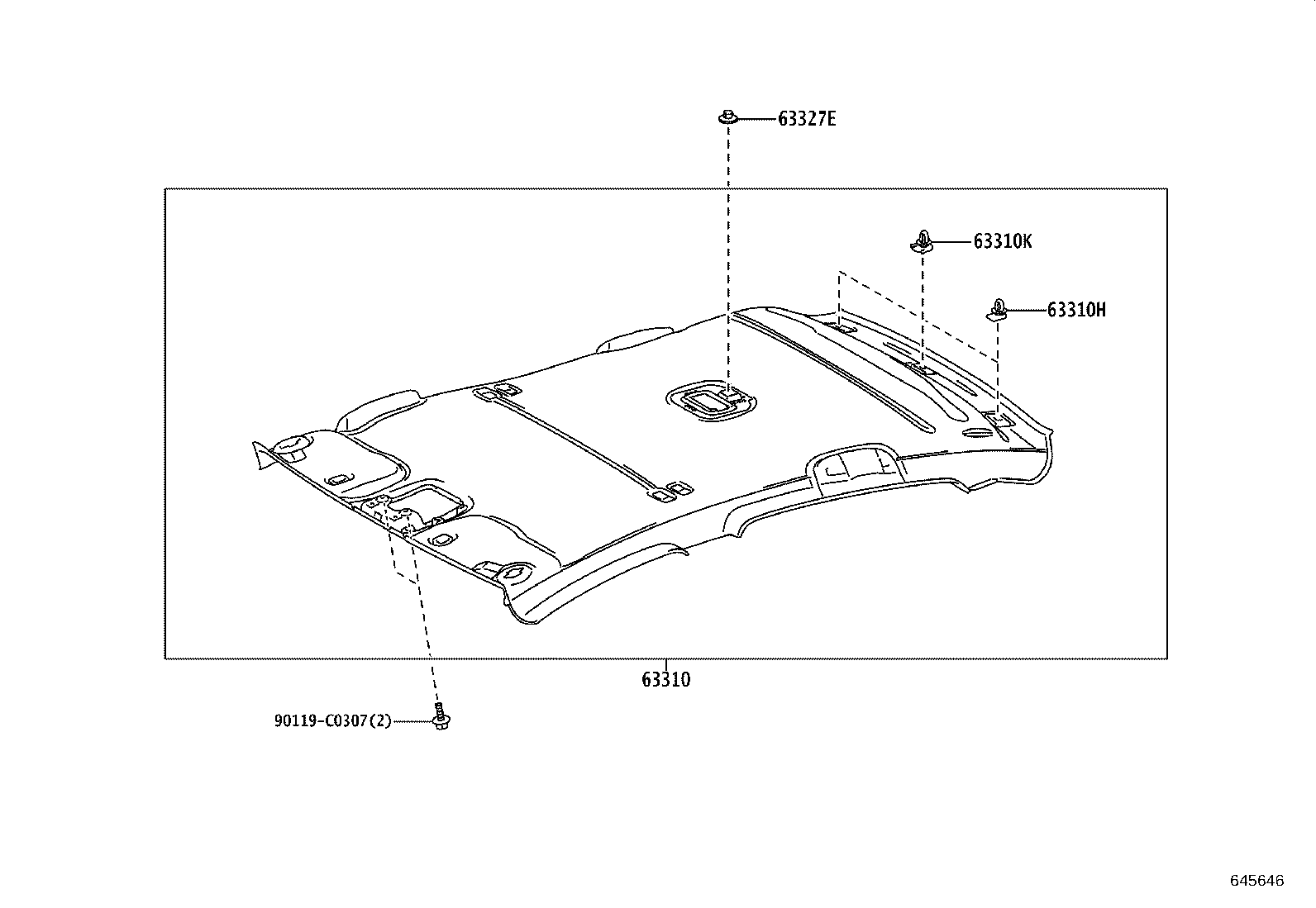

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63310 — Headlining Assy, Roof | ||||
| 63310-03090-B0 note |
Headlining Assy, Roof
2024-07 → —
|
BEJG10 H | — | |
| 63310-03100-B0 note |
Headlining Assy, Roof
2024-07 → —
|
BEJG10 J,M,N | — | |
| 63310-03110-B0 note |
Headlining Assy, Roof
2024-07 → —
|
BEJG10 M | — | |
| 63310-03110-B0 note |
Headlining Assy, Roof
2024-07 → —
|
BEJG10 M | — | |
| 63310-03040-B2 note |
Headlining Assy, Roof
2023-01 → —
|
BEAM10 M | — | |
| 63310-03040-B2 note |
Headlining Assy, Roof
2024-04 → —
|
BEAM10 M | — | |
| 63310-03050-B2 note |
Headlining Assy, Roof
2023-01 → —
|
BEAM10 | — | |
| 63310H — Clip(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
Clip(FOR ROOF HEADLINING)
2024-07 → —
|
BEJG10 | — | |
| 90467-09126 |
Clip(FOR ROOF HEADLINING)
2023-01 → —
|
BEAM10 | — | |
| 63310K — Clip | ||||
| 90467-10181 |
Clip
2024-07 → —
|
BEJG10 | — | |
| 90467-10181 |
Clip
2023-01 → —
|
BEAM10 | — | |
| 63327E — Fastener, Roof Headlining, NO.1 | ||||
| 63327-30070 note |
Fastener, Roof Headlining, NO.1
2024-07 → —
|
BEJG10 M | — | |
| 63327-30070 note |
Fastener, Roof Headlining, NO.1
2024-07 → —
|
BEJG10 M | — | |
| 63327-30070 note |
Fastener, Roof Headlining, NO.1
2023-01 → —
|
BEAM10 M | — | |
| 63327-30070 note |
Fastener, Roof Headlining, NO.1
2024-04 → —
|
BEAM10 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
