Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

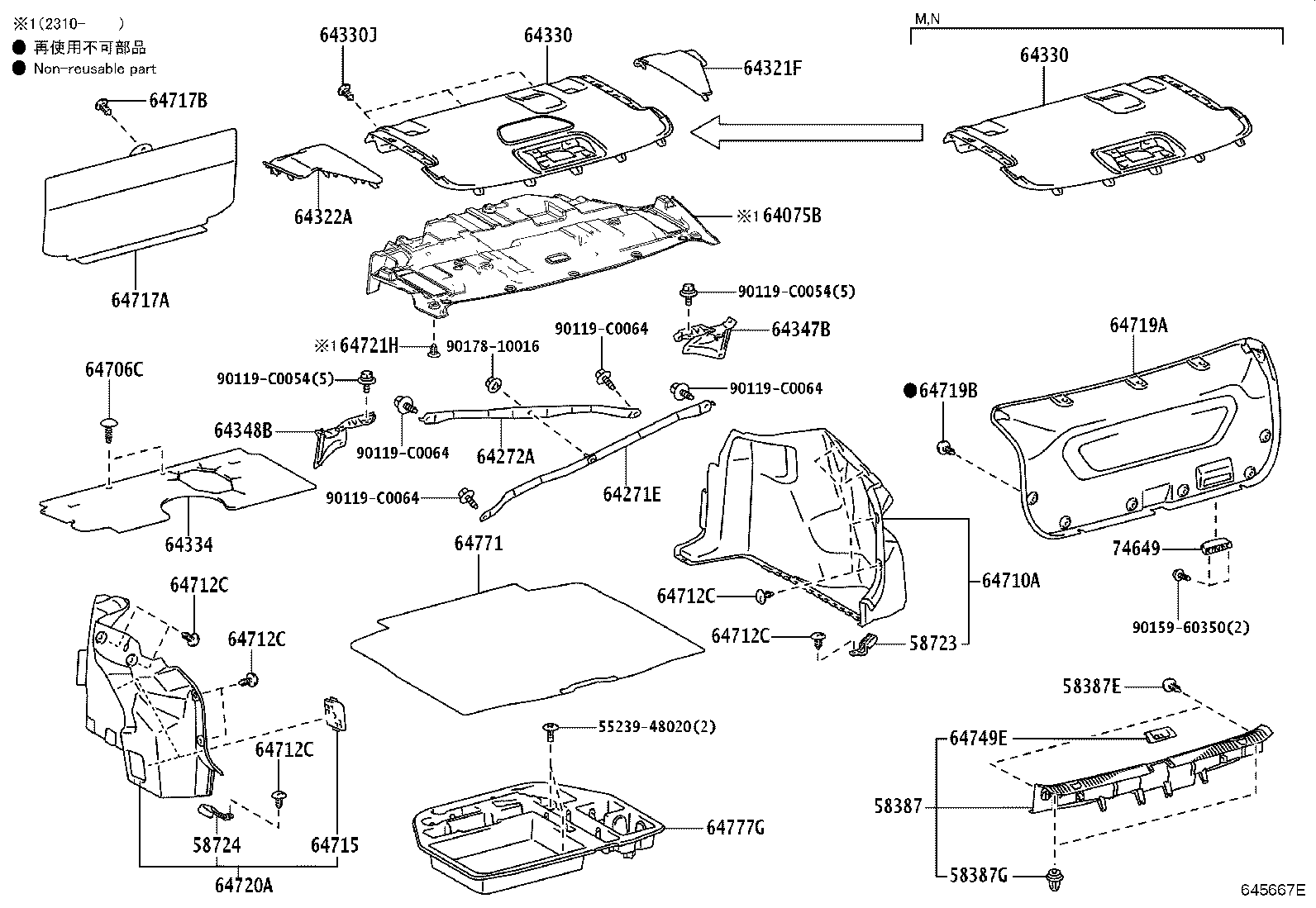

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58387 — Plate, Rear Floor Finish | ||||
| 58387-03020 |
Plate, Rear Floor Finish
2024-07 → —
|
BEJG10 | — | |
| 58387-03020 |
Plate, Rear Floor Finish
2023-01 → —
|
BEAM10 | — | |
| 58387E — Clip(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-C0045-C0 note |
Clip(FOR REAR FLOOR FINISH PLATE)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0045-C0 note |
Clip(FOR REAR FLOOR FINISH PLATE)
2023-01 → —
|
BEAM10 | — | |
| 58387G — Clip(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-C0036 |
Clip(FOR REAR FLOOR FINISH PLATE)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0036 |
Clip(FOR REAR FLOOR FINISH PLATE)
2023-01 → —
|
BEAM10 | — | |
| 58723 — Protector, Luggage Compartment Service Cover, NO.1 | ||||
| 64777-03020 |
Protector, Luggage Compartment Service Cover, NO.1
2024-07 → —
|
BEJG10 | — | |
| 64777-03020 |
Protector, Luggage Compartment Service Cover, NO.1
2023-01 → —
|
BEAM10 | — | |
| 58724 — Protector, Luggage Compartment Service Cover, NO.2 | ||||
| 64778-03020 |
Protector, Luggage Compartment Service Cover, NO.2
2024-07 → —
|
BEJG10 | — | |
| 64778-03020 |
Protector, Luggage Compartment Service Cover, NO.2
2023-01 → —
|
BEAM10 | — | |
| 64075B — Cover, Luggage Compartment Trim, Front | ||||
| 64075-03011-C0 note |
Cover, Luggage Compartment Trim, Front
2024-07 → —
|
BEJG10 H,J | — | |
| 64075-03021-C0 note |
Cover, Luggage Compartment Trim, Front
2024-07 → —
|
BEJG10 M,N | — | |
| 64075-03021-C0 note |
Cover, Luggage Compartment Trim, Front
2024-07 → —
|
BEJG10 M | — | |
| 64075-03021-C0 note |
Cover, Luggage Compartment Trim, Front
2024-07 → —
|
BEJG10 M | — | |
| 64075-03010-C0 note |
Cover, Luggage Compartment Trim, Front
2023-12 → 2024-02
ended
|
BEAM10 J | — | |
| 64075-03011-C0 note |
Cover, Luggage Compartment Trim, Front
2024-03 → —
|
BEAM10 J | — | |
| 64075-03020-C0 note |
Cover, Luggage Compartment Trim, Front
2023-12 → 2024-02
ended
|
BEAM10 M,N | — | |
| 64075-03020-C0 note |
Cover, Luggage Compartment Trim, Front
2023-12 → 2024-02
ended
|
BEAM10 M | — | |
| 64075-03020-C0 note |
Cover, Luggage Compartment Trim, Front
2023-12 → 2024-02
ended
|
BEAM10 M | — | |
| 64075-03021-C0 note |
Cover, Luggage Compartment Trim, Front
2024-03 → 2024-08
ended
|
BEAM10 M | — | |
| 64075-03021-C0 note |
Cover, Luggage Compartment Trim, Front
2024-03 → 2024-08
ended
|
BEAM10 M | — | |
| 64075-03021-C0 note |
Cover, Luggage Compartment Trim, Front
2024-03 → —
|
BEAM10 M,N | — | |
| 64271E — Panel, Room Partition | ||||
| 64241-03010 |
Panel, Room Partition
2024-07 → —
|
BEJG10 | — | |
| 64241-03010 |
Panel, Room Partition
2023-01 → —
|
BEAM10 | — | |
| 64272A — Panel, Room Partition, LH | ||||
| 64242-03010 |
Panel, Room Partition, LH
2024-07 → —
|
BEJG10 | — | |
| 64242-03010 |
Panel, Room Partition, LH
2023-01 → —
|
BEAM10 | — | |
| 64321F — Bracket, Package Tray Trim, RH | ||||
| 64301-03011-B1 note |
Bracket, Package Tray Trim, RH
2024-07 → —
|
BEJG10 | — | |
| 64301-03010-B0 note |
Bracket, Package Tray Trim, RH
2023-01 → 2023-12
ended
|
BEAM10 | — | |
| 64301-03011-B1 note |
Bracket, Package Tray Trim, RH
2023-12 → —
|
BEAM10 | — | |
| 64322A — Bracket, Package Tray Trim, LH | ||||
| 64302-03011-B1 note |
Bracket, Package Tray Trim, LH
2024-07 → —
|
BEJG10 | — | |
| 64302-03010-B0 note |
Bracket, Package Tray Trim, LH
2023-01 → 2023-12
ended
|
BEAM10 | — | |
| 64302-03011-B1 note |
Bracket, Package Tray Trim, LH
2023-12 → —
|
BEAM10 | — | |
| 64330 — Panel Assy, Package Tray Trim | ||||
| 64330-03030-C0 note |
Panel Assy, Package Tray Trim
2024-07 → —
|
BEJG10 H,J | — | |
| 64330-03040-C0 note |
Panel Assy, Package Tray Trim
2024-07 → —
|
BEJG10 M,N | — | |
| 64330-03030-C0 note |
Panel Assy, Package Tray Trim
2023-01 → —
|
BEAM10 J | — | |
| 64330-03040-C0 note |
Panel Assy, Package Tray Trim
2023-01 → —
|
BEAM10 M,N | — | |
| 64330J — Clip(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-C0045-C0 note |
Clip(FOR PACKAGE TRAY TRIM PANEL)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0045-C0 note |
Clip(FOR PACKAGE TRAY TRIM PANEL)
2023-01 → —
|
BEAM10 | — | |
| 64334 — Pad, Package Tray Trim Silencer | ||||
| 64334-03010 |
Pad, Package Tray Trim Silencer
2024-07 → —
|
BEJG10 | — | |
| 64334-03010 |
Pad, Package Tray Trim Silencer
2023-01 → —
|
BEAM10 | — | |
| 64347B — Bracket, Package Tray Reinforcement, RH | ||||
| 64347-03010 |
Bracket, Package Tray Reinforcement, RH
2024-07 → —
|
BEJG10 | — | |
| 64347-03010 |
Bracket, Package Tray Reinforcement, RH
2023-01 → —
|
BEAM10 | — | |
| 64348B — Bracket, Package Tray Reinforcement, LH | ||||
| 64348-03010 |
Bracket, Package Tray Reinforcement, LH
2024-07 → —
|
BEJG10 | — | |
| 64348-03010 |
Bracket, Package Tray Reinforcement, LH
2023-01 → —
|
BEAM10 | — | |
| 64706C — Clip | ||||
| 90467-C0029 |
Clip
2024-07 → —
|
BEJG10 | — | |
| 90467-C0029 |
Clip
2023-01 → —
|
BEAM10 | — | |
| 64710A — Cover Assy, Luggage Compartment Trim, RH | ||||
| 64710-03011-C1 note |
Cover Assy, Luggage Compartment Trim, RH
2024-07 → —
|
BEJG10 | — | |
| 64710-03010-C0 note |
Cover Assy, Luggage Compartment Trim, RH
2023-01 → 2023-11
ended
|
BEAM10 | — | |
| 64710-03011-C0 note |
Cover Assy, Luggage Compartment Trim, RH
2023-12 → 2024-05
ended
|
BEAM10 | — | |
| 64710-03011-C1 note |
Cover Assy, Luggage Compartment Trim, RH
2024-05 → —
|
BEAM10 | — | |
| 64712C — Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
2023-01 → —
|
BEAM10 | — | |
| 64715 — Cover, Luggage Compartment, LH | ||||
| 64715-07020-C0 note |
Cover, Luggage Compartment, LH
2024-07 → —
|
BEJG10 | — | |
| 64715-07020-C0 note |
Cover, Luggage Compartment, LH
2024-05 → —
|
BEAM10 | — | |
| 64715-07020-C1 note |
Cover, Luggage Compartment, LH
2023-01 → 2023-12
ended
|
BEAM10 | — | |
| 64715-07020-C1 note |
Cover, Luggage Compartment, LH
2023-12 → 2024-05
ended
|
BEAM10 | — | |
| 64717A — Cover, Luggage Compartment Trim, Front | ||||
| 64717-03020 |
Cover, Luggage Compartment Trim, Front
2024-07 → —
|
BEJG10 | — | |
| 64717-03020 |
Cover, Luggage Compartment Trim, Front
2023-01 → —
|
BEAM10 | — | |
| 64717B — Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) | ||||
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
2023-01 → —
|
BEAM10 | — | |
| 64719A — Cover, Luggage Compartment Door | ||||
| 64719-03010 |
Cover, Luggage Compartment Door
2024-07 → —
|
BEJG10 | — | |
| 64719-03010 |
Cover, Luggage Compartment Door
2023-01 → —
|
BEAM10 | — | |
| 64719B — Clip(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2024-07 → —
|
BEJG10 M | — | |
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2024-07 → —
|
BEJG10 M | — | |
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2024-04 → —
|
BEAM10 M | — | |
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2023-01 → —
|
BEAM10 M | — | |
| 90467-C0045-C0 note |
Clip(FOR LUGGAGE COMPARTMENT DOOR)
2023-01 → —
|
BEAM10 | — | |
| 64720A — Cover Assy, Luggage Compartment Trim, LH | ||||
| 64720-03011-C1 note |
Cover Assy, Luggage Compartment Trim, LH
2024-07 → —
|
BEJG10 | — | |
| 64720-03010-C0 note |
Cover Assy, Luggage Compartment Trim, LH
2023-01 → 2023-11
ended
|
BEAM10 | — | |
| 64720-03011-C0 note |
Cover Assy, Luggage Compartment Trim, LH
2023-12 → 2024-05
ended
|
BEAM10 | — | |
| 64720-03011-C1 note |
Cover Assy, Luggage Compartment Trim, LH
2024-05 → —
|
BEAM10 | — | |
| 64721H — Clip(LUGGAGE COMPARTMENT) | ||||
| 90467-C0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2024-07 → —
|
BEJG10 M | — | |
| 90467-C0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2024-07 → —
|
BEJG10 M | — | |
| 90467-C0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2023-12 → —
|
BEAM10 | — | |
| 90467-C0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2023-12 → 2024-08
ended
|
BEAM10 M | — | |
| 90467-C0045-C0 note |
Clip(LUGGAGE COMPARTMENT)
2023-12 → 2024-08
ended
|
BEAM10 M | — | |
| 64749E — Cover, Luggage Compartment Door Striker | ||||
| 64749-03010 |
Cover, Luggage Compartment Door Striker
2024-07 → —
|
BEJG10 | — | |
| 64749-03010 |
Cover, Luggage Compartment Door Striker
2023-01 → —
|
BEAM10 | — | |
| 64771 — Cover, Spare Wheel | ||||
| 64771-03020 |
Cover, Spare Wheel
2024-07 → —
|
BEJG10 | — | |
| 64771-03020 |
Cover, Spare Wheel
2023-01 → —
|
BEAM10 | — | |
| 64777G — Cushion, Spare Wheel | ||||
| 64993-03010 |
Cushion, Spare Wheel
2024-07 → —
|
BEJG10 | — | |
| 64777-03010 |
Cushion, Spare Wheel
2023-01 → —
|
BEAM10 | — | |
| 74649 — Grip, Luggage Compartment Door Assist | ||||
| 74649-51010-C3 note |
Grip, Luggage Compartment Door Assist
2024-07 → —
|
BEJG10 | — | |
| 74649-51010-C3 note |
Grip, Luggage Compartment Door Assist
2023-01 → —
|
BEAM10 | — | |
| 74649-51010-C3 note |
Grip, Luggage Compartment Door Assist
2023-01 → —
|
BEAM10 M | — | |
| 74649-51010-C3 note |
Grip, Luggage Compartment Door Assist
2024-04 → —
|
BEAM10 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
