Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

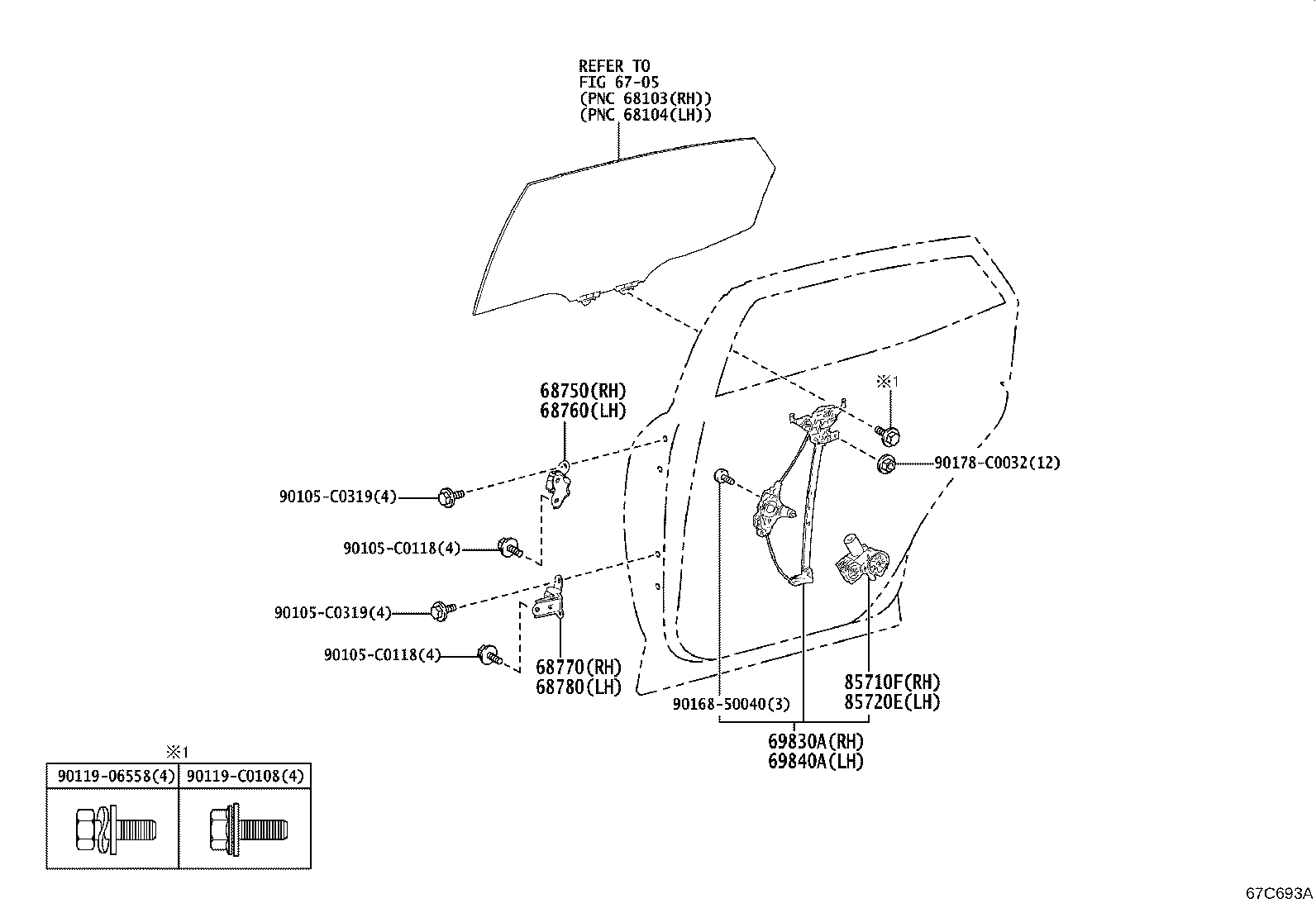

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

16 parts on this figure

Part number	Description	Fitment	Price
68750 — Hinge Assy, Rear Door, Upper RH
68750-0P011	Hinge Assy, Rear Door, Upper RH 2024-07 → —	BEJG10	—
68750-0P011	Hinge Assy, Rear Door, Upper RH 2023-01 → —	BEAM10	—
68760 — Hinge Assy, Rear Door, Upper LH
68760-0P011	Hinge Assy, Rear Door, Upper LH 2024-07 → —	BEJG10	—
68760-0P011	Hinge Assy, Rear Door, Upper LH 2023-01 → —	BEAM10	—
68770 — Hinge Assy, Rear Door, Lower RH
68770-07020	Hinge Assy, Rear Door, Lower RH 2024-07 → —	BEJG10	—
68770-07020	Hinge Assy, Rear Door, Lower RH 2023-01 → —	BEAM10	—
68780 — Hinge Assy, Rear Door, Lower LH
68780-07020	Hinge Assy, Rear Door, Lower LH 2024-07 → —	BEJG10	—
68780-07020	Hinge Assy, Rear Door, Lower LH 2023-01 → —	BEAM10	—
69830A — Regulator Assy, Rear Door Window, RH
69830-03030	Regulator Assy, Rear Door Window, RH 2024-07 → —	BEJG10	—
69830-03030	Regulator Assy, Rear Door Window, RH 2023-01 → —	BEAM10	—
69840A — Regulator Assy, Rear Door Window, LH
69840-03030	Regulator Assy, Rear Door Window, LH 2024-07 → —	BEJG10	—
69840-03030	Regulator Assy, Rear Door Window, LH 2023-01 → —	BEAM10	—
85710F — Motor Assy, Power Window Regulator, RH
85710-03040	Motor Assy, Power Window Regulator, RH 2024-07 → —	BEJG10	—
85710-03040	Motor Assy, Power Window Regulator, RH 2023-01 → —	BEAM10	—
85720E — Motor Assy, Power Window Regulator, LH
85720-03040	Motor Assy, Power Window Regulator, LH 2024-07 → —	BEJG10	—
85720-03040	Motor Assy, Power Window Regulator, LH 2023-01 → —	BEAM10	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
