Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

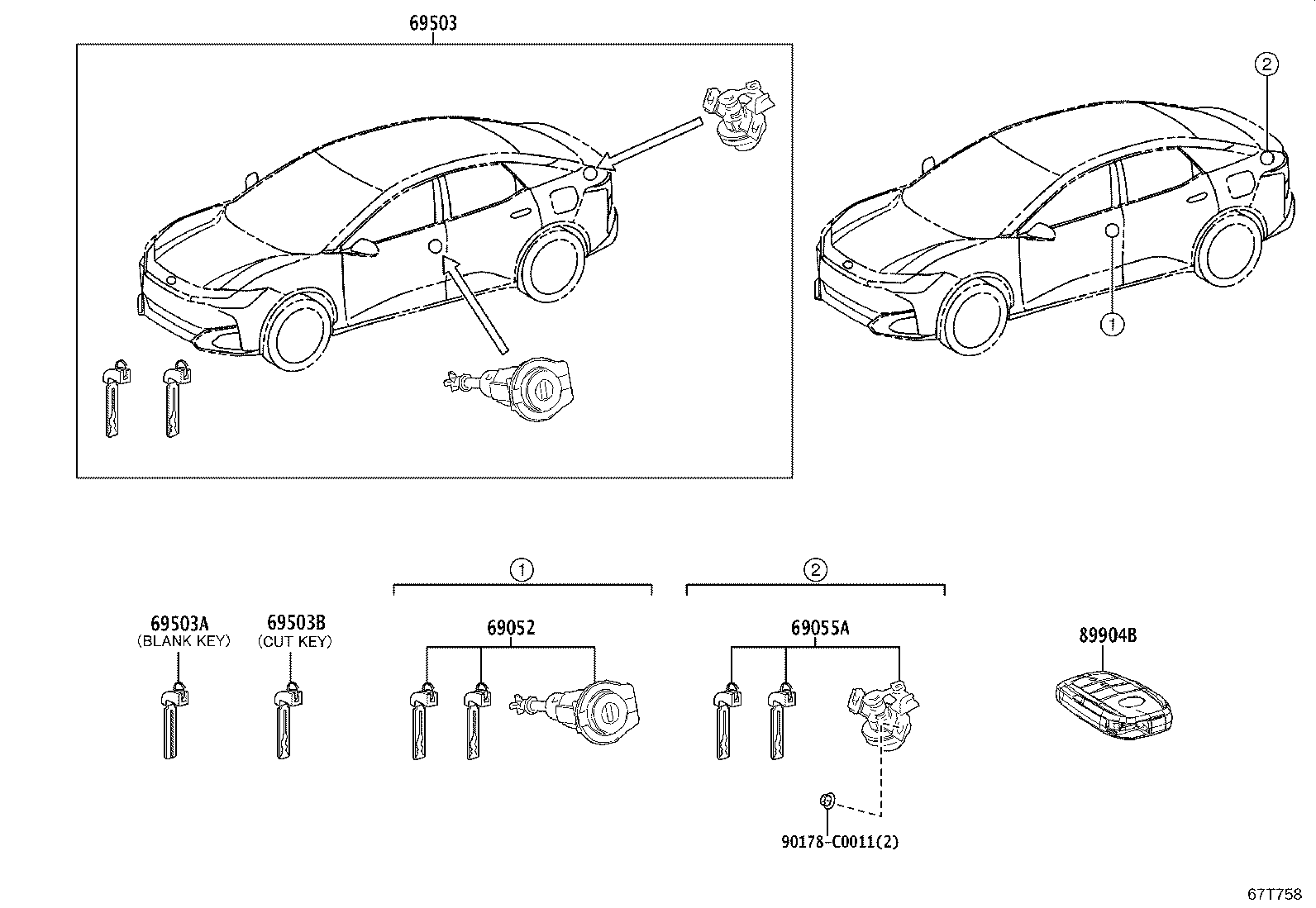

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-03010 |
Cylinder & Key Set, Door Lock, LH
2024-07 → —
|
BEJG10 | — | |
| 69052-03010 |
Cylinder & Key Set, Door Lock, LH
2023-01 → —
|
BEAM10 | — | |
| 69055A — Cylinder & Key Set, Luggage Compartment Lock | ||||
| 69055-03010 |
Cylinder & Key Set, Luggage Compartment Lock
2024-07 → —
|
BEJG10 | — | |
| 69055-03010 |
Cylinder & Key Set, Luggage Compartment Lock
2023-01 → —
|
BEAM10 | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-03020 |
Cylinder Set, Lock
2024-07 → —
|
BEJG10 | — | |
| 69005-03020 |
Cylinder Set, Lock
2023-01 → —
|
BEAM10 | — | |
| 69503A — Key, Blank | ||||
| 69515-0R140 note |
Key, Blank
2024-07 → —
|
BEJG10 | — | |
| 69515-0R140 note |
Key, Blank
2023-01 → —
|
BEAM10 | — | |
| 69503B — Key, Cut | ||||
| 69515-0R130 note |
Key, Cut
2024-07 → —
|
BEJG10 | — | |
| 69515-0R130 note |
Key, Cut
2023-01 → —
|
BEAM10 | — | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 89904-03010 |
Transmitter Sub-assy, Electrical Key
2024-07 → —
|
BEJG10 | — | |
| 89904-03010 |
Transmitter Sub-assy, Electrical Key
2023-01 → —
|
BEAM10 | — | |
| 89904-03010 note |
Transmitter Sub-assy, Electrical Key
2023-01 → —
|
BEAM10 M | — | |
| 89904-03010 note |
Transmitter Sub-assy, Electrical Key
2024-04 → —
|
BEAM10 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
