Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

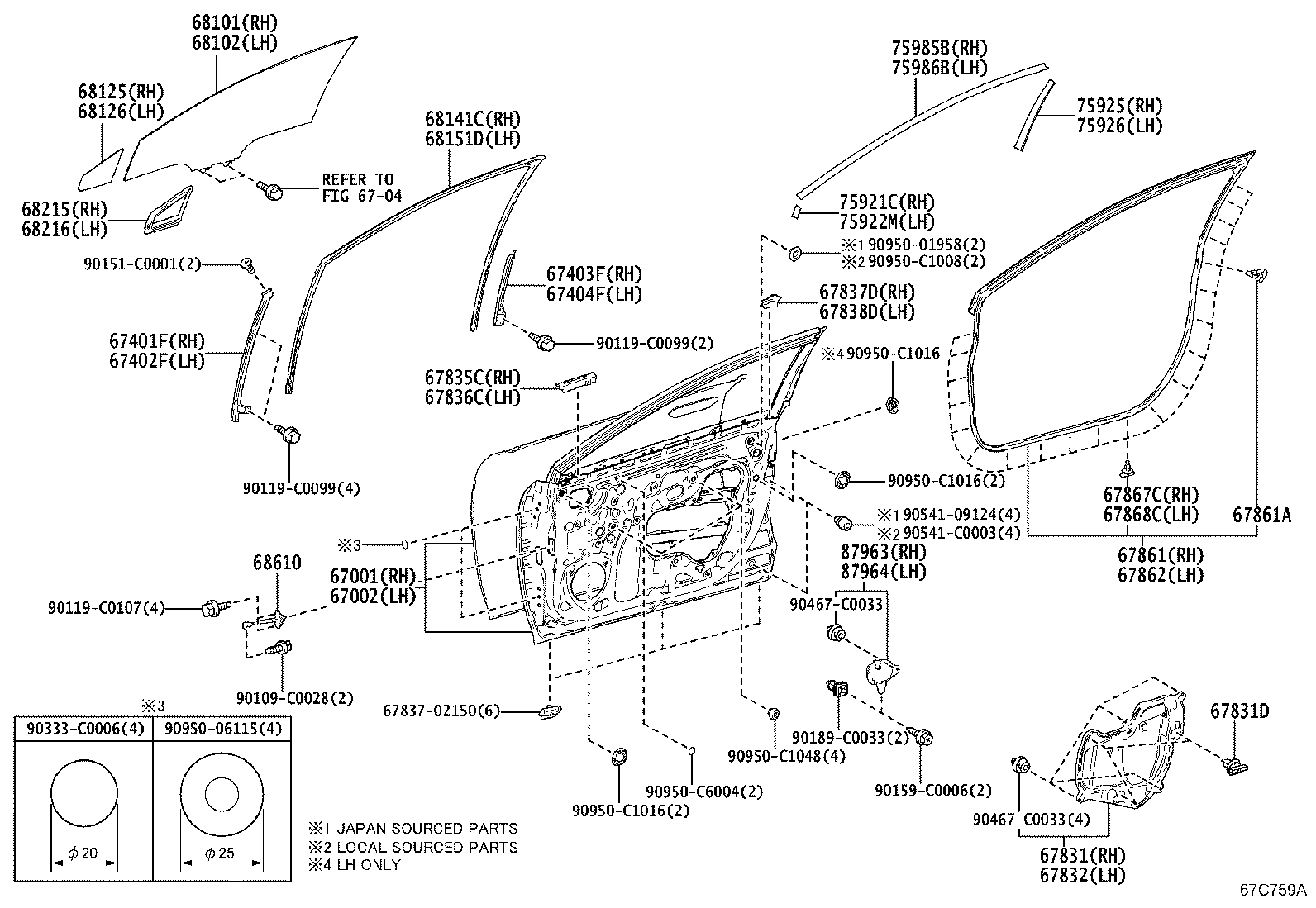

Exploded illustration 67C759A 6704 — not listed in this catalogue 68610 — CHECK ASSY, FRONT DOOR (2 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (3 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (2 parts) 87963 — COVER, OUTER MIRROR INSTALL HOLE, RH (2 parts) 87964 — COVER, OUTER MIRROR INSTALL HOLE, LH (2 parts) 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (2 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (2 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (2 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (2 parts) 68141C — RUN, FRONT DOOR GLASS, RH (2 parts) 68151D — RUN, FRONT DOOR GLASS, LH (2 parts) 68125 — GLASS, FRONT DOOR FIX WINDOW, RH (2 parts) 68126 — GLASS, FRONT DOOR FIX WINDOW, LH (2 parts) 68215 — WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH (2 parts) 68216 — WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH (2 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (2 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (2 parts) 67835C — COVER, FRONT DOOR SERVICE HOLE, NO.3 RH (2 parts) 67836C — COVER, FRONT DOOR SERVICE HOLE, NO.3 LH (2 parts) 67837D — SEAL, FRONT DOOR VENT, RH (3 parts) 67838D — SEAL, FRONT DOOR VENT, LH (3 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (2 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (2 parts) 67861A — RETAINER(FOR FRONT DOOR WEATHERSTRIP) (2 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (2 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (2 parts) 75921C — TAPE, BLACK OUT, NO.1 RH (3 parts) 75922M — TAPE, BLACK OUT, NO.1 LH (3 parts) 75925 — TAPE, BLACK OUT, NO.3 RH (3 parts) 75926 — TAPE, BLACK OUT, NO.3 LH (3 parts) 75985B — STRIPE, FRONT DOOR, NO.3 RH (3 parts) 75986B — STRIPE, FRONT DOOR, NO.3 LH (3 parts) 90119C0099 — not listed in this catalogue 90151C0001 — not listed in this catalogue 90119C0099 — not listed in this catalogue 90467C0033 — not listed in this catalogue 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (2 parts) 67831D — CLIP(FOR FRONT DOOR SERVICE HOLE COVER) (2 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (2 parts) 90467C0033 — not listed in this catalogue 90159C0006 — not listed in this catalogue 90189C0033 — not listed in this catalogue 90950C1048 — not listed in this catalogue 90109C0028 — not listed in this catalogue 6783702150 — not listed in this catalogue 90333C0006 — not listed in this catalogue 9095006115 — not listed in this catalogue 90541C0003 — not listed in this catalogue 9054109124 — not listed in this catalogue 90950C1016 — not listed in this catalogue 90950C1016 — not listed in this catalogue 90950C1016 — not listed in this catalogue 90950C6004 — not listed in this catalogue 90119C0107 — not listed in this catalogue 9095001958 — not listed in this catalogue 90950C1008 — not listed in this catalogue
67C759A · 35 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-03081 Panel Sub-assy, Front Door, RH
2024-07 → —
BEJG10 —
67001-03080 Panel Sub-assy, Front Door, RH
2023-01 → 2024-01 ended
BEAM10 —
67001-03081 Panel Sub-assy, Front Door, RH
2024-02 → —
BEAM10 —
67002 — Panel Sub-assy, Front Door, LH
67002-03030 Panel Sub-assy, Front Door, LH
2024-07 → —
BEJG10 —
67002-03030 Panel Sub-assy, Front Door, LH
2023-01 → —
BEAM10 —
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-03020 Frame Sub-assy, Front Door, Front Lower RH
2024-07 → —
BEJG10 —
67401-03020 Frame Sub-assy, Front Door, Front Lower RH
2023-01 → —
BEAM10 —
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-03020 Frame Sub-assy, Front Door, Front Lower LH
2024-07 → —
BEJG10 —
67402-03020 Frame Sub-assy, Front Door, Front Lower LH
2023-01 → —
BEAM10 —
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-03020 Frame Sub-assy, Front Door, Rear Lower RH
2024-07 → —
BEJG10 —
67403-03020 Frame Sub-assy, Front Door, Rear Lower RH
2023-01 → —
BEAM10 —
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-03020 Frame Sub-assy, Front Door, Rear Lower LH
2024-07 → —
BEJG10 —
67404-03020 Frame Sub-assy, Front Door, Rear Lower LH
2023-01 → —
BEAM10 —
67831 — Cover, Front Door Service Hole, RH
67831-03020 Cover, Front Door Service Hole, RH
2024-07 → —
BEJG10 —
67831-03020 Cover, Front Door Service Hole, RH
2023-01 → —
BEAM10 —
67831D — Clip(FOR FRONT DOOR SERVICE HOLE COVER)
67869-F4020 Clip(FOR FRONT DOOR SERVICE HOLE COVER)
2024-07 → —
BEJG10 —
67869-F4020 Clip(FOR FRONT DOOR SERVICE HOLE COVER)
2023-01 → —
BEAM10 —
67832 — Cover, Front Door Service Hole, LH
67832-03020 Cover, Front Door Service Hole, LH
2024-07 → —
BEJG10 —
67832-03020 Cover, Front Door Service Hole, LH
2023-01 → —
BEAM10 —
67835C — Cover, Front Door Service Hole, NO.3 RH
67835-03010 Cover, Front Door Service Hole, NO.3 RH
2024-07 → —
BEJG10 —
67835-03010 Cover, Front Door Service Hole, NO.3 RH
2023-01 → —
BEAM10 —
67836C — Cover, Front Door Service Hole, NO.3 LH
67836-03010 Cover, Front Door Service Hole, NO.3 LH
2024-07 → —
BEJG10 —
67836-03010 Cover, Front Door Service Hole, NO.3 LH
2023-01 → —
BEAM10 —
67837D — Seal, Front Door Vent, RH
67837-03010 Seal, Front Door Vent, RH
2024-07 → 2025-01 ended
BEJG10 —
67837-03011 Seal, Front Door Vent, RH
2025-01 → —
BEJG10 —
67837-03010 Seal, Front Door Vent, RH
2023-01 → —
BEAM10 —
67838D — Seal, Front Door Vent, LH
67838-03010 Seal, Front Door Vent, LH
2024-07 → 2025-01 ended
BEJG10 —
67838-03011 Seal, Front Door Vent, LH
2025-01 → —
BEJG10 —
67838-03010 Seal, Front Door Vent, LH
2023-01 → —
BEAM10 —
67861 — Weatherstrip, Front Door, RH
67861-03020 Weatherstrip, Front Door, RH
2024-07 → —
BEJG10 —
67861-03020 Weatherstrip, Front Door, RH
2023-01 → —
BEAM10 —
67861A — Retainer(FOR FRONT DOOR WEATHERSTRIP)
90467-04034 Retainer(FOR FRONT DOOR WEATHERSTRIP)
2024-07 → —
BEJG10 —
90467-04034 Retainer(FOR FRONT DOOR WEATHERSTRIP)
2023-01 → —
BEAM10 —
67862 — Weatherstrip, Front Door, LH
67862-03020 Weatherstrip, Front Door, LH
2024-07 → —
BEJG10 —
67862-03020 Weatherstrip, Front Door, LH
2023-01 → —
BEAM10 —
67867C — Retainer, Front Door Weatherstrip, RH
67867-0D090 Retainer, Front Door Weatherstrip, RH
2024-07 → —
BEJG10 —
67867-0D090 Retainer, Front Door Weatherstrip, RH
2023-01 → —
BEAM10 —
67868C — Retainer, Front Door Weatherstrip, LH
67867-12150 Retainer, Front Door Weatherstrip, LH
2024-07 → —
BEJG10 —
67867-12150 Retainer, Front Door Weatherstrip, LH
2023-01 → —
BEAM10 —
68101 — Glass Sub-assy, Front Door, RH
68101-03030 Glass Sub-assy, Front Door, RH
2024-07 → —
BEJG10 —
68101-03030 Glass Sub-assy, Front Door, RH
2023-01 → —
BEAM10 —
68102 — Glass Sub-assy, Front Door, LH
68102-03030 Glass Sub-assy, Front Door, LH
2024-07 → —
BEJG10 —
68102-03030 Glass Sub-assy, Front Door, LH
2023-01 → —
BEAM10 —
68125 — Glass, Front Door Fix Window, RH
68125-03010 Glass, Front Door Fix Window, RH
2024-07 → —
BEJG10 —
68125-03010 Glass, Front Door Fix Window, RH
2023-01 → —
BEAM10 —
68126 — Glass, Front Door Fix Window, LH
68126-03010 Glass, Front Door Fix Window, LH
2024-07 → —
BEJG10 —
68126-03010 Glass, Front Door Fix Window, LH
2023-01 → —
BEAM10 —
68141C — Run, Front Door Glass, RH
68141-03010 Run, Front Door Glass, RH
2024-07 → —
BEJG10 —
68141-03010 Run, Front Door Glass, RH
2023-01 → —
BEAM10 —
68151D — Run, Front Door Glass, LH
68151-03010 Run, Front Door Glass, LH
2024-07 → —
BEJG10 —
68151-03010 Run, Front Door Glass, LH
2023-01 → —
BEAM10 —
68215 — Weatherstrip, Front Door Fix Window, RH
68215-03010 Weatherstrip, Front Door Fix Window, RH
2024-07 → —
BEJG10 —
68215-03010 Weatherstrip, Front Door Fix Window, RH
2023-01 → —
BEAM10 —
68216 — Weatherstrip, Front Door Fix Window, LH
68216-03010 Weatherstrip, Front Door Fix Window, LH
2024-07 → —
BEJG10 —
68216-03010 Weatherstrip, Front Door Fix Window, LH
2023-01 → —
BEAM10 —
68610 — Check Assy, Front Door
68610-03010 Check Assy, Front Door
2024-07 → —
BEJG10 —
68610-03010 Check Assy, Front Door
2023-01 → —
BEAM10 —
75921C — Tape, Black Out, NO.1 RH
75975-03010 Tape, Black Out, NO.1 RH
2023-01 → —
BEAM10 —
75975-03010 note Tape, Black Out, NO.1 RH
2023-01 → 2024-08 ended
BEAM10 M —
75975-03010 note Tape, Black Out, NO.1 RH
2023-01 → 2024-08 ended
BEAM10 M —
75922M — Tape, Black Out, NO.1 LH
75976-03010 note Tape, Black Out, NO.1 LH
2023-01 → 2024-08 ended
BEAM10 M —
75976-03010 note Tape, Black Out, NO.1 LH
2023-01 → 2024-08 ended
BEAM10 M —
75976-03010 Tape, Black Out, NO.1 LH
2023-01 → —
BEAM10 —
75925 — Tape, Black Out, NO.3 RH
75965-03010 note Tape, Black Out, NO.3 RH
2023-01 → 2024-08 ended
BEAM10 M —
75965-03010 note Tape, Black Out, NO.3 RH
2023-01 → 2024-08 ended
BEAM10 M —
75965-03010 Tape, Black Out, NO.3 RH
2023-01 → —
BEAM10 —
75926 — Tape, Black Out, NO.3 LH
75966-03010 Tape, Black Out, NO.3 LH
2023-01 → —
BEAM10 —
75966-03010 note Tape, Black Out, NO.3 LH
2023-01 → 2024-08 ended
BEAM10 M —
75966-03010 note Tape, Black Out, NO.3 LH
2023-01 → 2024-08 ended
BEAM10 M —
75985B — Stripe, Front Door, NO.3 RH
75985-03010 note Stripe, Front Door, NO.3 RH
2023-01 → 2024-08 ended
BEAM10 M —
75985-03010 note Stripe, Front Door, NO.3 RH
2023-01 → 2024-08 ended
BEAM10 M —
75985-03010 Stripe, Front Door, NO.3 RH
2023-01 → —
BEAM10 —
75986B — Stripe, Front Door, NO.3 LH
75986-03010 note Stripe, Front Door, NO.3 LH
2023-01 → 2024-08 ended
BEAM10 M —
75986-03010 note Stripe, Front Door, NO.3 LH
2023-01 → 2024-08 ended
BEAM10 M —
75986-03010 Stripe, Front Door, NO.3 LH
2023-01 → —
BEAM10 —
87963 — Cover, Outer Mirror Install Hole, RH
87963-03020 Cover, Outer Mirror Install Hole, RH
2024-07 → —
BEJG10 —
87963-03020 Cover, Outer Mirror Install Hole, RH
2023-01 → —
BEAM10 —
87964 — Cover, Outer Mirror Install Hole, LH
87964-03020 Cover, Outer Mirror Install Hole, LH
2024-07 → —
BEJG10 —
87964-03020 Cover, Outer Mirror Install Hole, LH
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
