Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

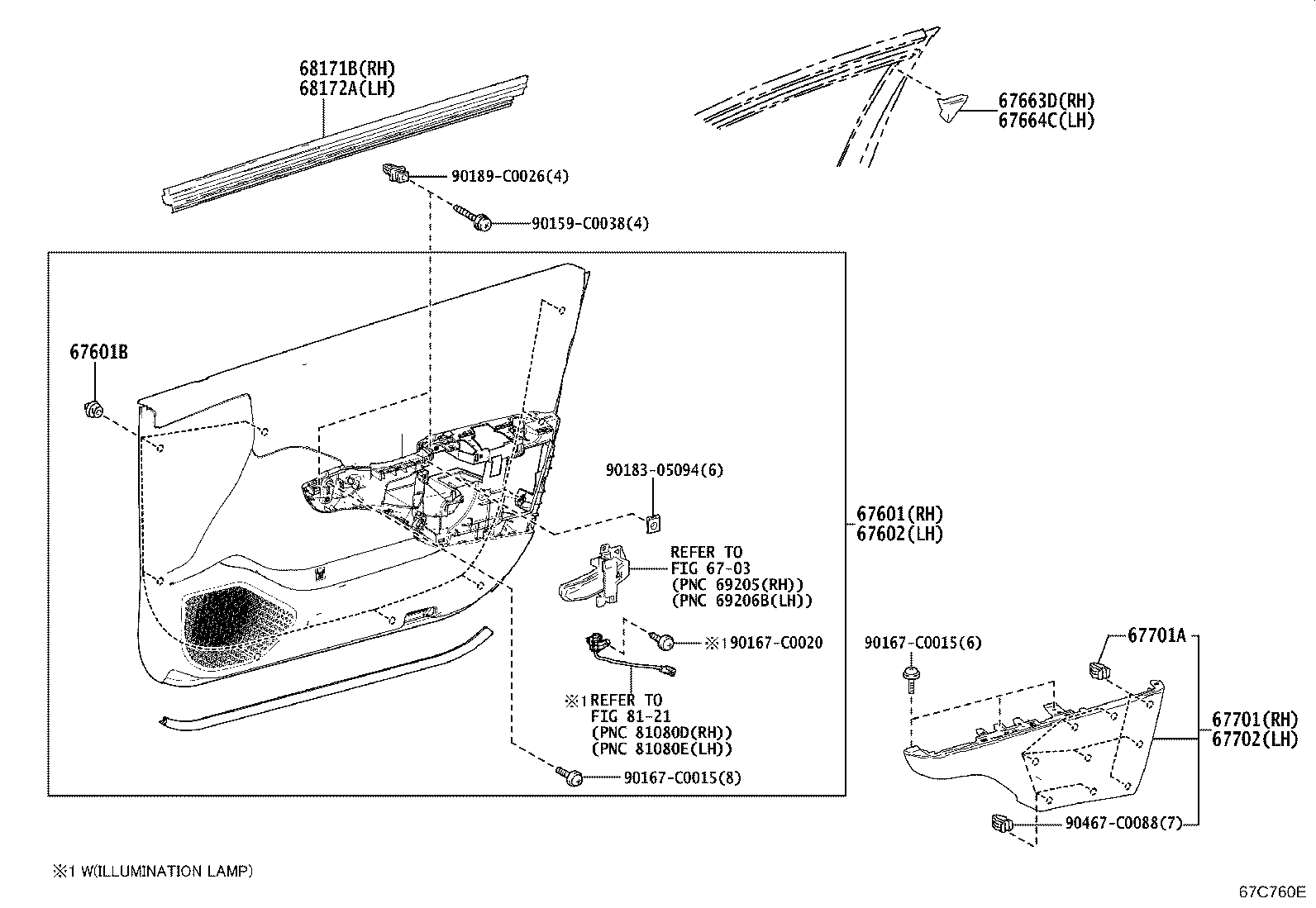

Exploded illustration 67C760E 68171B — WEATHERSTRIP, FRONT DOOR GLASS, INNER RH (2 parts) 68172A — WEATHERSTRIP, FRONT DOOR GLASS, INNER LH (2 parts) 67601 — BOARD SUB-ASSY, FRONT DOOR TRIM, RH (25 parts) 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (2 parts) 67602 — BOARD SUB-ASSY, FRONT DOOR TRIM, LH (25 parts) 67701 — COVER SUB-ASSY, FRONT DOOR TRIM, RH (9 parts) 67702 — COVER SUB-ASSY, FRONT DOOR TRIM, LH (9 parts) 90167C0015 — not listed in this catalogue 90467C0088 — not listed in this catalogue 90167C0020 — not listed in this catalogue 9018305094 — not listed in this catalogue 90167C0015 — not listed in this catalogue 6703 — not listed in this catalogue 8121 — not listed in this catalogue 90189C0026 — not listed in this catalogue 67663D — GARNISH, DOOR FRAME, RH (2 parts) 67664C — GARNISH, DOOR FRAME, LH (2 parts) 67701A — CLIP(FOR FRONT DOOR TRIM COVER) (2 parts) 90159C0038 — not listed in this catalogue
67C760E · 10 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
67601 — Board Sub-assy, Front Door Trim, RH
67610-03071-C1 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M —
67610-03071-C1 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M —
67610-03280-C0 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M,N —
67610-03290-C0 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 H,J —
67610-03290-C0 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M,N —
67610-03290-C0 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M,N —
67610-03290-C1 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 H,J —
67610-03290-C1 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M,N —
67610-03290-C1 note Board Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M,N —
67610-03070-C1 note Board Sub-assy, Front Door Trim, RH
2023-01 → 2023-11 ended
BEAM10 M,N —
67610-03071-C1 note Board Sub-assy, Front Door Trim, RH
2024-04 → —
BEAM10 M —
67610-03071-C1 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M —
67610-03071-C1 note Board Sub-assy, Front Door Trim, RH
2023-11 → 2023-12 ended
BEAM10 M,N —
67610-03090-C1 note Board Sub-assy, Front Door Trim, RH
2023-01 → 2023-11 ended
BEAM10 M,N —
67610-03090-C1 note Board Sub-assy, Front Door Trim, RH
2023-01 → 2023-11 ended
BEAM10 J —
67610-03091-C1 note Board Sub-assy, Front Door Trim, RH
2023-11 → 2023-12 ended
BEAM10 J —
67610-03091-C1 note Board Sub-assy, Front Door Trim, RH
2023-11 → 2023-12 ended
BEAM10 M,N —
67610-03260-C1 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M,N —
67610-03260-C2 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M,N —
67610-03270-C1 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 J —
67610-03270-C1 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M,N —
67610-03270-C2 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M,N —
67610-03270-C2 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 J —
67610-03270-C3 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M,N —
67610-03270-C3 note Board Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 J —
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-C0033 Clip(FOR FRONT DOOR TRIM BOARD)
2024-07 → —
BEJG10 —
90467-C0033 Clip(FOR FRONT DOOR TRIM BOARD)
2023-01 → —
BEAM10 —
67602 — Board Sub-assy, Front Door Trim, LH
67620-03071-C1 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M —
67620-03071-C1 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M —
67620-03210-C0 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M,N —
67620-03220-C0 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M,N —
67620-03220-C0 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M,N —
67620-03220-C0 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 H,J —
67620-03220-C1 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 H,J —
67620-03220-C1 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M,N —
67620-03220-C1 note Board Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M,N —
67620-03070-C1 note Board Sub-assy, Front Door Trim, LH
2023-01 → 2023-11 ended
BEAM10 M,N —
67620-03071-C1 note Board Sub-assy, Front Door Trim, LH
2023-11 → 2023-12 ended
BEAM10 M,N —
67620-03071-C1 note Board Sub-assy, Front Door Trim, LH
2024-04 → —
BEAM10 M —
67620-03071-C1 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M —
67620-03090-C1 note Board Sub-assy, Front Door Trim, LH
2023-01 → 2023-11 ended
BEAM10 J —
67620-03090-C1 note Board Sub-assy, Front Door Trim, LH
2023-01 → 2023-11 ended
BEAM10 M,N —
67620-03091-C1 note Board Sub-assy, Front Door Trim, LH
2023-11 → 2023-12 ended
BEAM10 J —
67620-03091-C1 note Board Sub-assy, Front Door Trim, LH
2023-11 → 2023-12 ended
BEAM10 M,N —
67620-03190-C1 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M,N —
67620-03190-C2 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M,N —
67620-03200-C1 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 J —
67620-03200-C1 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M,N —
67620-03200-C2 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 J —
67620-03200-C2 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M,N —
67620-03200-C3 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 J —
67620-03200-C3 note Board Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M,N —
67663D — Garnish, Door Frame, RH
67663-03010 Garnish, Door Frame, RH
2024-07 → —
BEJG10 —
67663-03010 Garnish, Door Frame, RH
2023-01 → —
BEAM10 —
67664C — Garnish, Door Frame, LH
67664-03010 Garnish, Door Frame, LH
2024-07 → —
BEJG10 —
67664-03010 Garnish, Door Frame, LH
2023-01 → —
BEAM10 —
67701 — Cover Sub-assy, Front Door Trim, RH
67701-03011-C0 note Cover Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 M,N —
67701-03011-C0 note Cover Sub-assy, Front Door Trim, RH
2024-07 → —
BEJG10 H,J —
67701-03010-C0 note Cover Sub-assy, Front Door Trim, RH
2023-01 → 2023-11 ended
BEAM10 M,N —
67701-03010-C0 note Cover Sub-assy, Front Door Trim, RH
2023-01 → 2023-12 ended
BEAM10 J —
67701-03010-C0 note Cover Sub-assy, Front Door Trim, RH
2023-11 → 2023-12 ended
BEAM10 M,N —
67701-03011-C0 note Cover Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M,N —
67701-03011-C0 note Cover Sub-assy, Front Door Trim, RH
2024-04 → —
BEAM10 M —
67701-03011-C0 note Cover Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 J —
67701-03011-C0 note Cover Sub-assy, Front Door Trim, RH
2023-12 → —
BEAM10 M —
67701A — Clip(FOR FRONT DOOR TRIM COVER)
55416-60030 Clip(FOR FRONT DOOR TRIM COVER)
2024-07 → —
BEJG10 —
55416-60030 Clip(FOR FRONT DOOR TRIM COVER)
2023-01 → —
BEAM10 —
67702 — Cover Sub-assy, Front Door Trim, LH
67702-03011-C0 note Cover Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 M,N —
67702-03011-C0 note Cover Sub-assy, Front Door Trim, LH
2024-07 → —
BEJG10 H,J —
67702-03010-C0 note Cover Sub-assy, Front Door Trim, LH
2023-11 → 2023-12 ended
BEAM10 M,N —
67702-03010-C0 note Cover Sub-assy, Front Door Trim, LH
2023-01 → 2023-12 ended
BEAM10 J —
67702-03010-C0 note Cover Sub-assy, Front Door Trim, LH
2023-01 → 2023-11 ended
BEAM10 M,N —
67702-03011-C0 note Cover Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M,N —
67702-03011-C0 note Cover Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 J —
67702-03011-C0 note Cover Sub-assy, Front Door Trim, LH
2023-12 → —
BEAM10 M —
67702-03011-C0 note Cover Sub-assy, Front Door Trim, LH
2024-04 → —
BEAM10 M —
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-03010 Weatherstrip, Front Door Glass, Inner RH
2024-07 → —
BEJG10 —
68171-03010 Weatherstrip, Front Door Glass, Inner RH
2023-01 → —
BEAM10 —
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-03010 Weatherstrip, Front Door Glass, Inner LH
2024-07 → —
BEJG10 —
68172-03010 Weatherstrip, Front Door Glass, Inner LH
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
