Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

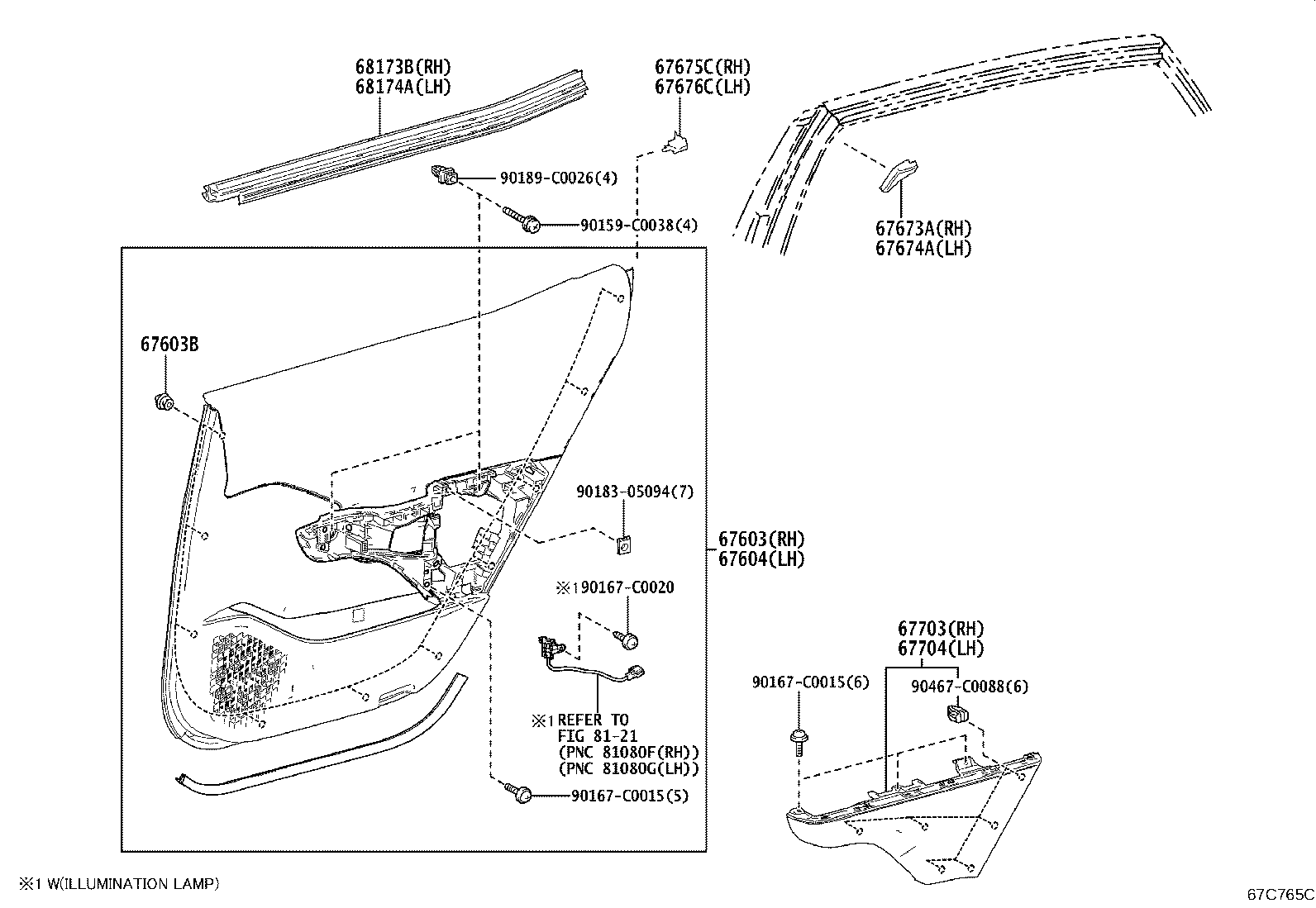

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67603 — Board Sub-assy, Rear Door Trim, RH | ||||
| 67630-03210-C0 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 67630-03220-C0 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 H,J | — | |
| 67630-03220-C0 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 67630-03220-C0 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 67630-03220-C1 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 H,J | — | |
| 67630-03220-C1 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 67630-03220-C1 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 67630-03230-C0 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M | — | |
| 67630-03230-C0 note |
Board Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M | — | |
| 67630-03070-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-11
ended
|
BEAM10 M,N | — | |
| 67630-03071-C1 note |
Board Sub-assy, Rear Door Trim, RH
2024-04 → —
|
BEAM10 M | — | |
| 67630-03071-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M | — | |
| 67630-03071-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-11 → 2023-12
ended
|
BEAM10 M,N | — | |
| 67630-03090-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-11
ended
|
BEAM10 M,N | — | |
| 67630-03090-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-01 → 2023-11
ended
|
BEAM10 J | — | |
| 67630-03091-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-11 → 2023-12
ended
|
BEAM10 J | — | |
| 67630-03091-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-11 → 2023-12
ended
|
BEAM10 M,N | — | |
| 67630-03190-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M,N | — | |
| 67630-03190-C2 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M,N | — | |
| 67630-03200-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 J | — | |
| 67630-03200-C1 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M,N | — | |
| 67630-03200-C2 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M,N | — | |
| 67630-03200-C2 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 J | — | |
| 67630-03200-C3 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M,N | — | |
| 67630-03200-C3 note |
Board Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 J | — | |
| 67603B — Clip(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-C0033 |
Clip(FOR REAR DOOR TRIM BOARD)
2024-07 → —
|
BEJG10 | — | |
| 90467-C0033 |
Clip(FOR REAR DOOR TRIM BOARD)
2023-01 → —
|
BEAM10 | — | |
| 67604 — Board Sub-assy, Rear Door Trim, LH | ||||
| 67640-03210-C0 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 67640-03220-C0 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 H,J | — | |
| 67640-03220-C0 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 67640-03220-C0 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 67640-03220-C1 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 67640-03220-C1 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 67640-03220-C1 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 H,J | — | |
| 67640-03230-C0 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M | — | |
| 67640-03230-C0 note |
Board Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M | — | |
| 67640-03070-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-11
ended
|
BEAM10 M,N | — | |
| 67640-03071-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-11 → 2023-12
ended
|
BEAM10 M,N | — | |
| 67640-03071-C1 note |
Board Sub-assy, Rear Door Trim, LH
2024-04 → —
|
BEAM10 M | — | |
| 67640-03071-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M | — | |
| 67640-03090-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-11
ended
|
BEAM10 J | — | |
| 67640-03090-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-01 → 2023-11
ended
|
BEAM10 M,N | — | |
| 67640-03091-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-11 → 2023-12
ended
|
BEAM10 M,N | — | |
| 67640-03091-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-11 → 2023-12
ended
|
BEAM10 J | — | |
| 67640-03190-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M,N | — | |
| 67640-03190-C2 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M,N | — | |
| 67640-03200-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 J | — | |
| 67640-03200-C1 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M,N | — | |
| 67640-03200-C2 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 J | — | |
| 67640-03200-C2 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M,N | — | |
| 67640-03200-C3 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 J | — | |
| 67640-03200-C3 note |
Board Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M,N | — | |
| 67673A — Garnish, Rear Door Frame, RH | ||||
| 67673-03010 |
Garnish, Rear Door Frame, RH
2024-07 → —
|
BEJG10 | — | |
| 67673-03010 |
Garnish, Rear Door Frame, RH
2023-01 → —
|
BEAM10 | — | |
| 67674A — Garnish, Rear Door Frame, LH | ||||
| 67674-03010 |
Garnish, Rear Door Frame, LH
2024-07 → —
|
BEJG10 | — | |
| 67674-03010 |
Garnish, Rear Door Frame, LH
2023-01 → —
|
BEAM10 | — | |
| 67675C — Garnish, Rear Door Frame, NO.2 RH | ||||
| 67675-03010 |
Garnish, Rear Door Frame, NO.2 RH
2024-07 → —
|
BEJG10 | — | |
| 67675-03010 |
Garnish, Rear Door Frame, NO.2 RH
2023-01 → —
|
BEAM10 | — | |
| 67676C — Garnish, Rear Door Frame, NO.2 LH | ||||
| 67676-03010 |
Garnish, Rear Door Frame, NO.2 LH
2024-07 → —
|
BEJG10 | — | |
| 67676-03010 |
Garnish, Rear Door Frame, NO.2 LH
2023-01 → —
|
BEAM10 | — | |
| 67703 — Cover Sub-assy, Rear Door Trim, RH | ||||
| 67703-03011-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 M,N | — | |
| 67703-03011-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2024-07 → —
|
BEJG10 H,J | — | |
| 67703-03010-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2023-01 → 2023-11
ended
|
BEAM10 M,N | — | |
| 67703-03010-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2023-11 → 2023-12
ended
|
BEAM10 M,N | — | |
| 67703-03010-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2023-01 → 2023-12
ended
|
BEAM10 J | — | |
| 67703-03011-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M,N | — | |
| 67703-03011-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 J | — | |
| 67703-03011-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2023-12 → —
|
BEAM10 M | — | |
| 67703-03011-C0 note |
Cover Sub-assy, Rear Door Trim, RH
2024-04 → —
|
BEAM10 M | — | |
| 67704 — Cover Sub-assy, Rear Door Trim, LH | ||||
| 67704-03011-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 M,N | — | |
| 67704-03011-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2024-07 → —
|
BEJG10 H,J | — | |
| 67704-03010-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2023-11 → 2023-12
ended
|
BEAM10 M,N | — | |
| 67704-03010-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2023-01 → 2023-12
ended
|
BEAM10 J | — | |
| 67704-03010-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2023-01 → 2023-11
ended
|
BEAM10 M,N | — | |
| 67704-03011-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M,N | — | |
| 67704-03011-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 J | — | |
| 67704-03011-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2023-12 → —
|
BEAM10 M | — | |
| 67704-03011-C0 note |
Cover Sub-assy, Rear Door Trim, LH
2024-04 → —
|
BEAM10 M | — | |
| 68173B — Weatherstrip, Rear Door Glass, Inner RH | ||||
| 68173-03010 |
Weatherstrip, Rear Door Glass, Inner RH
2024-07 → —
|
BEJG10 | — | |
| 68173-03010 |
Weatherstrip, Rear Door Glass, Inner RH
2023-01 → —
|
BEAM10 | — | |
| 68174A — Weatherstrip, Rear Door Glass, Inner LH | ||||
| 68174-03010 |
Weatherstrip, Rear Door Glass, Inner LH
2024-07 → —
|
BEJG10 | — | |
| 68174-03010 |
Weatherstrip, Rear Door Glass, Inner LH
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
