Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

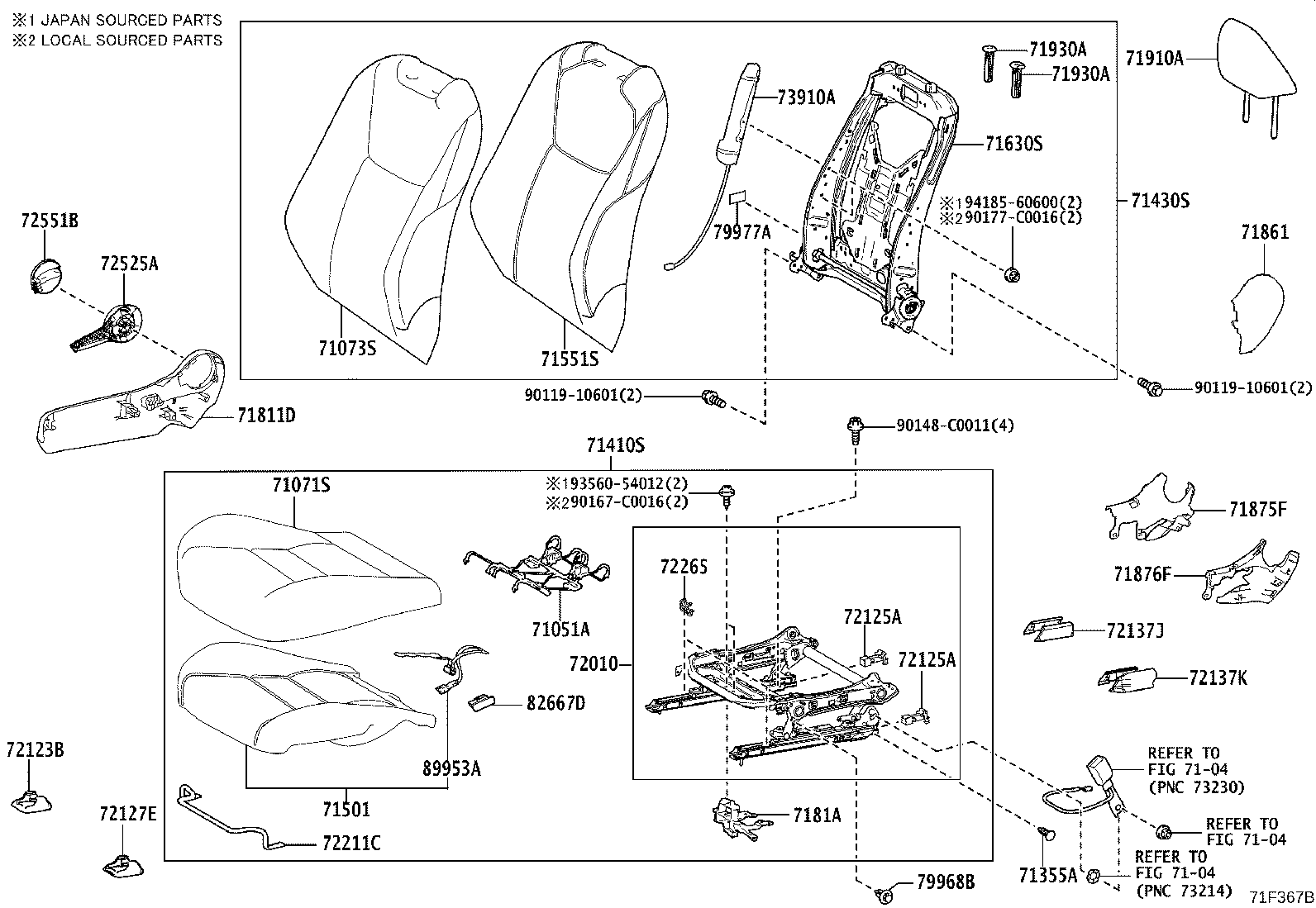

Exploded illustration 71F367B 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71501 — PAD SUB-ASSY, FRONT SEAT CUSHION, RH (2 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (7 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (2 parts) 72551B — COVER, RECLINING HINGE, RH (6 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (2 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (26 parts) 71930A — SUPPORT ASSY, FRONT SEAT HEADREST (4 parts) 71930A — SUPPORT ASSY, FRONT SEAT HEADREST (4 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (5 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (2 parts) 9356054012 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (2 parts) 79968B — CLIP (2 parts) 71355A — CLIP (2 parts) 72211C — HANDLE, SEAT TRACK ADJUSTING (6 parts) 72123B — COVER, SEAT TRACK BRACKET, OUTER FRONT (2 parts) 72127E — COVER, SEAT TRACK BRACKET, INNER FRONT (2 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (2 parts) 72137K — COVER, FRONT SEAT TRACK, RH REAR INNER (2 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (7 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (7 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (7 parts) 90167C0016 — not listed in this catalogue 90177C0016 — not listed in this catalogue 9418560600 — not listed in this catalogue 89953A — SENSOR, BELT WARNING OCCUPANT DETECTION (2 parts) 90148C0011 — not listed in this catalogue 82667D — HOLDER, CONNECTOR (2 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (2 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (30 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (30 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (2 parts) 7104 — not listed in this catalogue 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (30 parts) 79977A — FELT, SEATBACK (6 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (7 parts) 71410S — CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (30 parts)
71F367B · 33 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
235 parts on this figure
Part number Description Fitment Price
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-06040 Spring Sub-assy, Front Seat Cushion, RH
2024-07 → —
BEJG10 —
71051-06040 Spring Sub-assy, Front Seat Cushion, RH
2023-01 → —
BEAM10 —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-03080-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71071-03100-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71071-03100-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71071-03160-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71071-03160-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71071-03160-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71071-03160-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71071-03170-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71071-03170-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71071-03170-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71071-03170-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71071-03080-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71071-03080-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71071-03080-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71071-03080-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71071-03080-E3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71071-03090-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71071-03090-A0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71071-03090-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71071-03090-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71071-03090-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71071-03090-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71071-03090-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71071-03090-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71071-03090-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71071-03090-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71071-03090-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71071-03090-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71071-03100-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-01 → —
BEAM10 M —
71071-03100-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-04 → —
BEAM10 M —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-03100-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71073-03100-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71073-03180-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71073-03180-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71073-03180-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71073-03180-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71073-03190-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71073-03190-A0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71073-03190-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71073-03190-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71073-03200-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71073-03080-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71073-03080-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71073-03080-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71073-03080-E2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71073-03080-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71073-03090-A1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71073-03090-A1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71073-03090-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71073-03090-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71073-03090-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71073-03090-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71073-03090-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71073-03090-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71073-03090-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71073-03090-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71073-03090-E5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71073-03090-E5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71073-03100-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → —
BEAM10 M —
71073-03100-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-04 → —
BEAM10 M —
71355A — Clip
90467-C0054-C0 note Clip
2024-07 → —
BEJG10 —
90467-C0054-C0 note Clip
2023-01 → —
BEAM10 —
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-03050-C4 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71410-03080-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71410-03080-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71410-03180-A0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71410-03180-A0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71410-03180-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71410-03180-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71410-03190-A0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71410-03190-A0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71410-03190-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71410-03190-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71410-03050-B2 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71410-03050-C3 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71410-03050-C4 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71410-03050-E2 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71410-03050-E3 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71410-03060-A0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71410-03060-A0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71410-03060-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71410-03060-B1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71410-03060-C1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71410-03060-C1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71410-03060-C2 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71410-03060-C2 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71410-03060-E1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71410-03060-E1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71410-03060-E2 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71410-03060-E2 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71410-03080-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-04 → —
BEAM10 M —
71410-03080-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → —
BEAM10 M —
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-03050-C3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71430-03080-C0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71430-03080-C0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M —
71430-03170-A1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71430-03170-A1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71430-03170-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71430-03170-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71430-03180-A1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71430-03180-A1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71430-03180-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71430-03180-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71430-03050-B2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71430-03050-C2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71430-03050-C3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71430-03050-E2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71430-03050-E3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71430-03060-A1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71430-03060-A1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71430-03060-B3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71430-03060-B3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71430-03060-C3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71430-03060-C3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71430-03060-C4 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71430-03060-C4 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71430-03060-E3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 M,N —
71430-03060-E3 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → 2024-01 ended
BEAM10 J —
71430-03060-E5 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 J —
71430-03060-E5 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-01 → —
BEAM10 M,N —
71430-03080-C0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2024-04 → —
BEAM10 M —
71430-03080-C0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2023-01 → —
BEAM10 M —
71501 — Pad Sub-assy, Front Seat Cushion, RH
71501-03010 Pad Sub-assy, Front Seat Cushion, RH
2024-07 → —
BEJG10 —
71501-03010 Pad Sub-assy, Front Seat Cushion, RH
2023-01 → —
BEAM10 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-03020 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 —
71551-03020 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → —
BEAM10 —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-0R160 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 H,J —
71630-0R160 note Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71630-0R160 note Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2024-07 → —
BEJG10 M,N —
71630-0R160 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → —
BEAM10 J —
71630-0R160 note Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2023-01 → —
BEAM10 M,N —
71811D — Shield, Front Seat Cushion, RH
71811-07090-C0 note Shield, Front Seat Cushion, RH
2024-07 → —
BEJG10 M,N —
71811-07100-C0 note Shield, Front Seat Cushion, RH
2024-07 → —
BEJG10 H,J —
71811-07100-C0 note Shield, Front Seat Cushion, RH
2024-07 → —
BEJG10 M,N —
71811-07100-C0 note Shield, Front Seat Cushion, RH
2024-07 → —
BEJG10 M,N —
71811-07090-C0 note Shield, Front Seat Cushion, RH
2023-01 → —
BEAM10 M,N —
71811-07100-C0 note Shield, Front Seat Cushion, RH
2023-01 → —
BEAM10 J —
71811-07100-C0 note Shield, Front Seat Cushion, RH
2023-01 → —
BEAM10 M,N —
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-F4030 Holder, Front Seat Cushion Wire Harness, RH
2024-07 → —
BEJG10 —
7181A-F4030 Holder, Front Seat Cushion Wire Harness, RH
2023-01 → —
BEAM10 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-07050-C0 note Shield, Front Seat Cushion, Inner RH
2024-07 → —
BEJG10 —
71861-07050-C0 note Shield, Front Seat Cushion, Inner RH
2023-01 → —
BEAM10 —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-07030-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2024-07 → —
BEJG10 —
71875-07030-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2023-01 → —
BEAM10 —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-07040-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2024-07 → —
BEJG10 —
71875-07040-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2023-01 → —
BEAM10 —
71910A — Headrest Assy, Front Seat
71910-03080-B2 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 M —
71910-03080-B2 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 N —
71910-03080-C1 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 M —
71910-03090-A0 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 H,J —
71910-03090-A0 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 M,N —
71910-03090-B2 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 H,J —
71910-03090-B2 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 M,N —
71910-03120-A0 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 H,J —
71910-03120-A0 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 M,N —
71910-03120-B0 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 M,N —
71910-03120-B0 note Headrest Assy, Front Seat
2024-07 → —
BEJG10 H,J —
71910-03080-B1 note Headrest Assy, Front Seat
2023-01 → 2024-01 ended
BEAM10 M,N —
71910-03080-B2 note Headrest Assy, Front Seat
2024-01 → —
BEAM10 M,N —
71910-03080-C1 note Headrest Assy, Front Seat
2023-01 → 2024-01 ended
BEAM10 M,N —
71910-03080-C1 note Headrest Assy, Front Seat
2024-01 → —
BEAM10 M,N —
71910-03080-E1 note Headrest Assy, Front Seat
2023-01 → —
BEAM10 M,N —
71910-03090-A0 note Headrest Assy, Front Seat
2024-01 → —
BEAM10 M,N —
71910-03090-A0 note Headrest Assy, Front Seat
2024-01 → —
BEAM10 J —
71910-03090-B1 note Headrest Assy, Front Seat
2023-01 → 2024-01 ended
BEAM10 J —
71910-03090-B1 note Headrest Assy, Front Seat
2023-01 → 2024-01 ended
BEAM10 M,N —
71910-03090-B2 note Headrest Assy, Front Seat
2024-01 → —
BEAM10 M,N —
71910-03090-B2 note Headrest Assy, Front Seat
2024-01 → —
BEAM10 J —
71910-03090-C1 note Headrest Assy, Front Seat
2023-01 → 2024-01 ended
BEAM10 M,N —
71910-03090-C1 note Headrest Assy, Front Seat
2023-01 → 2024-01 ended
BEAM10 J —
71910-03090-E1 note Headrest Assy, Front Seat
2023-01 → —
BEAM10 J —
71910-03090-E1 note Headrest Assy, Front Seat
2023-01 → —
BEAM10 M,N —
71930A — Support Assy, Front Seat Headrest
71930-06070-C0 note Support Assy, Front Seat Headrest
2024-07 → —
BEJG10 —
71931-06060-C0 note Support Assy, Front Seat Headrest
2024-07 → —
BEJG10 —
71930-06070-C0 note Support Assy, Front Seat Headrest
2023-01 → —
BEAM10 —
71931-06060-C0 note Support Assy, Front Seat Headrest
2023-01 → —
BEAM10 —
72010 — Adjuster Assy, Front Seat, RH
72010-0R070 Adjuster Assy, Front Seat, RH
2024-07 → —
BEJG10 M,N —
72010-0R170 Adjuster Assy, Front Seat, RH
2024-07 → —
BEJG10 H,J —
72010-0R170 note Adjuster Assy, Front Seat, RH
2024-07 → —
BEJG10 M,N —
72010-0R170 note Adjuster Assy, Front Seat, RH
2024-07 → —
BEJG10 M,N —
72010-0R070 Adjuster Assy, Front Seat, RH
2023-01 → —
BEAM10 M,N —
72010-0R170 Adjuster Assy, Front Seat, RH
2023-01 → —
BEAM10 J —
72010-0R170 note Adjuster Assy, Front Seat, RH
2023-01 → —
BEAM10 M,N —
72123B — Cover, Seat Track Bracket, Outer Front
72123-F4030 Cover, Seat Track Bracket, Outer Front
2024-07 → —
BEJG10 —
72123-F4030 Cover, Seat Track Bracket, Outer Front
2023-01 → —
BEAM10 —
72125A — Cover, Seat Track, Upper Rear
72125-F4010 Cover, Seat Track, Upper Rear
2024-07 → —
BEJG10 M,N —
72125-F4020 Cover, Seat Track, Upper Rear
2024-07 → —
BEJG10 H,J —
72125-F4020 note Cover, Seat Track, Upper Rear
2024-07 → —
BEJG10 M,N —
72125-F4020 note Cover, Seat Track, Upper Rear
2024-07 → —
BEJG10 M,N —
72125-F4010 Cover, Seat Track, Upper Rear
2023-01 → —
BEAM10 M,N —
72125-F4020 Cover, Seat Track, Upper Rear
2023-01 → —
BEAM10 J —
72125-F4020 note Cover, Seat Track, Upper Rear
2023-01 → —
BEAM10 M,N —
72127E — Cover, Seat Track Bracket, Inner Front
72123-F4030 Cover, Seat Track Bracket, Inner Front
2024-07 → —
BEJG10 —
72123-F4030 Cover, Seat Track Bracket, Inner Front
2023-01 → —
BEAM10 —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-F4020 Cover, Front Seat Track, RH Rear Outer
2024-07 → —
BEJG10 —
72137-F4020 Cover, Front Seat Track, RH Rear Outer
2023-01 → —
BEAM10 —
72137K — Cover, Front Seat Track, RH Rear Inner
72157-03020 Cover, Front Seat Track, RH Rear Inner
2024-07 → —
BEJG10 —
72157-03020 Cover, Front Seat Track, RH Rear Inner
2023-01 → —
BEAM10 —
72211C — Handle, Seat Track Adjusting
72211-06140 note Handle, Seat Track Adjusting
2024-07 → —
BEJG10 M —
72211-06140 Handle, Seat Track Adjusting
2024-07 → —
BEJG10 M,N —
72211-06140 note Handle, Seat Track Adjusting
2024-07 → —
BEJG10 M —
72211-06140 Handle, Seat Track Adjusting
2023-01 → —
BEAM10 M,N —
72211-06140 note Handle, Seat Track Adjusting
2023-01 → —
BEAM10 M —
72211-06140 note Handle, Seat Track Adjusting
2024-04 → —
BEAM10 M —
72265 — Cover, Seat Track Upper Rail, RH
72265-07020 Cover, Seat Track Upper Rail, RH
2024-07 → —
BEJG10 H,J —
72265-07020 note Cover, Seat Track Upper Rail, RH
2024-07 → —
BEJG10 M,N —
72265-07020 note Cover, Seat Track Upper Rail, RH
2024-07 → —
BEJG10 M,N —
72265-F4010 Cover, Seat Track Upper Rail, RH
2024-07 → —
BEJG10 M,N —
72265-07020 Cover, Seat Track Upper Rail, RH
2023-01 → —
BEAM10 J —
72265-07020 note Cover, Seat Track Upper Rail, RH
2023-01 → —
BEAM10 M,N —
72265-F4010 Cover, Seat Track Upper Rail, RH
2023-01 → —
BEAM10 M,N —
72525A — Handle, Reclining Adjuster Release, RH
72525-F4060-C0 note Handle, Reclining Adjuster Release, RH
2024-07 → —
BEJG10 M,N —
72525-F4060-C0 note Handle, Reclining Adjuster Release, RH
2023-01 → —
BEAM10 M,N —
72551B — Cover, Reclining Hinge, RH
72551-F4080-C0 note Cover, Reclining Hinge, RH
2024-07 → —
BEJG10 M,N —
72551-F4080-C0 note Cover, Reclining Hinge, RH
2024-07 → —
BEJG10 M —
72551-F4080-C0 note Cover, Reclining Hinge, RH
2024-07 → —
BEJG10 M —
72551-F4080-C0 note Cover, Reclining Hinge, RH
2023-01 → —
BEAM10 M,N —
72551-F4080-C0 note Cover, Reclining Hinge, RH
2024-04 → —
BEAM10 M —
72551-F4080-C0 note Cover, Reclining Hinge, RH
2023-01 → —
BEAM10 M —
73910A — Airbag Assy, Front Seat, RH
73910-02400 Airbag Assy, Front Seat, RH
2024-07 → —
BEJG10 —
73910-02400 Airbag Assy, Front Seat, RH
2023-01 → —
BEAM10 —
79968B — Clip
90467-C0043 Clip
2024-07 → —
BEJG10 —
90467-C0043 Clip
2023-01 → —
BEAM10 —
79977A — Felt, Seatback
79977-02130 Felt, Seatback
2024-07 → —
BEJG10 M,N —
79977-02130 note Felt, Seatback
2024-07 → —
BEJG10 M —
79977-02130 note Felt, Seatback
2024-07 → —
BEJG10 M —
79977-02130 Felt, Seatback
2023-01 → —
BEAM10 M,N —
79977-02130 note Felt, Seatback
2023-01 → —
BEAM10 M —
79977-02130 note Felt, Seatback
2024-04 → —
BEAM10 M —
82667D — Holder, Connector
82666-07300 Holder, Connector
2024-07 → —
BEJG10 —
82666-07300 Holder, Connector
2023-01 → —
BEAM10 —
89953A — Sensor, Belt Warning Occupant Detection
89953-06070 Sensor, Belt Warning Occupant Detection
2024-07 → —
BEJG10 —
89953-06070 Sensor, Belt Warning Occupant Detection
2023-01 → —
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
