Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

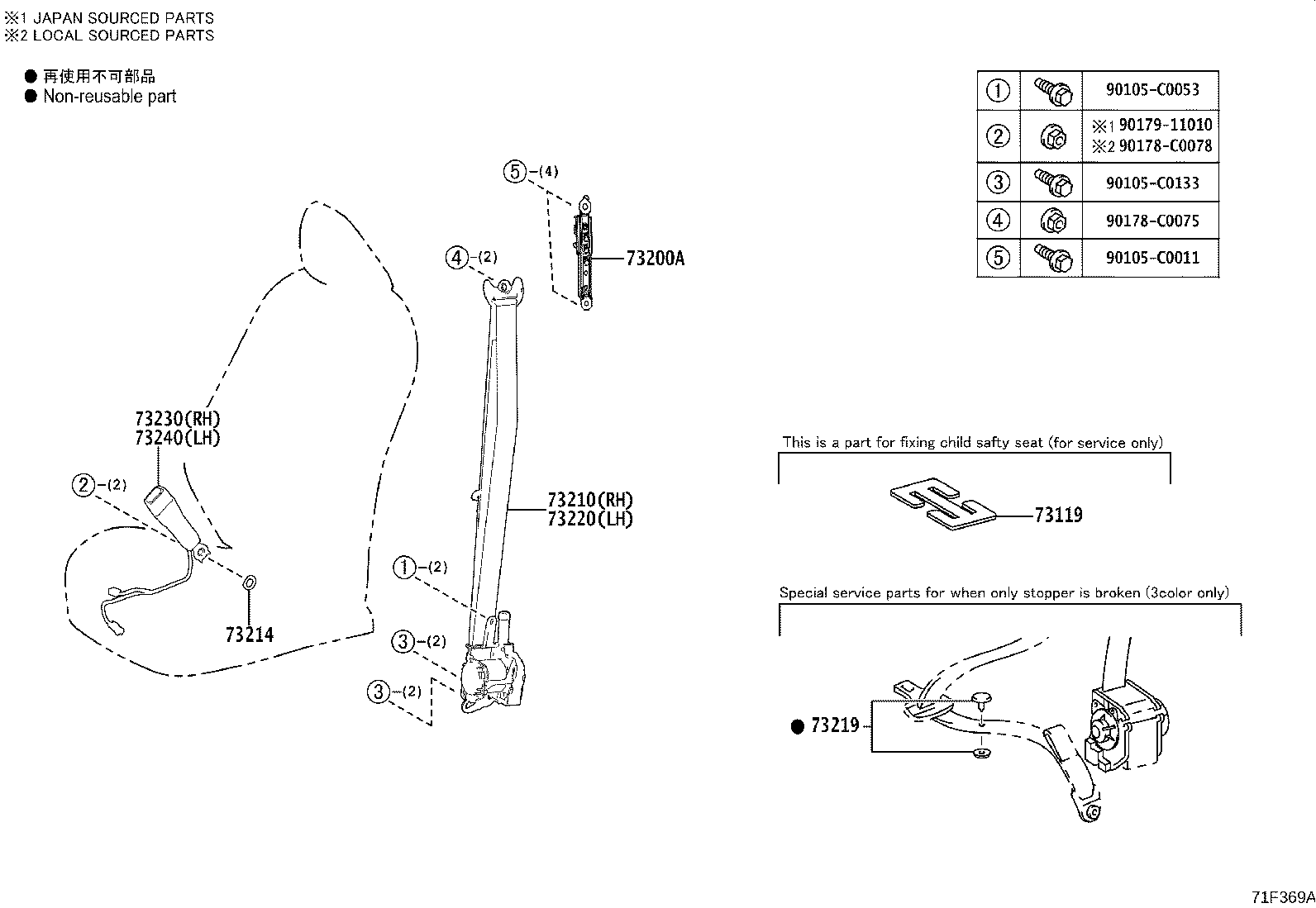

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73119 — Plate, Seat Belt Webbing Clip | ||||
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2024-07 → —
|
BEJG10 | — | |
| 73119-22010 |
Plate, Seat Belt Webbing Clip
2023-01 → —
|
BEAM10 | — | |
| 73200A — Adjuster Assy, Front Shoulder Belt Anchor | ||||
| 73200-0G020 |
Adjuster Assy, Front Shoulder Belt Anchor
2024-07 → —
|
BEJG10 | — | |
| 73200-0G020 |
Adjuster Assy, Front Shoulder Belt Anchor
2023-01 → —
|
BEAM10 | — | |
| 73210 — Belt Assy, Front Seat Outer, RH | ||||
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2024-07 → 2024-11
ended
|
BEJG10 M | — | |
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2024-07 → 2024-11
ended
|
BEJG10 M | — | |
| 73210-03010-C1 note |
Belt Assy, Front Seat Outer, RH
2024-07 → 2024-11
ended
|
BEJG10 | — | |
| 73210-03010-C2 note |
Belt Assy, Front Seat Outer, RH
2024-11 → —
|
BEJG10 | — | |
| 73210-03010-C3 note |
Belt Assy, Front Seat Outer, RH
2024-11 → —
|
BEJG10 M | — | |
| 73210-03010-C3 note |
Belt Assy, Front Seat Outer, RH
2024-11 → —
|
BEJG10 M | — | |
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2024-01 → —
|
BEAM10 J | — | |
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2024-04 → —
|
BEAM10 M | — | |
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2024-01 → —
|
BEAM10 M,N | — | |
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2023-01 → —
|
BEAM10 M | — | |
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 73210-03010-C0 note |
Belt Assy, Front Seat Outer, RH
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 73210-03010-C1 note |
Belt Assy, Front Seat Outer, RH
2024-01 → —
|
BEAM10 M,N | — | |
| 73210-03010-C1 note |
Belt Assy, Front Seat Outer, RH
2024-01 → —
|
BEAM10 J | — | |
| 73214 — Plate, Front Seat Belt Anchor | ||||
| 73214-75010 |
Plate, Front Seat Belt Anchor
2024-07 → —
|
BEJG10 | — | |
| 73214-75010 |
Plate, Front Seat Belt Anchor
2023-01 → —
|
BEAM10 | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2024-07 → —
|
BEJG10 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2024-07 → —
|
BEJG10 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2024-07 → —
|
BEJG10 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2023-01 → —
|
BEAM10 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2023-01 → —
|
BEAM10 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2023-01 → —
|
BEAM10 | — | |
| 73220 — Belt Assy, Front Seat Outer, LH | ||||
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2024-07 → 2024-11
ended
|
BEJG10 M | — | |
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2024-07 → 2024-11
ended
|
BEJG10 M | — | |
| 73220-03010-C1 note |
Belt Assy, Front Seat Outer, LH
2024-07 → 2024-11
ended
|
BEJG10 | — | |
| 73220-03010-C2 note |
Belt Assy, Front Seat Outer, LH
2024-11 → —
|
BEJG10 | — | |
| 73220-03010-C3 note |
Belt Assy, Front Seat Outer, LH
2024-11 → —
|
BEJG10 M | — | |
| 73220-03010-C3 note |
Belt Assy, Front Seat Outer, LH
2024-11 → —
|
BEJG10 M | — | |
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2023-01 → —
|
BEAM10 M | — | |
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2024-01 → —
|
BEAM10 M,N | — | |
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2024-01 → —
|
BEAM10 J | — | |
| 73220-03010-C0 note |
Belt Assy, Front Seat Outer, LH
2024-04 → —
|
BEAM10 M | — | |
| 73220-03010-C1 note |
Belt Assy, Front Seat Outer, LH
2024-01 → —
|
BEAM10 J | — | |
| 73220-03010-C1 note |
Belt Assy, Front Seat Outer, LH
2024-01 → —
|
BEAM10 M,N | — | |
| 73230 — Belt Assy, Front Seat Inner, RH | ||||
| 73230-02E90-C0 note |
Belt Assy, Front Seat Inner, RH
2024-07 → —
|
BEJG10 | — | |
| 73230-02E90-C0 note |
Belt Assy, Front Seat Inner, RH
2023-01 → —
|
BEAM10 | — | |
| 73230-02E90-C0 note |
Belt Assy, Front Seat Inner, RH
2023-01 → —
|
BEAM10 M | — | |
| 73230-02E90-C0 note |
Belt Assy, Front Seat Inner, RH
2024-04 → —
|
BEAM10 M | — | |
| 73240 — Belt Assy, Front Seat Inner, LH | ||||
| 73240-02200-C0 note |
Belt Assy, Front Seat Inner, LH
2024-07 → —
|
BEJG10 | — | |
| 73240-02210-C0 note |
Belt Assy, Front Seat Inner, LH
2024-07 → —
|
BEJG10 M | — | |
| 73240-02210-C0 note |
Belt Assy, Front Seat Inner, LH
2024-07 → —
|
BEJG10 M | — | |
| 73240-02200-C0 note |
Belt Assy, Front Seat Inner, LH
2023-01 → —
|
BEAM10 | — | |
| 73240-02210-C0 note |
Belt Assy, Front Seat Inner, LH
2023-01 → —
|
BEAM10 M | — | |
| 73240-02210-C0 note |
Belt Assy, Front Seat Inner, LH
2024-04 → —
|
BEAM10 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
