Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

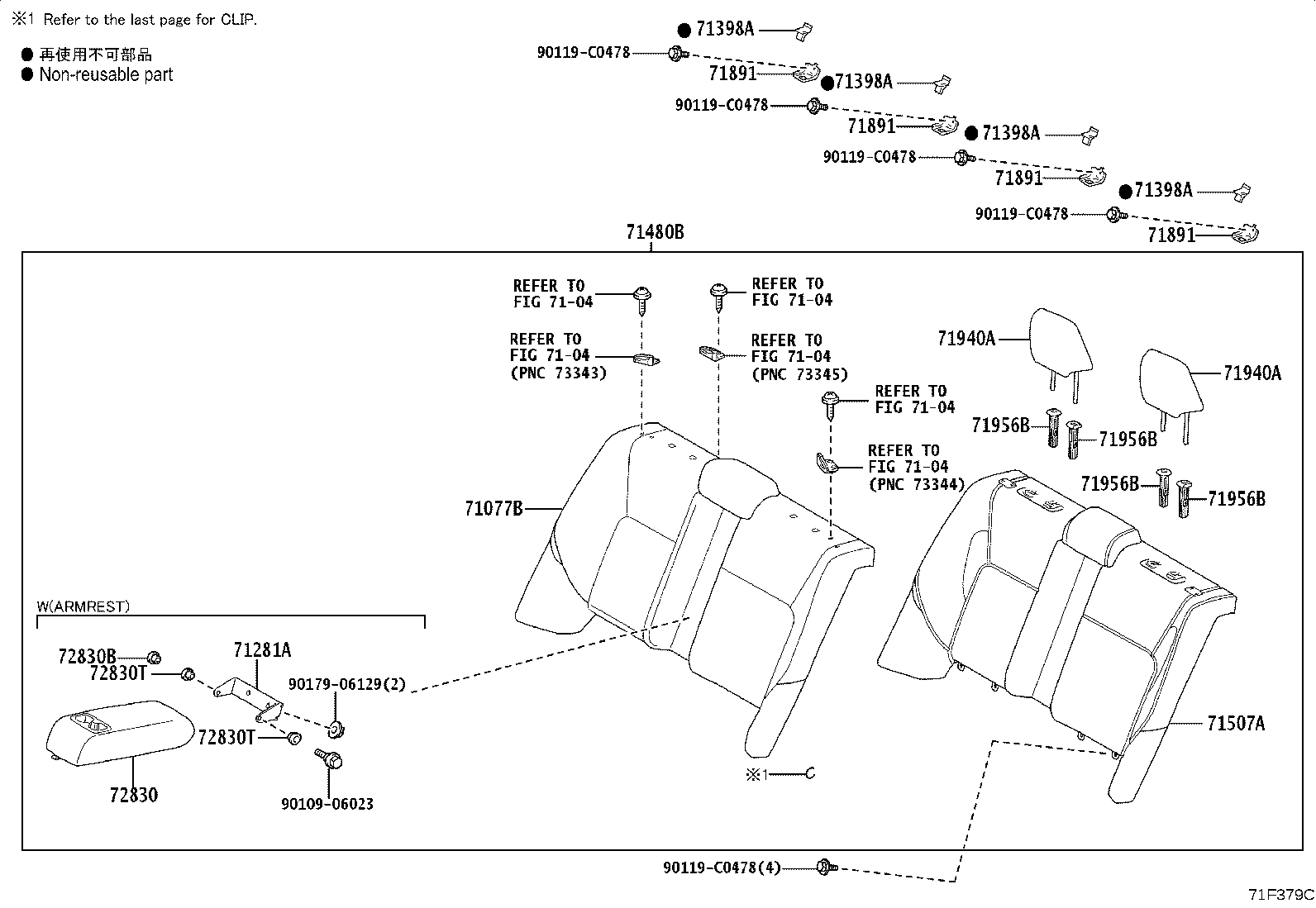

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71077B — Cover, Rear Seatback (FOR BENCH TYPE) | ||||
| 71077-03070-A0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71077-03070-A0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71077-03070-B0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71077-03070-B0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71077-03090-C0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71077-03090-C0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71077-03110-B4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71077-03190-A0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71077-03190-A0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71077-03190-B0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71077-03190-B0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71077-03110-B3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71077-03110-B4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71077-03110-C3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71077-03110-E3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71077-03110-E4 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71077-03120-C1 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-04 → —
|
BEAM10 M | — | |
| 71077-03120-C1 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 M | — | |
| 71077-03130-A0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71077-03130-A0 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71077-03130-B2 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71077-03130-B2 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71077-03130-B3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71077-03130-B3 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71077-03130-C2 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71077-03130-C2 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71077-03130-E2 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 M,N | — | |
| 71077-03130-E2 note |
Cover, Rear Seatback (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 J | — | |
| 71281A — Hinge, Rear Seat Center Armrest | ||||
| 71281-03010 |
Hinge, Rear Seat Center Armrest
2024-07 → —
|
BEJG10 H,J | — | |
| 71281-03010 note |
Hinge, Rear Seat Center Armrest
2024-07 → —
|
BEJG10 M,N | — | |
| 71281-03010 note |
Hinge, Rear Seat Center Armrest
2024-07 → —
|
BEJG10 M,N | — | |
| 71281-03010 |
Hinge, Rear Seat Center Armrest
2023-01 → —
|
BEAM10 J | — | |
| 71281-03010 note |
Hinge, Rear Seat Center Armrest
2023-01 → —
|
BEAM10 M | — | |
| 71281-03010 note |
Hinge, Rear Seat Center Armrest
2023-01 → —
|
BEAM10 M,N | — | |
| 71281-03010 note |
Hinge, Rear Seat Center Armrest
2024-04 → —
|
BEAM10 M | — | |
| 71398A — Holder, Rear Seatback | ||||
| 71398-33010 |
Holder, Rear Seatback
2024-07 → —
|
BEJG10 | — | |
| 71398-33010 |
Holder, Rear Seatback
2023-01 → —
|
BEAM10 | — | |
| 71480B — Back Assy, Rear Seat (FOR BENCH TYPE) | ||||
| 71480-03070-C5 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71480-03150-A1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71480-03150-A1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71480-03150-C1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71480-03150-C1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71480-03160-A1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71480-03160-A1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71480-03160-C1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71480-03160-C1 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71480-03170-C0 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71480-03170-C0 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71480-03070-B4 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71480-03070-C4 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71480-03070-C5 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71480-03070-E4 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71480-03070-E5 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71480-03080-A0 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71480-03080-A0 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71480-03080-B3 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71480-03080-B3 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71480-03080-C3 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71480-03080-C3 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71480-03080-C4 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71480-03080-C4 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71480-03080-E3 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71480-03080-E3 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71480-03080-E4 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71480-03080-E4 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71480-03090-C2 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 M | — | |
| 71480-03090-C2 note |
Back Assy, Rear Seat (FOR BENCH TYPE)
2024-04 → —
|
BEAM10 M | — | |
| 71507A — Pad Sub-assy, Rear Seatback | ||||
| 71507-03010 |
Pad Sub-assy, Rear Seatback
2024-07 → —
|
BEJG10 H,J | — | |
| 71507-03010 note |
Pad Sub-assy, Rear Seatback
2024-07 → —
|
BEJG10 M,N | — | |
| 71507-03010 note |
Pad Sub-assy, Rear Seatback
2024-07 → —
|
BEJG10 M,N | — | |
| 71507-03020 |
Pad Sub-assy, Rear Seatback
2024-07 → —
|
BEJG10 M,N | — | |
| 71507-03010 note |
Pad Sub-assy, Rear Seatback
2024-04 → —
|
BEAM10 M | — | |
| 71507-03010 note |
Pad Sub-assy, Rear Seatback
2023-01 → —
|
BEAM10 M | — | |
| 71507-03010 note |
Pad Sub-assy, Rear Seatback
2023-01 → —
|
BEAM10 M,N | — | |
| 71507-03010 |
Pad Sub-assy, Rear Seatback
2023-01 → —
|
BEAM10 J | — | |
| 71507-03020 |
Pad Sub-assy, Rear Seatback
2023-01 → —
|
BEAM10 M,N | — | |
| 71891 — Bracket, Rear Seatback Set, NO.1 | ||||
| 71891-02110 |
Bracket, Rear Seatback Set, NO.1
2024-07 → —
|
BEJG10 | — | |
| 71891-02110 |
Bracket, Rear Seatback Set, NO.1
2023-01 → —
|
BEAM10 | — | |
| 71940A — Headrest Assy, Rear Seat | ||||
| 71940-03030-B3 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 M | — | |
| 71940-03030-B3 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 N | — | |
| 71940-03030-C2 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 M | — | |
| 71940-03040-A0 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 H,J | — | |
| 71940-03040-A0 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 71940-03040-B2 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 H,J | — | |
| 71940-03040-B2 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 71940-03070-A0 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 H,J | — | |
| 71940-03070-A0 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 71940-03070-B0 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 71940-03070-B0 note |
Headrest Assy, Rear Seat
2024-07 → —
|
BEJG10 H,J | — | |
| 71940-03030-B2 note |
Headrest Assy, Rear Seat
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71940-03030-B3 note |
Headrest Assy, Rear Seat
2024-01 → —
|
BEAM10 M,N | — | |
| 71940-03030-C2 note |
Headrest Assy, Rear Seat
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71940-03030-C2 note |
Headrest Assy, Rear Seat
2024-01 → —
|
BEAM10 M,N | — | |
| 71940-03030-E2 note |
Headrest Assy, Rear Seat
2023-01 → —
|
BEAM10 M,N | — | |
| 71940-03040-A0 note |
Headrest Assy, Rear Seat
2024-01 → —
|
BEAM10 M,N | — | |
| 71940-03040-A0 note |
Headrest Assy, Rear Seat
2024-01 → —
|
BEAM10 J | — | |
| 71940-03040-B1 note |
Headrest Assy, Rear Seat
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71940-03040-B1 note |
Headrest Assy, Rear Seat
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71940-03040-B2 note |
Headrest Assy, Rear Seat
2024-01 → —
|
BEAM10 J | — | |
| 71940-03040-B2 note |
Headrest Assy, Rear Seat
2024-01 → —
|
BEAM10 M,N | — | |
| 71940-03040-C1 note |
Headrest Assy, Rear Seat
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71940-03040-C1 note |
Headrest Assy, Rear Seat
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71940-03040-E1 note |
Headrest Assy, Rear Seat
2023-01 → —
|
BEAM10 M,N | — | |
| 71940-03040-E1 note |
Headrest Assy, Rear Seat
2023-01 → —
|
BEAM10 J | — | |
| 71956B — Support, Rear Seat Headrest | ||||
| 71930-06070-C0 note |
Support, Rear Seat Headrest
2024-07 → —
|
BEJG10 | — | |
| 71931-06060-C0 note |
Support, Rear Seat Headrest
2024-07 → —
|
BEJG10 | — | |
| 71930-06070-C0 note |
Support, Rear Seat Headrest
2023-01 → —
|
BEAM10 | — | |
| 71931-06060-C0 note |
Support, Rear Seat Headrest
2023-01 → —
|
BEAM10 | — | |
| 72830 — Armrest Assy, Rear Seat, Center | ||||
| 72830-03040-A1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 M,N | — | |
| 72830-03040-A1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 H,J | — | |
| 72830-03040-B1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 M,N | — | |
| 72830-03040-B1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 H,J | — | |
| 72830-03080-A1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 H,J | — | |
| 72830-03080-A1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 M,N | — | |
| 72830-03080-B1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 H,J | — | |
| 72830-03080-B1 note |
Armrest Assy, Rear Seat, Center
2024-07 → —
|
BEJG10 M,N | — | |
| 72830-03050-A0 note |
Armrest Assy, Rear Seat, Center
2024-01 → —
|
BEAM10 M,N | — | |
| 72830-03050-A0 note |
Armrest Assy, Rear Seat, Center
2024-01 → —
|
BEAM10 J | — | |
| 72830-03050-B2 note |
Armrest Assy, Rear Seat, Center
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 72830-03050-B2 note |
Armrest Assy, Rear Seat, Center
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 72830-03050-B3 note |
Armrest Assy, Rear Seat, Center
2024-01 → —
|
BEAM10 M,N | — | |
| 72830-03050-B3 note |
Armrest Assy, Rear Seat, Center
2024-01 → —
|
BEAM10 J | — | |
| 72830-03050-C2 note |
Armrest Assy, Rear Seat, Center
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 72830-03050-C2 note |
Armrest Assy, Rear Seat, Center
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 72830-03050-E2 note |
Armrest Assy, Rear Seat, Center
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 72830-03050-E2 note |
Armrest Assy, Rear Seat, Center
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 72830-03050-E3 note |
Armrest Assy, Rear Seat, Center
2024-01 → —
|
BEAM10 J | — | |
| 72830-03050-E3 note |
Armrest Assy, Rear Seat, Center
2024-01 → —
|
BEAM10 M,N | — | |
| 72830-03060-C2 note |
Armrest Assy, Rear Seat, Center
2024-04 → —
|
BEAM10 M | — | |
| 72830-03060-C2 note |
Armrest Assy, Rear Seat, Center
2023-01 → —
|
BEAM10 M | — | |
| 72830B — Bush(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06011 |
Bush(FOR REAR SEAT CENTER ARMREST)
2024-07 → —
|
BEJG10 H,J | — | |
| 90386-06011 note |
Bush(FOR REAR SEAT CENTER ARMREST)
2024-07 → —
|
BEJG10 M,N | — | |
| 90386-06011 note |
Bush(FOR REAR SEAT CENTER ARMREST)
2024-07 → —
|
BEJG10 M,N | — | |
| 90386-06011 |
Bush(FOR REAR SEAT CENTER ARMREST)
2023-01 → —
|
BEAM10 J | — | |
| 90386-06011 note |
Bush(FOR REAR SEAT CENTER ARMREST)
2024-04 → —
|
BEAM10 M | — | |
| 90386-06011 note |
Bush(FOR REAR SEAT CENTER ARMREST)
2023-01 → —
|
BEAM10 M,N | — | |
| 90386-06011 note |
Bush(FOR REAR SEAT CENTER ARMREST)
2023-01 → —
|
BEAM10 M | — | |
| 72830T — Bush (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
Bush (FOR REAR SEAT CENTER ARMREST)
2024-07 → —
|
BEJG10 H,J | — | |
| 90386-08077 note |
Bush (FOR REAR SEAT CENTER ARMREST)
2024-07 → —
|
BEJG10 M,N | — | |
| 90386-08077 note |
Bush (FOR REAR SEAT CENTER ARMREST)
2024-07 → —
|
BEJG10 M,N | — | |
| 90386-08077 |
Bush (FOR REAR SEAT CENTER ARMREST)
2023-01 → —
|
BEAM10 J | — | |
| 90386-08077 note |
Bush (FOR REAR SEAT CENTER ARMREST)
2023-01 → —
|
BEAM10 M | — | |
| 90386-08077 note |
Bush (FOR REAR SEAT CENTER ARMREST)
2023-01 → —
|
BEAM10 M,N | — | |
| 90386-08077 note |
Bush (FOR REAR SEAT CENTER ARMREST)
2024-04 → —
|
BEAM10 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
