Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

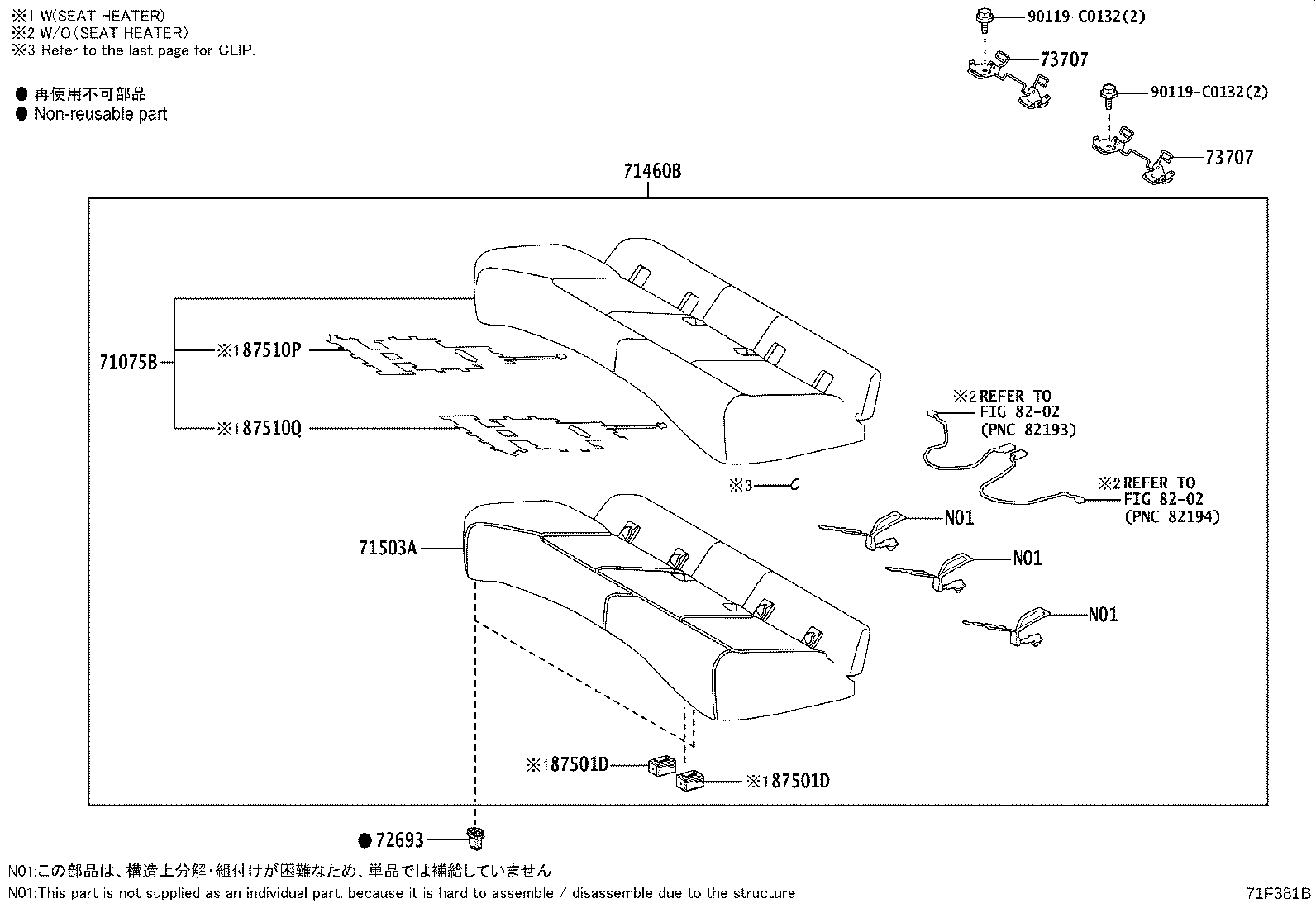

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE) | ||||
| 71075-03130-C2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71075-03130-C2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71075-03130-C3 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71075-03130-C3 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71075-03140-C2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71075-03140-C2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71075-03140-C3 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71075-03140-C3 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71075-03150-B0 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71075-03150-B0 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 N | — | |
| 71075-03150-C0 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71075-03080-B5 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71075-03080-B6 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71075-03080-C5 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71075-03080-C5 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71075-03080-E5 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 M,N | — | |
| 71075-03090-A0 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71075-03090-A0 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71075-03090-B2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71075-03090-B2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71075-03090-B3 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71075-03090-B3 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71075-03090-C2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71075-03090-C2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71075-03090-E2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 M,N | — | |
| 71075-03090-E2 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 J | — | |
| 71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE) | ||||
| 71460-03120-A1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71460-03120-A1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71460-03120-C1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71460-03120-C1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71460-03130-A1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71460-03130-A1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71460-03130-C1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71460-03130-C1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 H,J | — | |
| 71460-03140-C0 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M,N | — | |
| 71460-03140-C1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71460-03140-C1 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-07 → —
|
BEJG10 M | — | |
| 71460-03060-B6 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71460-03060-C6 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71460-03060-C6 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-04 → —
|
BEAM10 M | — | |
| 71460-03060-C6 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M | — | |
| 71460-03060-C7 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71460-03060-E6 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 M,N | — | |
| 71460-03070-A0 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71460-03070-A0 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71460-03070-B3 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71460-03070-B3 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71460-03070-C3 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 M,N | — | |
| 71460-03070-C3 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → 2024-01
ended
|
BEAM10 J | — | |
| 71460-03070-C4 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 J | — | |
| 71460-03070-C4 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2024-01 → —
|
BEAM10 M,N | — | |
| 71460-03070-E3 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 J | — | |
| 71460-03070-E3 note |
Cushion Assy, Rear Seat (FOR BENCH TYPE)
2023-01 → —
|
BEAM10 M,N | — | |
| 71503A — Pad Sub-assy, Rear Seat Cushion | ||||
| 71503-03010 |
Pad Sub-assy, Rear Seat Cushion
2024-07 → —
|
BEJG10 | — | |
| 71503-03010 |
Pad Sub-assy, Rear Seat Cushion
2023-01 → —
|
BEAM10 | — | |
| 72693 — Hook, Rear Seat Cushion Lock | ||||
| 72693-02030 note |
Hook, Rear Seat Cushion Lock
2024-07 → —
|
BEJG10 | — | |
| 72693-12080 note |
Hook, Rear Seat Cushion Lock
2024-07 → —
|
BEJG10 | — | |
| 72693-12080 |
Hook, Rear Seat Cushion Lock
2023-01 → —
|
BEAM10 | — | |
| 73707 — Bracket Sub-assy, Child Restraint Seat Anchor, Inner | ||||
| 73705-03010 |
Bracket Sub-assy, Child Restraint Seat Anchor, Inner
2024-07 → —
|
BEJG10 | — | |
| 73705-03010 |
Bracket Sub-assy, Child Restraint Seat Anchor, Inner
2023-01 → —
|
BEAM10 | — | |
| 87501D — Control Sub-assy, Seat Heater | ||||
| 87501-0R070 |
Control Sub-assy, Seat Heater
2024-07 → —
|
BEJG10 H,J | — | |
| 87501-0R070 note |
Control Sub-assy, Seat Heater
2024-07 → —
|
BEJG10 M,N | — | |
| 87501-0R070 note |
Control Sub-assy, Seat Heater
2024-07 → —
|
BEJG10 M,N | — | |
| 87501-0R070 |
Control Sub-assy, Seat Heater
2023-01 → —
|
BEAM10 J | — | |
| 87501-0R070 note |
Control Sub-assy, Seat Heater
2023-01 → —
|
BEAM10 M,N | — | |
| 87510P — Heater Assy, Seat | ||||
| 87510-03020 note |
Heater Assy, Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 87510-03020 note |
Heater Assy, Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 87510-03020 |
Heater Assy, Seat
2024-07 → —
|
BEJG10 H,J | — | |
| 87510-03020 |
Heater Assy, Seat
2023-01 → —
|
BEAM10 J | — | |
| 87510-03020 note |
Heater Assy, Seat
2023-01 → —
|
BEAM10 M,N | — | |
| 87510Q — Heater Assy, Seat | ||||
| 87510-03030 |
Heater Assy, Seat
2024-07 → —
|
BEJG10 H,J | — | |
| 87510-03030 note |
Heater Assy, Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 87510-03030 note |
Heater Assy, Seat
2024-07 → —
|
BEJG10 M,N | — | |
| 87510-03030 |
Heater Assy, Seat
2023-01 → —
|
BEAM10 J | — | |
| 87510-03030 note |
Heater Assy, Seat
2023-01 → —
|
BEAM10 M,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
