Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

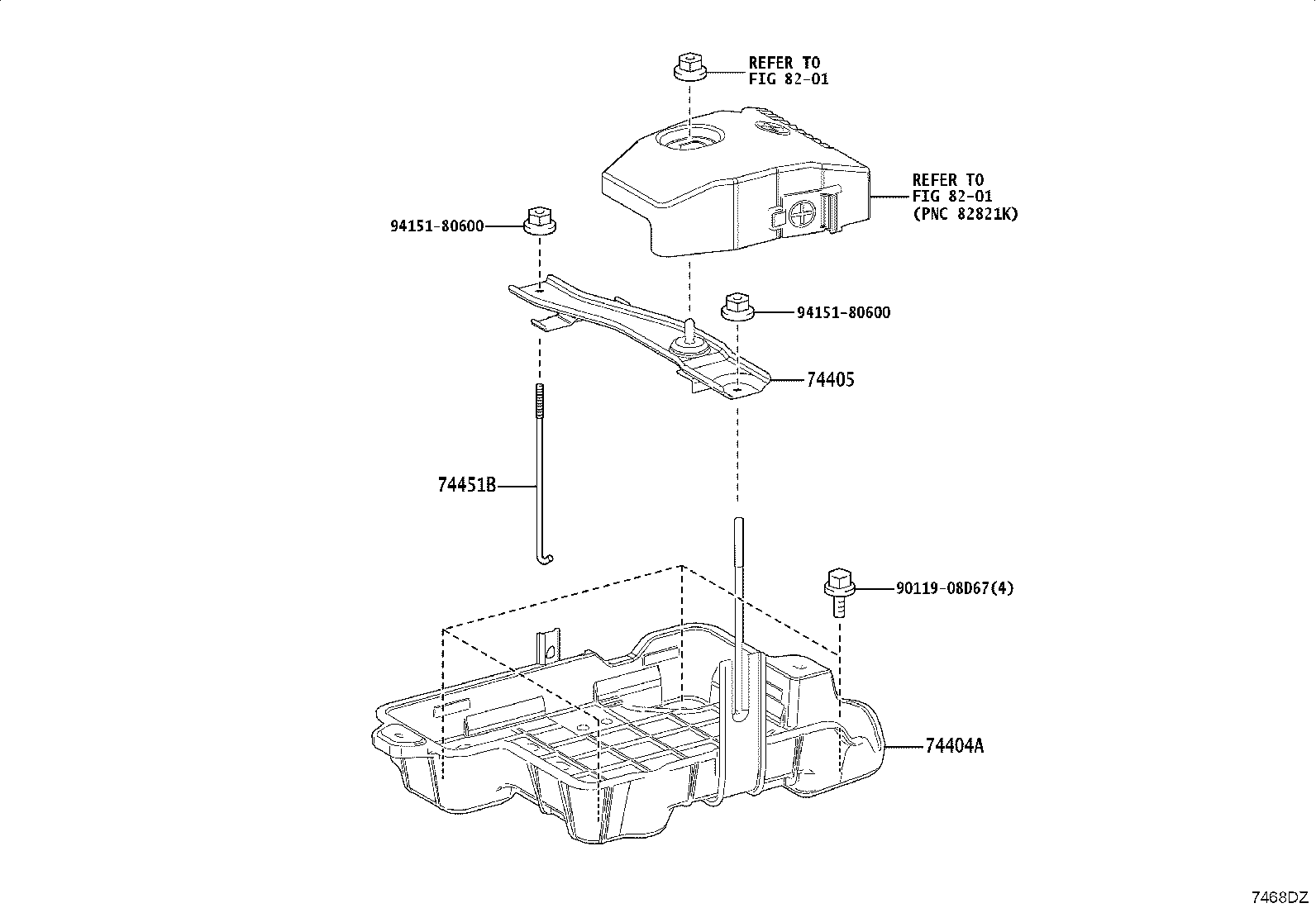

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-03020 |
Clamp Sub-assy, Battery
2024-07 → 2024-11
ended
|
BEJG10 | — | |
| 74404-03040 |
Clamp Sub-assy, Battery
2024-12 → —
|
BEJG10 | — | |
| 74404-03020 |
Clamp Sub-assy, Battery
2023-01 → —
|
BEAM10 | — | |
| 74405 — Clamp Sub-assy, Battery, NO.2 | ||||
| 74405-03020 |
Clamp Sub-assy, Battery, NO.2
2024-07 → 2024-11
ended
|
BEJG10 | — | |
| 74405-03040 |
Clamp Sub-assy, Battery, NO.2
2024-12 → —
|
BEJG10 | — | |
| 74405-03020 |
Clamp Sub-assy, Battery, NO.2
2023-01 → —
|
BEAM10 | — | |
| 74451B — Bolt, Battery Clamp | ||||
| 74451-03020 |
Bolt, Battery Clamp
2024-07 → —
|
BEJG10 | — | |
| 74451-03020 |
Bolt, Battery Clamp
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
