Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

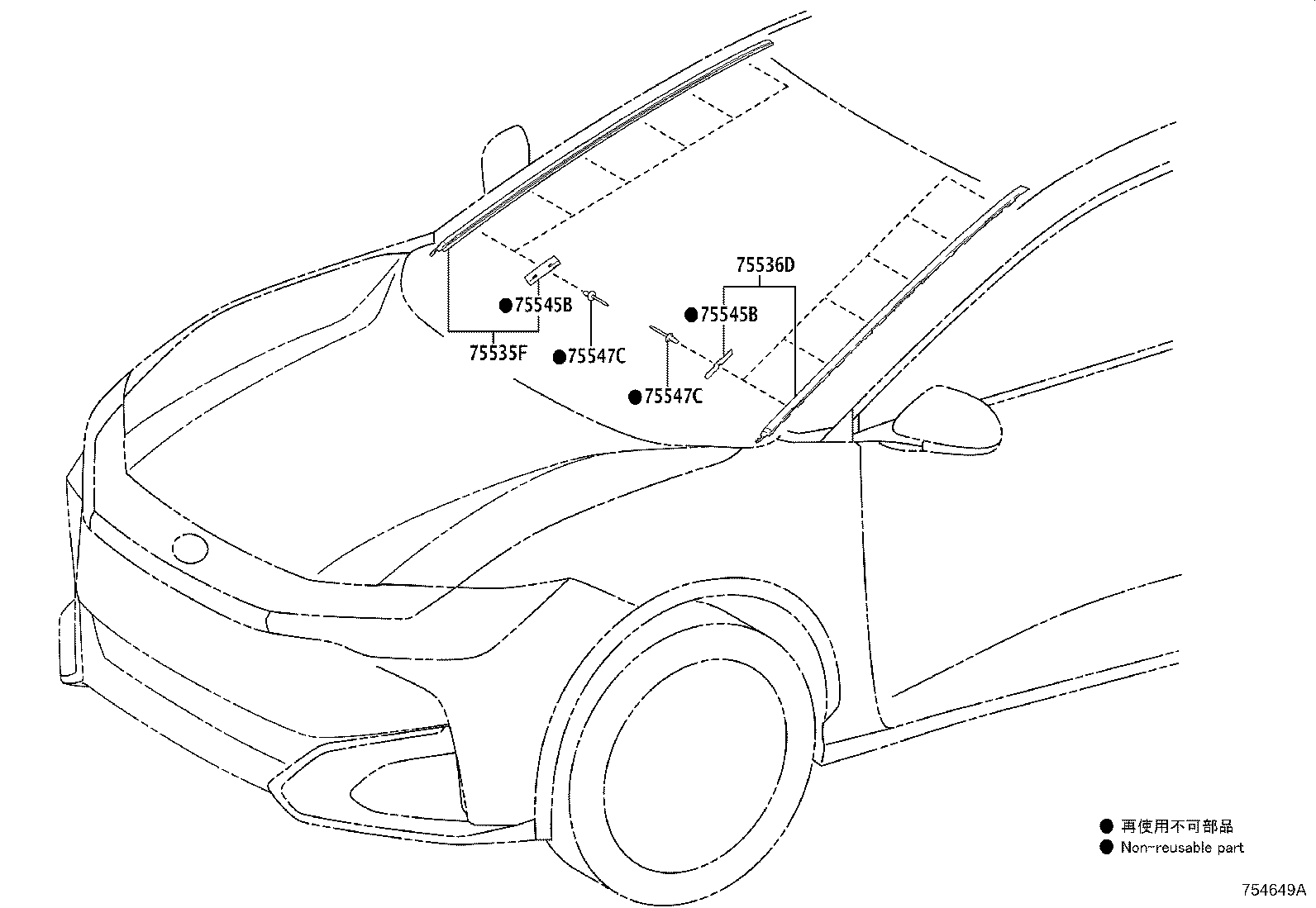

Exploded illustration 754649A 75547C — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 (3 parts) 75547C — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 (3 parts) 75545B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 (2 parts) 75535F — MOULDING, WINDSHIELD, OUTSIDE LOWER RH (2 parts) 75545B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 (2 parts) 75536D — MOULDING, WINDSHIELD, OUTSIDE LOWER LH (2 parts)
754649A · 6 callouts Full size ↗
9 parts on this figure
Part number Description Fitment Price
75535F — Moulding, Windshield, Outside Lower RH
75535-03020 Moulding, Windshield, Outside Lower RH
2024-07 → —
BEJG10 —
75535-03020 Moulding, Windshield, Outside Lower RH
2023-01 → —
BEAM10 —
75536D — Moulding, Windshield, Outside Lower LH
75536-03010 Moulding, Windshield, Outside Lower LH
2024-07 → —
BEJG10 —
75536-03010 Moulding, Windshield, Outside Lower LH
2023-01 → —
BEAM10 —
75545B — Clip, Windshield Outside Moulding, NO.1
75545-0E010 Clip, Windshield Outside Moulding, NO.1
2024-07 → —
BEJG10 —
75545-0E010 Clip, Windshield Outside Moulding, NO.1
2023-01 → —
BEAM10 —
75547C — Clip, Windshield Outside Moulding, NO.3
75547-0N010 Clip, Windshield Outside Moulding, NO.3
2024-07 → —
BEJG10 —
75547-0N010 Clip, Windshield Outside Moulding, NO.3
2024-05 → —
BEAM10 —
75547-51021 Clip, Windshield Outside Moulding, NO.3
2023-01 → 2024-05 ended
BEAM10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
