Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

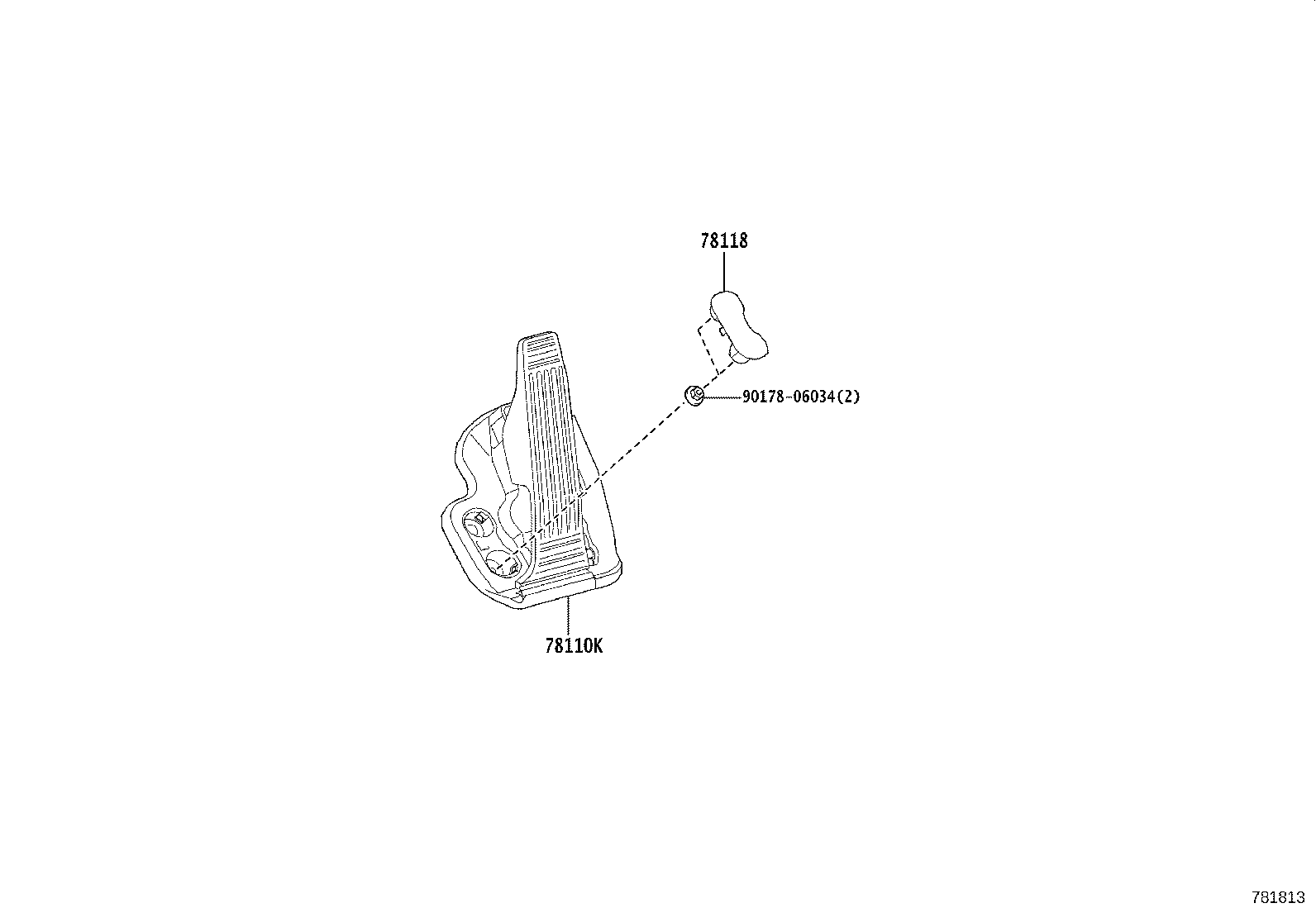

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-0R010 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2024-07 → 2025-04
ended
|
BEJG10 | — | |
| 78110-0R010 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2023-01 → 2025-04
ended
|
BEAM10 | — | |
| 78118 — Pad, Accelerator Pedal | ||||
| 78117-0R010 |
Pad, Accelerator Pedal
2024-07 → 2025-04
ended
|
BEJG10 | — | |
| 78117-0R010 |
Pad, Accelerator Pedal
2023-01 → 2025-04
ended
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
