Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

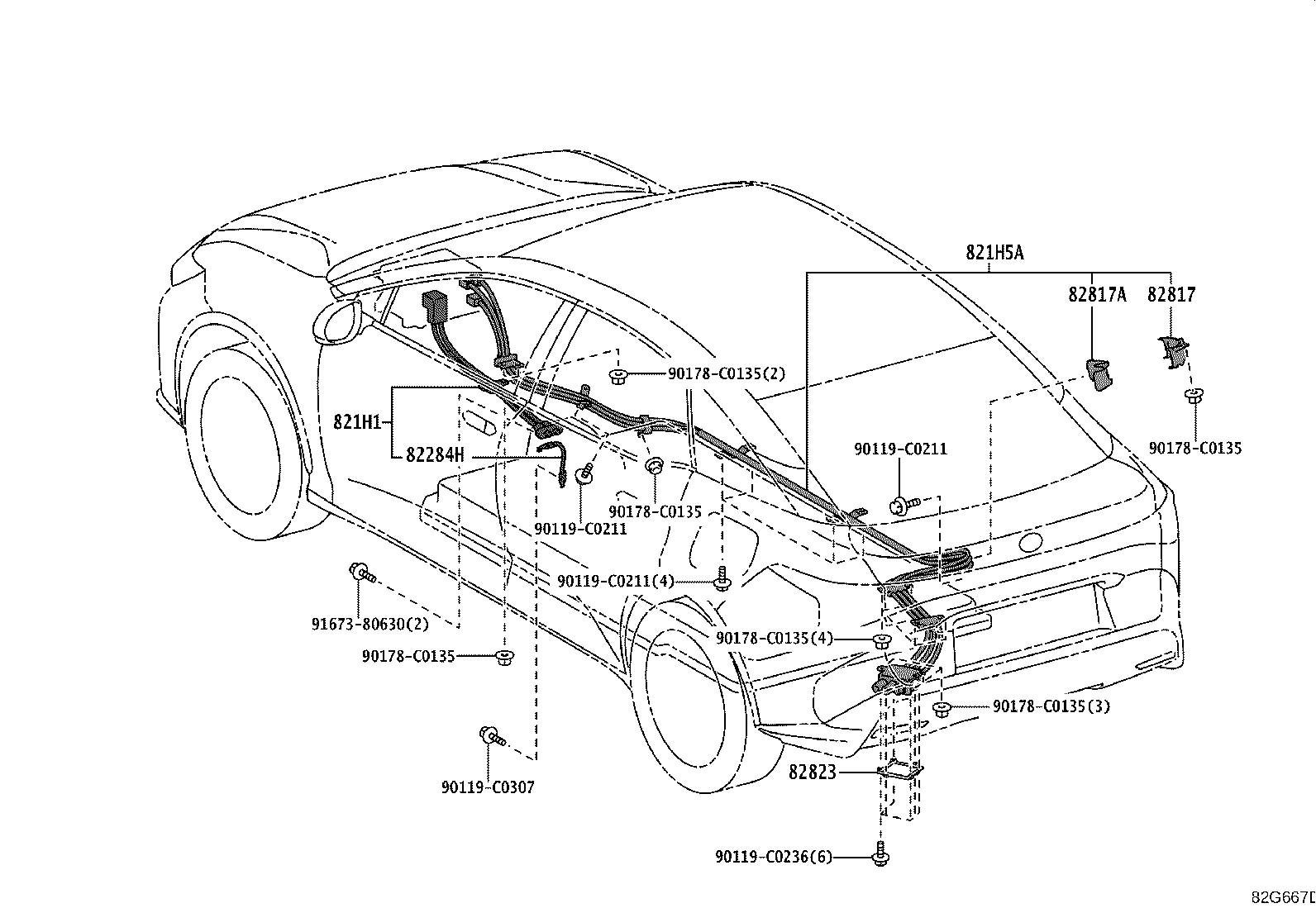

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-03011 |
Wire, Floor Under
2024-07 → —
|
BEJG10 | — | |
| 821H1-03010 |
Wire, Floor Under
2023-01 → —
|
BEAM10 | — | |
| 821H5A — Wire, HV Battery Charger | ||||
| 821H5-03010 |
Wire, HV Battery Charger
2023-01 → 2024-07
ended
|
BEAM10 | — | |
| 82284H — Wire, Earth NO.3 | ||||
| 82284-03020 |
Wire, Earth NO.3
2024-07 → —
|
BEJG10 | — | |
| 82284-03020 |
Wire, Earth NO.3
2023-01 → —
|
BEAM10 | — | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-03040 |
Protector, Wiring Harness, NO.1
2024-07 → —
|
BEJG10 | — | |
| 82817-03040 |
Protector, Wiring Harness, NO.1
2023-01 → —
|
BEAM10 | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-03050 |
Protector, Wiring Harness, NO.2
2024-07 → —
|
BEJG10 | — | |
| 82817-03050 |
Protector, Wiring Harness, NO.2
2023-01 → —
|
BEAM10 | — | |
| 82823 — Cap, Terminal, NO.1 | ||||
| 82823-03010 |
Cap, Terminal, NO.1
2023-01 → 2024-07
ended
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
