Toyota BZ3

2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General

Supported model Data version 2024-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

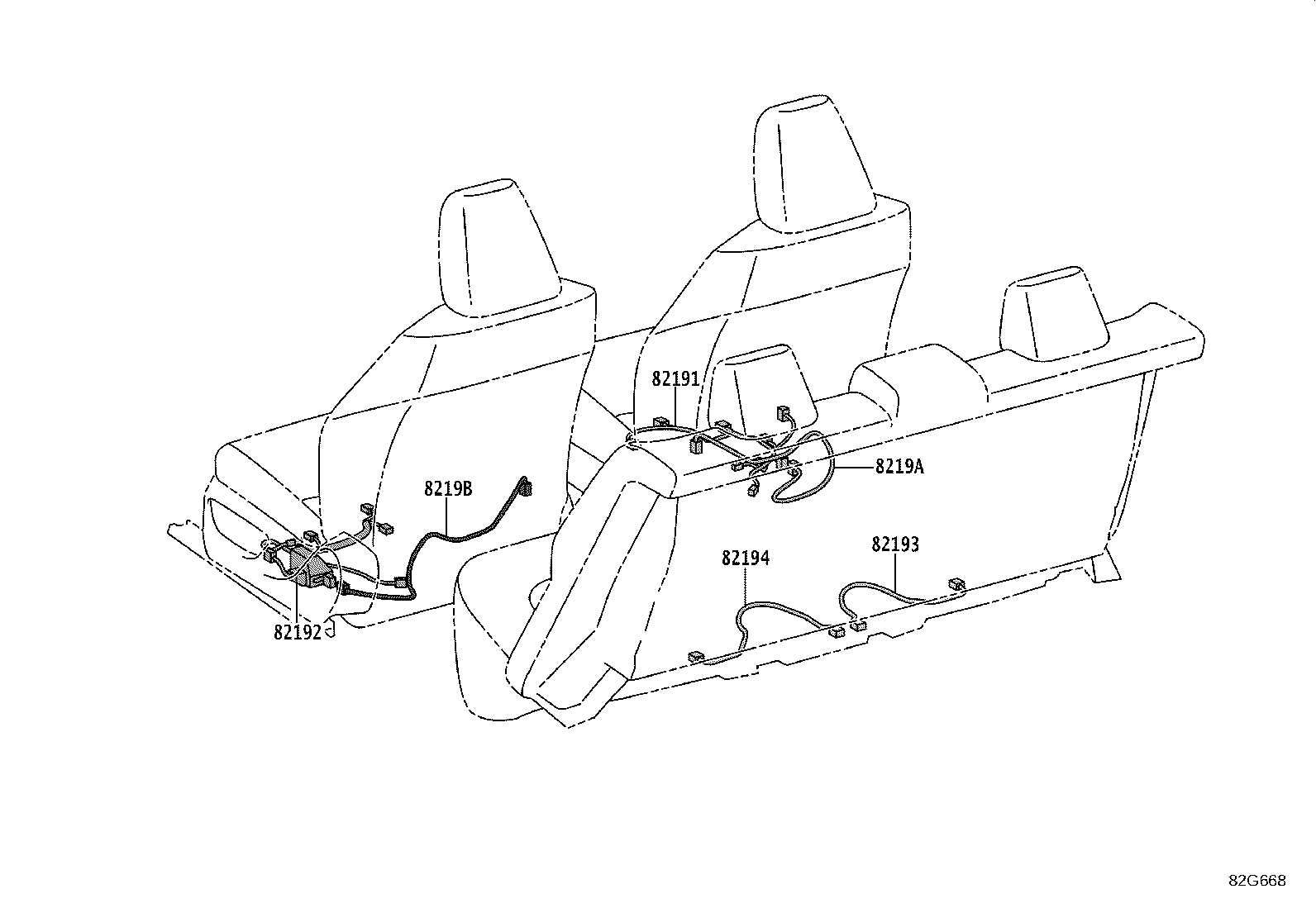

23 parts on this figure

Part number	Description	Fitment	Price
82191 — Wire, Front Seat, RH
82191-0R120 note	Wire, Front Seat, RH 2024-07 → —	BEJG10 M,N	—
82191-0R120 note	Wire, Front Seat, RH 2024-07 → —	BEJG10 M,N	—
82191-0R120	Wire, Front Seat, RH 2024-07 → —	BEJG10 H,J	—
82191-0R120	Wire, Front Seat, RH 2023-01 → —	BEAM10 J	—
82191-0R120 note	Wire, Front Seat, RH 2023-01 → —	BEAM10 M,N	—
82192 — Wire, Front Seat, LH
82192-03010	Wire, Front Seat, LH 2024-07 → —	BEJG10 H,J	—
82192-03010 note	Wire, Front Seat, LH 2024-07 → —	BEJG10 M,N	—
82192-03010 note	Wire, Front Seat, LH 2024-07 → —	BEJG10 M,N	—
82192-0A030	Wire, Front Seat, LH 2024-07 → —	BEJG10 M,N	—
82192-03010	Wire, Front Seat, LH 2023-01 → —	BEAM10 J	—
82192-03010 note	Wire, Front Seat, LH 2023-01 → —	BEAM10 M,N	—
82192-0A030	Wire, Front Seat, LH 2023-01 → —	BEAM10 M,N	—
82193 — Wire, Rear Seat, RH
82193-03010	Wire, Rear Seat, RH 2024-07 → —	BEJG10 M,N	—
82193-03010	Wire, Rear Seat, RH 2023-01 → —	BEAM10 M,N	—
82194 — Wire, Rear Seat, LH
82194-03010	Wire, Rear Seat, LH 2024-07 → —	BEJG10 M,N	—
82194-03010	Wire, Rear Seat, LH 2023-01 → —	BEAM10 M,N	—
8219A — Wire, Front Seat, RH NO.2
8219A-0E190	Wire, Front Seat, RH NO.2 2024-07 → —	BEJG10 H,J	—
8219A-0E190 note	Wire, Front Seat, RH NO.2 2024-07 → —	BEJG10 M,N	—
8219A-0E190 note	Wire, Front Seat, RH NO.2 2024-07 → —	BEJG10 M,N	—
8219A-0E190	Wire, Front Seat, RH NO.2 2023-01 → —	BEAM10 J	—
8219A-0E190 note	Wire, Front Seat, RH NO.2 2023-01 → —	BEAM10 M,N	—
8219B — Wire, Front Seat, LH NO.2
8219B-0E190	Wire, Front Seat, LH NO.2 2024-07 → —	BEJG10	—
8219B-0E190	Wire, Front Seat, LH NO.2 2023-01 → —	BEAM10	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
