Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

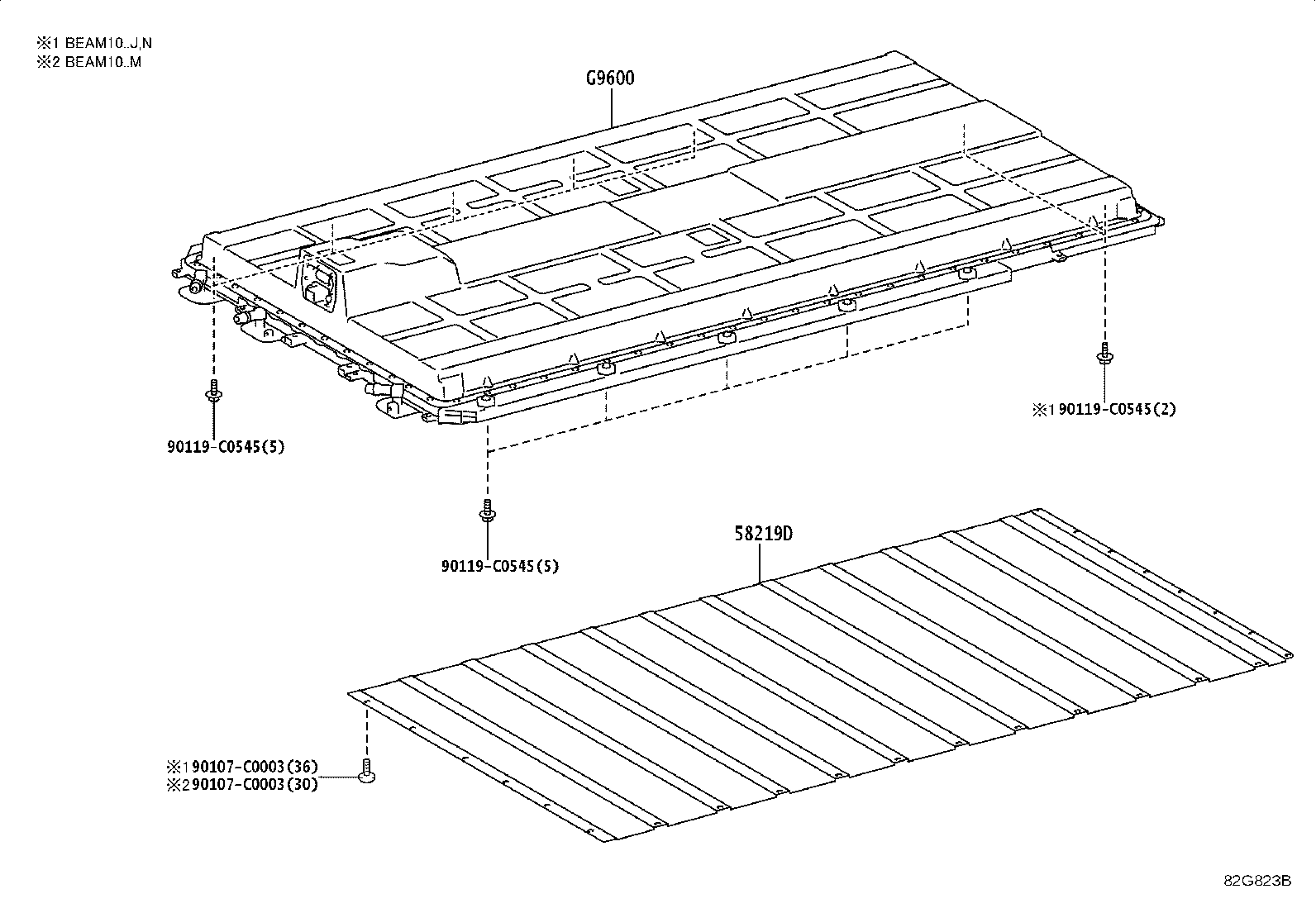

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58219D — Cover, Battery Box | ||||
| 58219-03030 |
Cover, Battery Box
2024-07 → —
|
BEJG10 H,J,N | — | |
| 58219-03040 |
Cover, Battery Box
2024-07 → —
|
BEJG10 M | — | |
| 58219-03010 |
Cover, Battery Box
2023-01 → —
|
BEAM10 J,N | — | |
| 58219-03020 |
Cover, Battery Box
2023-01 → —
|
BEAM10 M | — | |
| G9600 — Battery Assy, Traction | ||||
| G9600-03011 |
Battery Assy, Traction
2024-07 → —
|
BEJG10 H,J,N | — | |
| G9600-03021 |
Battery Assy, Traction
2024-07 → —
|
BEJG10 M | — | |
| G9600-03010 |
Battery Assy, Traction
2023-01 → —
|
BEAM10 J,N | — | |
| G9600-03020 |
Battery Assy, Traction
2023-01 → —
|
BEAM10 M | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
