Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

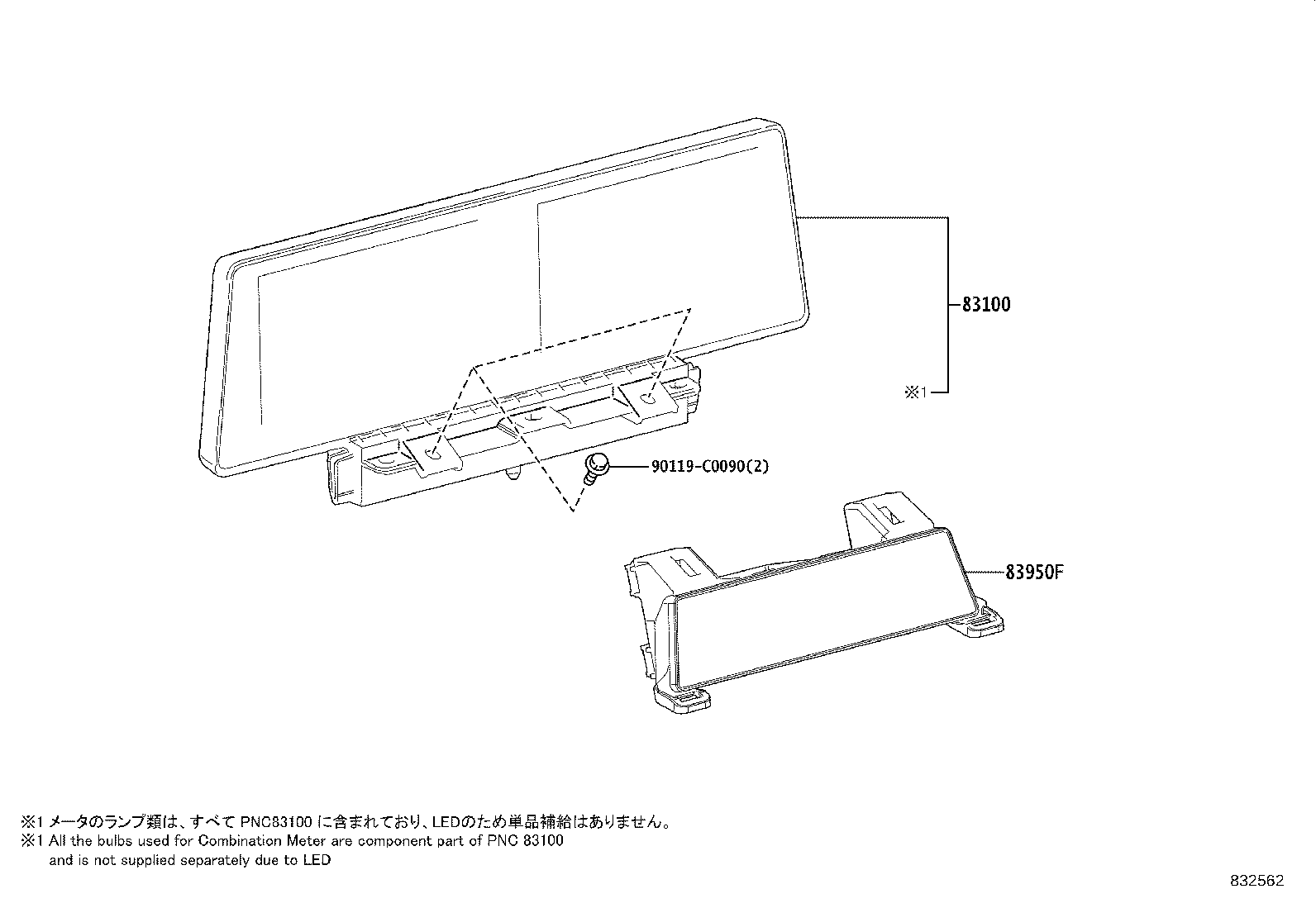

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-03020 |
Meter Assy, Combination
2024-07 → —
|
BEJG10 | — | |
| 83800-03010 |
Meter Assy, Combination
2023-01 → —
|
BEAM10 | — | |
| 83950F — Lamp Assy, Telltale | ||||
| 83950-03020 |
Lamp Assy, Telltale
2024-07 → —
|
BEJG10 | — | |
| 83950-03010 |
Lamp Assy, Telltale
2023-01 → —
|
BEAM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
