Toyota BZ3
2023-01 → present · chassis BEAM10,BEJG10 · catalogue 182310 · General
Supported model
Data version 2024-06

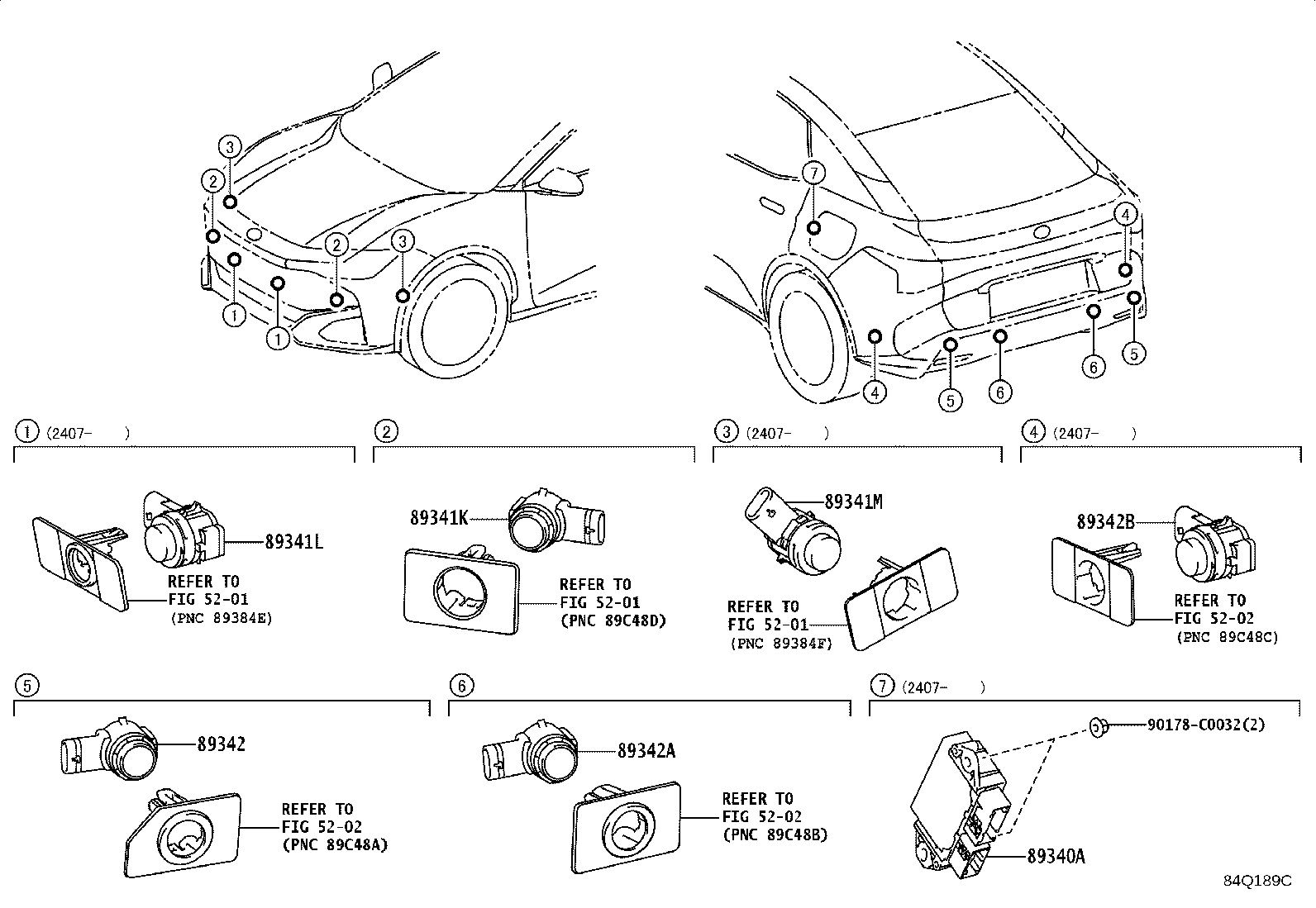

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89340A — Computer Assy, Clearance Warning | ||||
| 89340-03040 |
Computer Assy, Clearance Warning
2024-07 → —
|
BEJG10 H | — | |
| 89341K — Sensor, Ultrasonic, Front Corner | ||||
| 89341-03080-A0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B1 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-C0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-D0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-E0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 H | — | |
| 89341-03090-A0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03090-B0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03090-B1 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03090-C0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03090-D0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03090-E0 note |
Sensor, Ultrasonic, Front Corner
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03010-A0 note |
Sensor, Ultrasonic, Front Corner
2023-01 → —
|
BEAM10 | — | |
| 89341-03010-B0 note |
Sensor, Ultrasonic, Front Corner
2023-01 → —
|
BEAM10 | — | |
| 89341-03010-B1 note |
Sensor, Ultrasonic, Front Corner
2023-01 → —
|
BEAM10 | — | |
| 89341-03010-C0 note |
Sensor, Ultrasonic, Front Corner
2023-01 → —
|
BEAM10 | — | |
| 89341-03010-D0 note |
Sensor, Ultrasonic, Front Corner
2023-01 → —
|
BEAM10 | — | |
| 89341-03010-E0 note |
Sensor, Ultrasonic, Front Corner
2023-01 → —
|
BEAM10 | — | |
| 89341L — Sensor, Ultrasonic, Front Center | ||||
| 89341-03080-A0 note |
Sensor, Ultrasonic, Front Center
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B0 note |
Sensor, Ultrasonic, Front Center
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B1 note |
Sensor, Ultrasonic, Front Center
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-C0 note |
Sensor, Ultrasonic, Front Center
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-D0 note |
Sensor, Ultrasonic, Front Center
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-E0 note |
Sensor, Ultrasonic, Front Center
2024-07 → —
|
BEJG10 H | — | |
| 89341M — Sensor, Ultrasonic, Front Side | ||||
| 89341-03080-A0 note |
Sensor, Ultrasonic, Front Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B0 note |
Sensor, Ultrasonic, Front Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B1 note |
Sensor, Ultrasonic, Front Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-C0 note |
Sensor, Ultrasonic, Front Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-D0 note |
Sensor, Ultrasonic, Front Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-E0 note |
Sensor, Ultrasonic, Front Side
2024-07 → —
|
BEJG10 H | — | |
| 89342 — Sensor, Ultrasonic, Rear Corner | ||||
| 89341-03100 |
Sensor, Ultrasonic, Rear Corner
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03110 |
Sensor, Ultrasonic, Rear Corner
2024-07 → —
|
BEJG10 H | — | |
| 89341-03060 |
Sensor, Ultrasonic, Rear Corner
2023-01 → —
|
BEAM10 | — | |
| 89342A — Sensor, Ultrasonic, Rear Center | ||||
| 89341-03100 |
Sensor, Ultrasonic, Rear Center
2024-07 → —
|
BEJG10 J,M,N | — | |
| 89341-03110 |
Sensor, Ultrasonic, Rear Center
2024-07 → —
|
BEJG10 H | — | |
| 89341-03060 |
Sensor, Ultrasonic, Rear Center
2023-01 → —
|
BEAM10 | — | |
| 89342B — Sensor, Ultrasonic, Rear Side | ||||
| 89341-03080-A0 note |
Sensor, Ultrasonic, Rear Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B0 note |
Sensor, Ultrasonic, Rear Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-B1 note |
Sensor, Ultrasonic, Rear Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-C0 note |
Sensor, Ultrasonic, Rear Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-D0 note |
Sensor, Ultrasonic, Rear Side
2024-07 → —
|
BEJG10 H | — | |
| 89341-03080-E0 note |
Sensor, Ultrasonic, Rear Side
2024-07 → —
|
BEJG10 H | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
